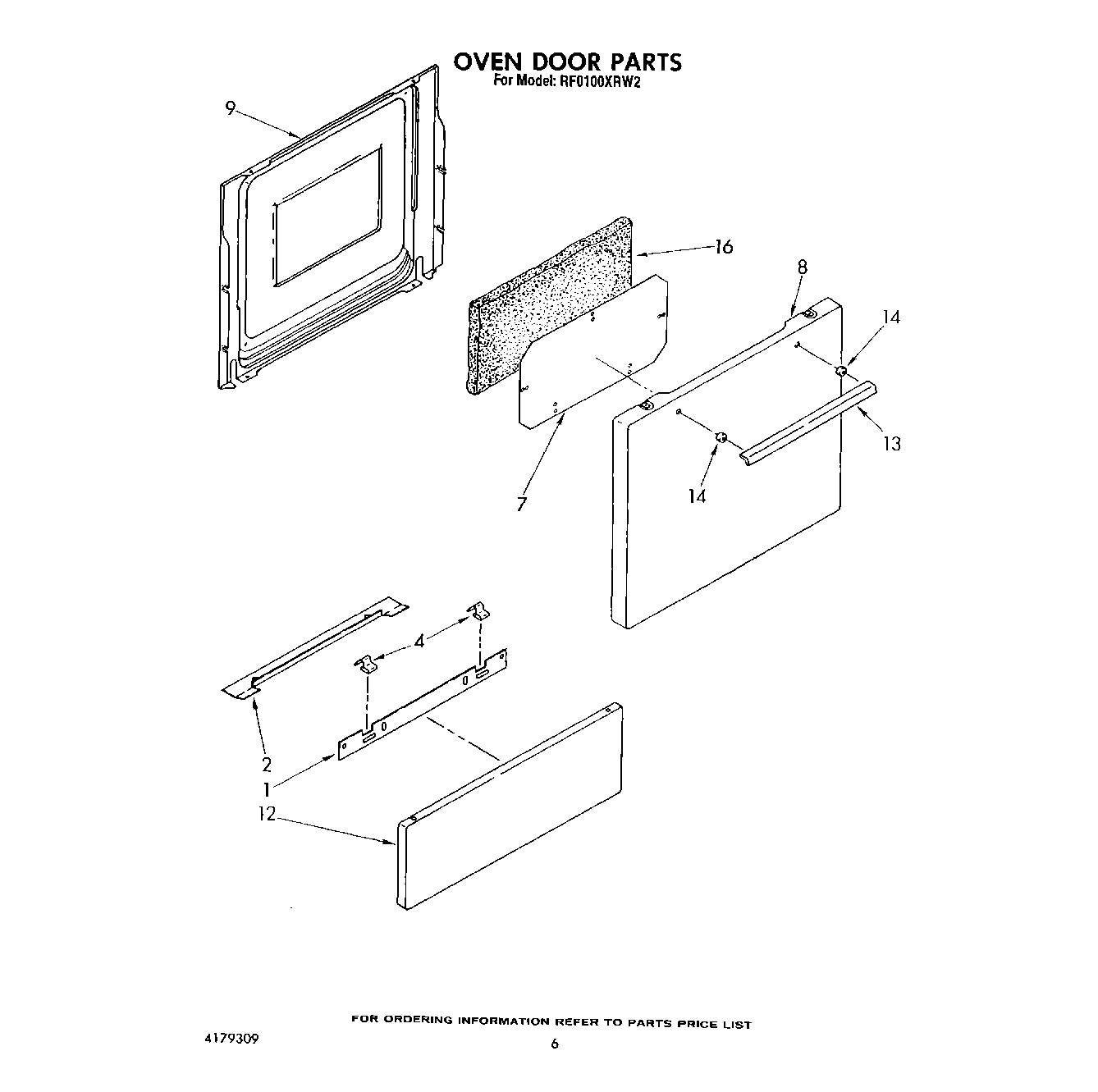

RF0100XRW2 05 – OVEN DOOR

Products

Position	Product
1	Support, Clip
2	Bracket
4	Clip, Broiler
7	Baffle
8	Panel, Door (Platinum)
8	Panel, Door (Toast)
8	Panel, Door (White)
8	Panel, Door (Almond)
9	Liner, Door
12	Panel (White)
12	Panel (Almond)
12	Panel (Toast)
12	Panel (Platinum)
13	Handle, Broiler Door
14	Spacer (4)
16	Insulation
