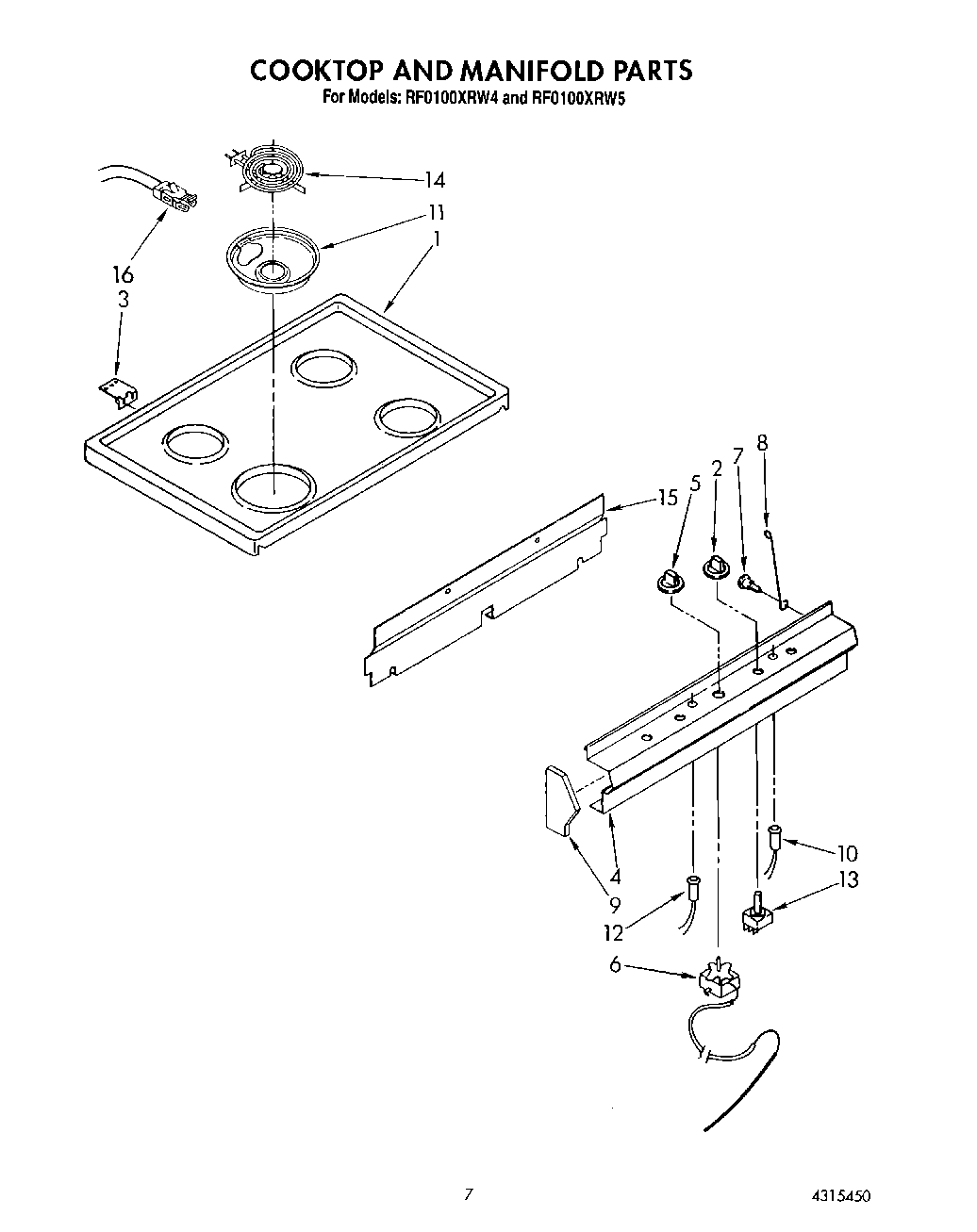

RF0100XRW4 06 – COOKTOP AND MANIFOLD
Written by
in
RF0100XRW4 06 – COOKTOP AND MANIFOLD
Products
Position
Product
1
Cooktop (Almond)
1
Cooktop (White)
2
Knob, Burner (4)
3
Hinge, Maintop (2)
3
WP308685 Whirlpool Microwave Screw
3
Speed Clip (4)
3
SCREW
4
Panel, Manifold
5
Knob, Thermostat
6
Thermostat
7
Screw
8
Rod, Support
9
Endcap (R.H.)
9
Endcap (L.H.)
10
Light, Indicator (Oven)
11
DRIP BOWL 8" W/HOLE CHROME
11
WPW10196406 Whirlpool 6" Chrome Drip Bowl
12
Light, Indicator (Surface Unit)
13
W10900107 Whirlpool Oven Surface Element Switch
14
Unit, Surface (8“)
14
Unit, Surface (6“)
15
Cover, Switch
16
BURNER RECEPTACLE KIT
←
