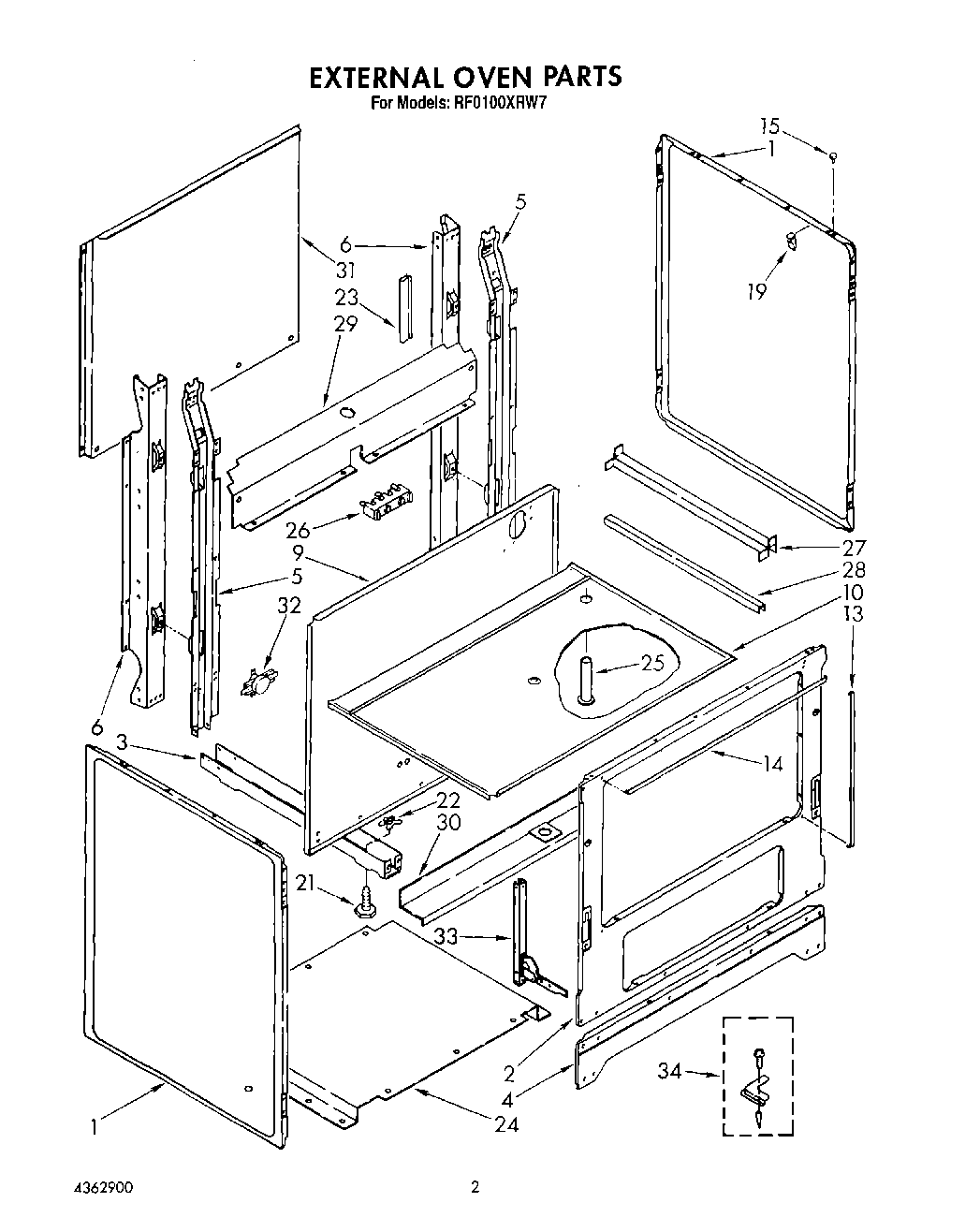

RF0100XRW7 02 – EXTERNAL OVEN

Products

Position	Product
	List, Repair Parts
	Guide, Use & Care
	WPL LIT313358
	Guide, Cooking
1	Panel, Side (2) (Platinum)
1	Panel, Side (2) (White)
1	Panel, Side (2) (Almond)
1	Panel, Side (2) (Toast)
2	Frame, Front
3	Rail, Base (2)
4	Base, Front
4	Screw, 10-12 X 1/2 (4)
5	Screw, 10-32 X 1/2 (1)
5	Support, Main (2)
6	SCREW
6	Support, Rear (2)
9	Panel, Rear
10	Burner Box
10	WP308685 Whirlpool Microwave Screw
13	Seal, Door (2) (Side)
13	Seal, Door (2) (Side)
14	Seal, Door (Top) (Light Gray)
14	Seal, Door (Top) (Charcoal Gray)
15	Bumper, Cooktop (2)
19	Clip, Wire
21	Leg, Leveler (4)
22	Nut (4)
23	Safe Edge
24	Panel, Bottom
25	Tube, Vent
26	WP8203546 Whirlpool Terminal Block
27	Channel, Wire
28	Ignitor (L.H.)
29	Cover, Wire
30	Support
31	Cover, Rear
32	Disc, Thermo
33	Hinge, Door (2)
34	WPW10208653 Whirlpool Insulation
34	FOIL, ALUMINUM OVEN (18“ X 25 )
34	Weight, Counter
34	Bracket
