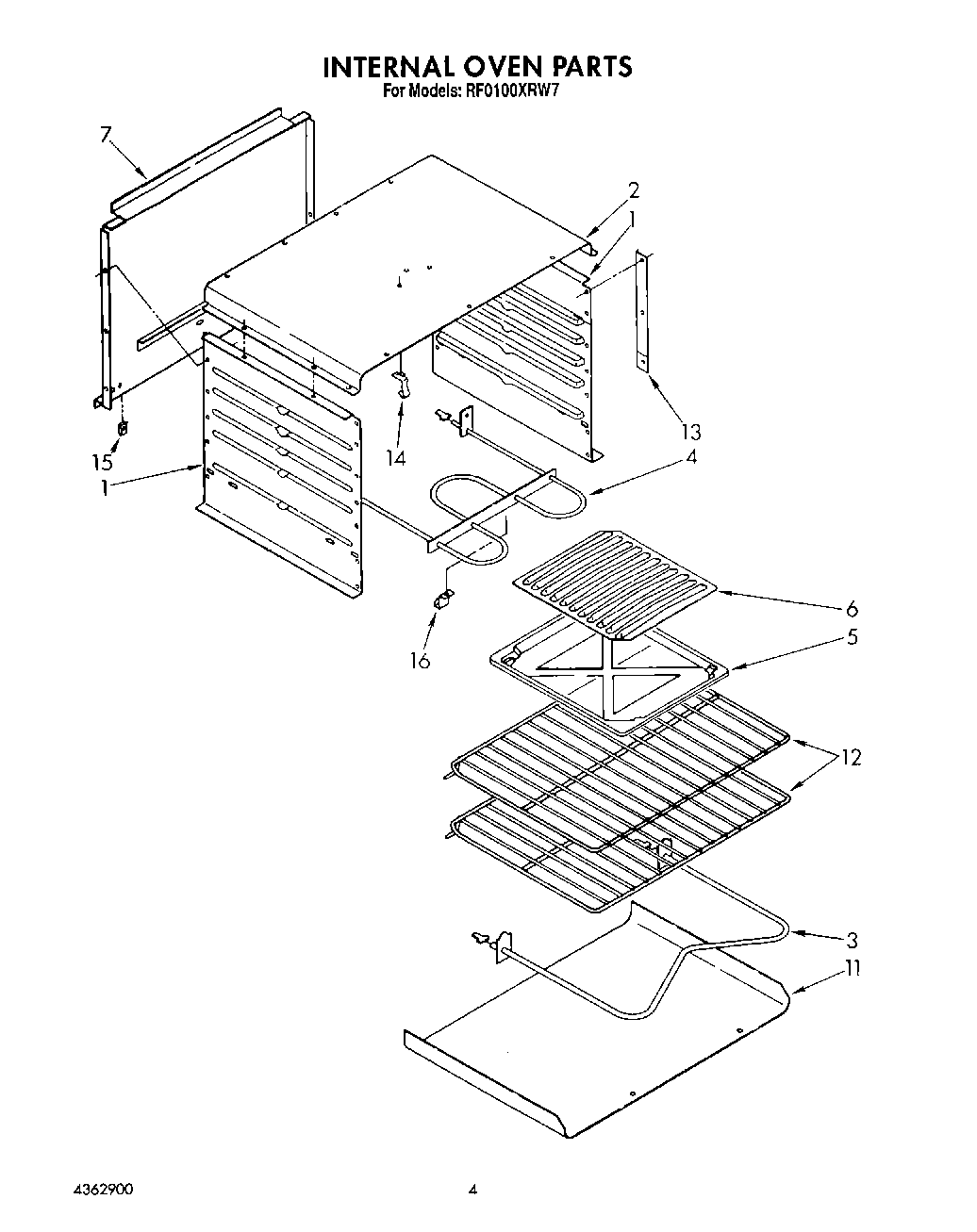

RF0100XRW7 03 – LIT/OPTIONAL

RF0100XRW7 03 – LIT/OPTIONAL

Written by

in

RF0100XRW7 03 – LIT/OPTIONAL

Products

PositionProduct
1Liner, Oven Side (2)
2WP308685 Whirlpool Microwave Screw
2Liner, Oven Top
3WPY07565600 Whirlpool Bake Element
54396923 Whirlpool Broil Pan Set Gray Porcelain
6Grid
7Liner, Oven Back
11Bottom, Oven
12Rack, Oven
13Support, Liner (2)
1498005642 Whirlpool Clip
15Clip, Speed
16Support, Element
