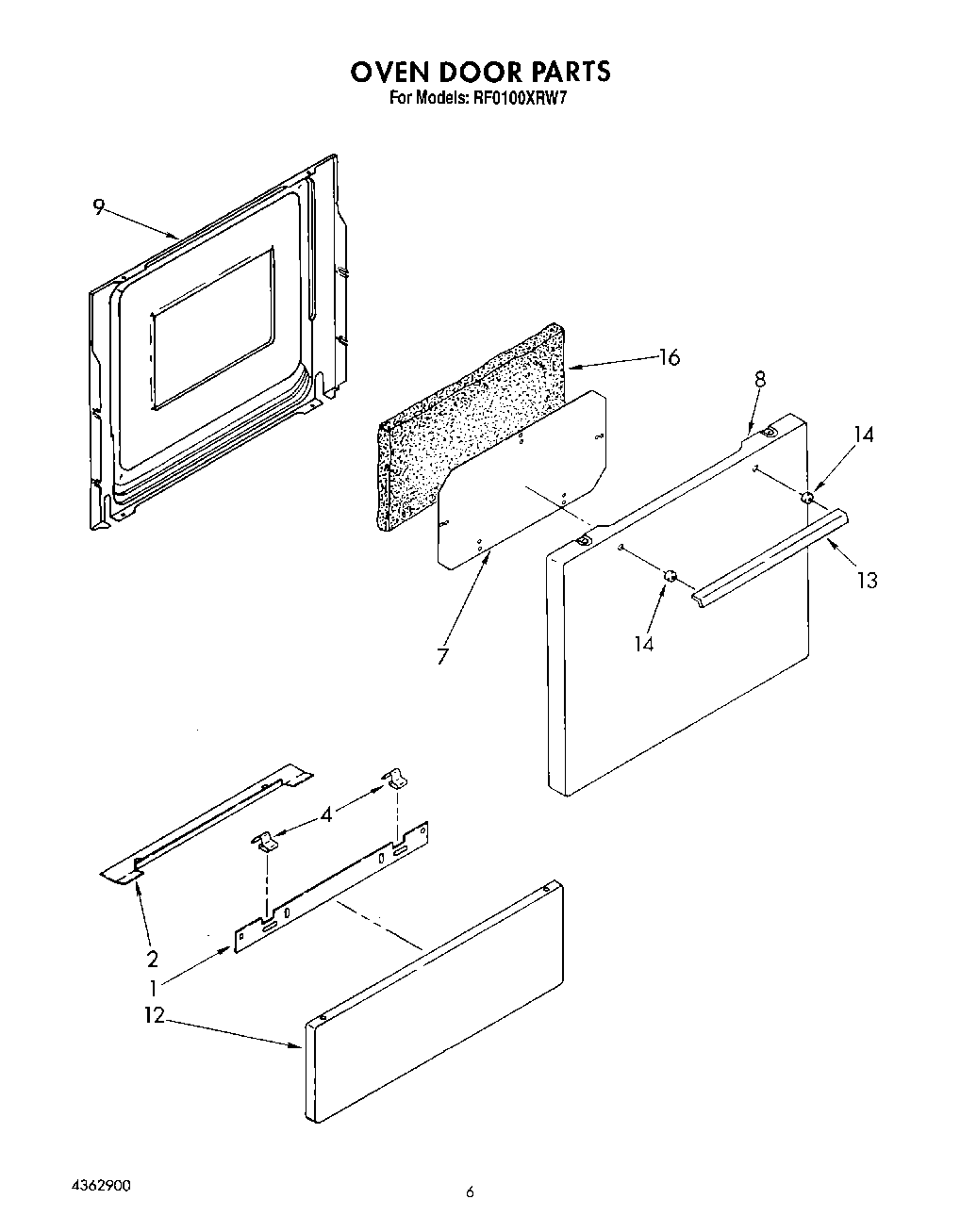

RF0100XRW7 05 – OVEN DOOR
Products
| Position | Product |
|---|---|
| 1 | Support, Clip |
| 2 | Bracket |
| 4 | Clip, Broiler |
| 7 | Baffle |
| 8 | Panel, Door (Almond) |
| 8 | Panel, Door (White) |
| 9 | Liner, Door |
| 12 | Panel (White) |
| 12 | Panel (Almond) |
| 13 | Handle, Broiler Door |
| 14 | Spacer (4) |
| 16 | Insulation |
