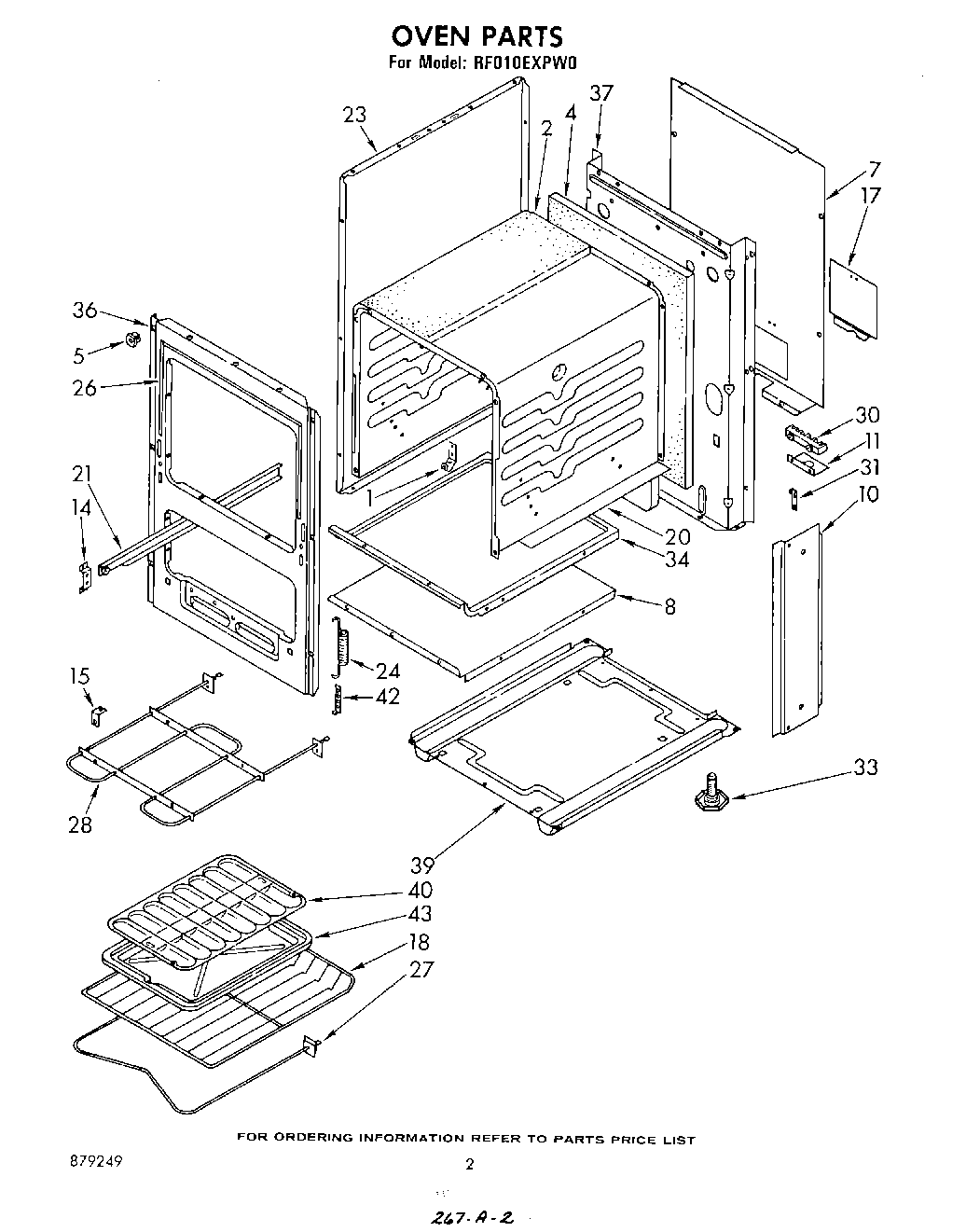

RF010EXPW0 02 – SECTION

Products

Position	Product
	List, Repair Parts
	Diagram, Wiring
	Guide, Use & Care
	Instructions, Installation
1	98005642 Whirlpool Clip
2	WPW10208653 Whirlpool Insulation
5	98460 Whirlpool Nut
7	Shield, Back Wire
8	Support, Oven Insulation
10	Chute, Air Side (2)
11	Bracket, Disconnect
14	Support, Drawer Runner (2)
15	Support, Broil Unit (2)
17	Cover, Terminal Block Access
18	Rack, Oven
20	Oven, 20“ Standard (Not Serviceable)
21	Runner, Utility Drawer (Left Side)
21	Runner, Utility Drawer (Right Side)
23	Panel, End (2) (Almond)
23	Panel, End (2) (White)
24	Spring, Oven Door (2)
26	Seal, Oven Door (Side (2))
26	Seal, Oven Door (Top)
27	Element, Bake
28	Element, Broil
30	WP8203546 Whirlpool Terminal Block
31	Lug, Ground
33	Screw, Leveling (4)
34	Bottom, Oven
36	Front, Main
37	Back, Main
39	Base, Main
40	Tray, Broiler Pan
42	Link, Oven Door Spring
43	Pan, Broiler
