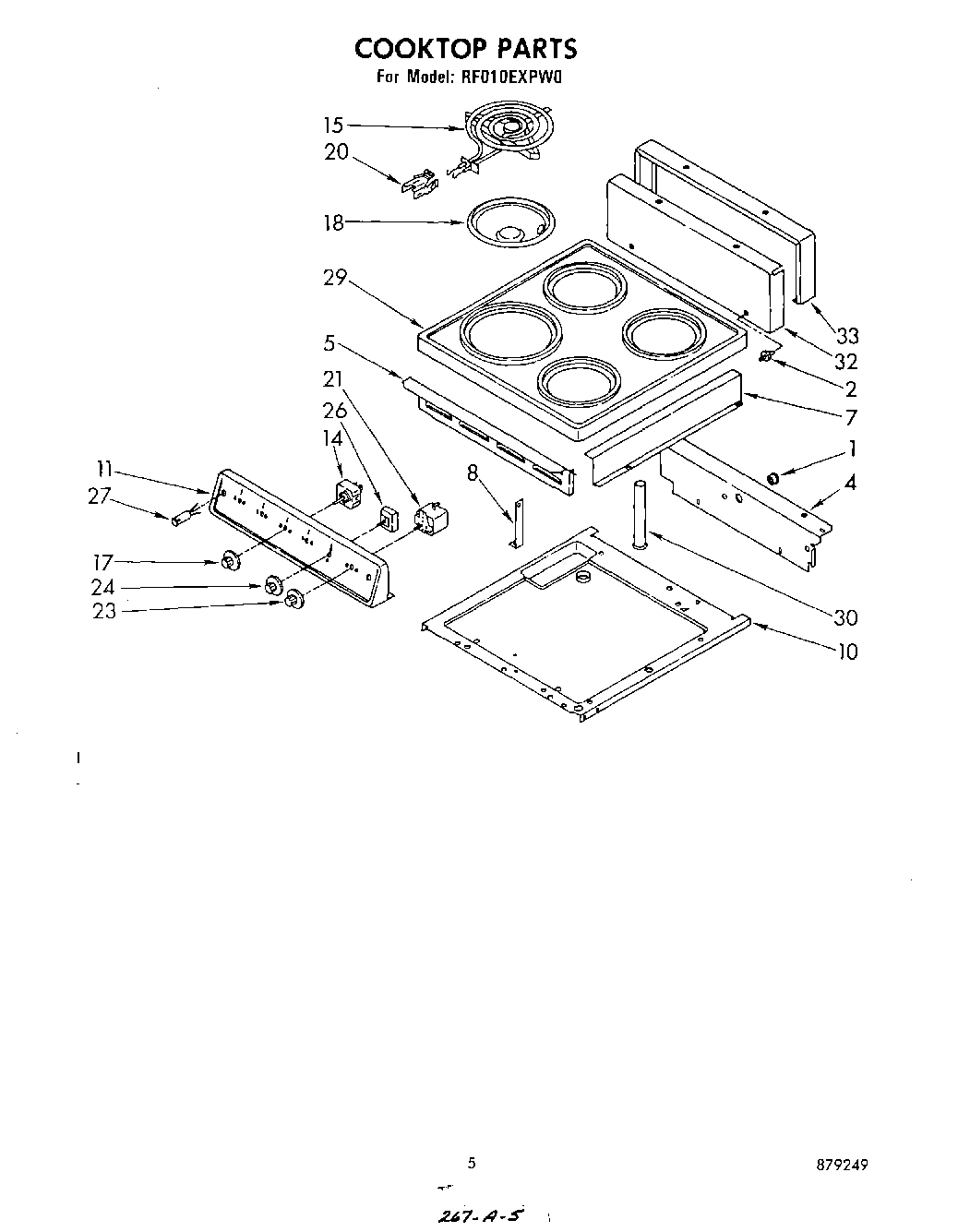

RF010EXPW0 04 – SECTION

Products

PositionProduct
1Bushing, Snap
2Nut, Spacer (2)
4Shield, Wire Rear
5Shield, Control
7Raceway, Wire
8Anchor, Cooktop
10Bottom, Burner Box
11Panel, Control (White)
11Panel, Control (Almond)
14W10900107 Whirlpool Oven Surface Element Switch
15WPY04100165 Whirlpool Surface Element
15WP660533 Whirlpool Oven 8" Surface Element
17Knob, Infinite Control (4)
18Pan, Reflector (6“ Without Hole (2))
18DRIP BOWL 8" W/HOLE CHROME
18WPW10196406 Whirlpool 6" Chrome Drip Bowl
20BURNER RECEPTACLE KIT
21Control, Oven (Thermostat)
23Knob, Oven Control
24Knob, Selector Switch
26Switch, Selector
27Light, Indicator (Surface Unit)
27Light, Indicator (Oven)
29Top, Main (Almond)
29Top, Main (White)
30Pipe, Oven Vent
32Panel, Backguard (Almond)
32Panel, Backguard (White)
33Frame, Backguard
