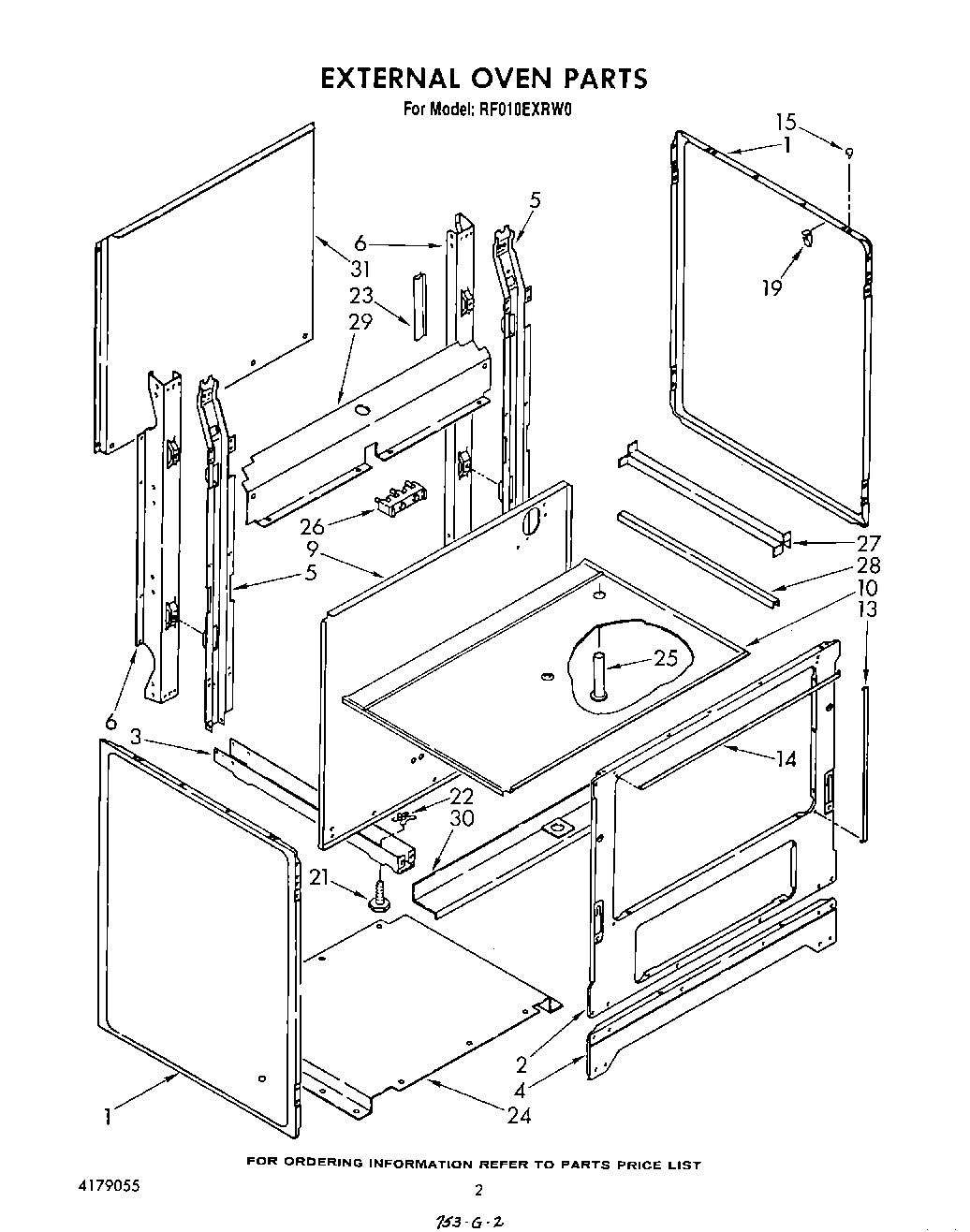

RF010EXRW0 02 – EXTERNAL OVEN , LITERATURE AND OPTIONAL

Products

Position	Product
	Guide, Use & Care
	List, Repair Parts
	Instuctions, Installation
	WPL LIT313358
1	Panel, Side (2) (Toast)
1	Panel, Side (2) (Platinum)
1	Panel, Side (2) (Almond)
1	Panel, Side (2) (White)
2	Frame, Front
3	Rail, Base (2)
4	Base, Front
4	Screw, 10-12 X 1/2 (4)
5	Screw, 10-32 X 1/2 (1)
5	Support, Main (2)
6	SCREW
6	Support, Rear (2)
9	Panel, Rear
10	WP308685 Whirlpool Microwave Screw
10	Burner Box
13	Seal, Door (2) (Side)
14	Seal, Door (Top) (Light Gray)
15	Bumper, Cooktop (2)
19	Clip, Wire
21	Leg, Leveler (4)
22	Nut (4)
23	Safe Edge
24	Panel, Bottom
25	Tube, Vent
26	WP8203546 Whirlpool Terminal Block
27	Ignitor (R.H.)
28	Ignitor (L.H.)
29	Cover, Wire
30	Support
31	Cover, Rear
31	FOIL, ALUMINUM OVEN (18“ X 25 )
31	WPW10208653 Whirlpool Insulation
