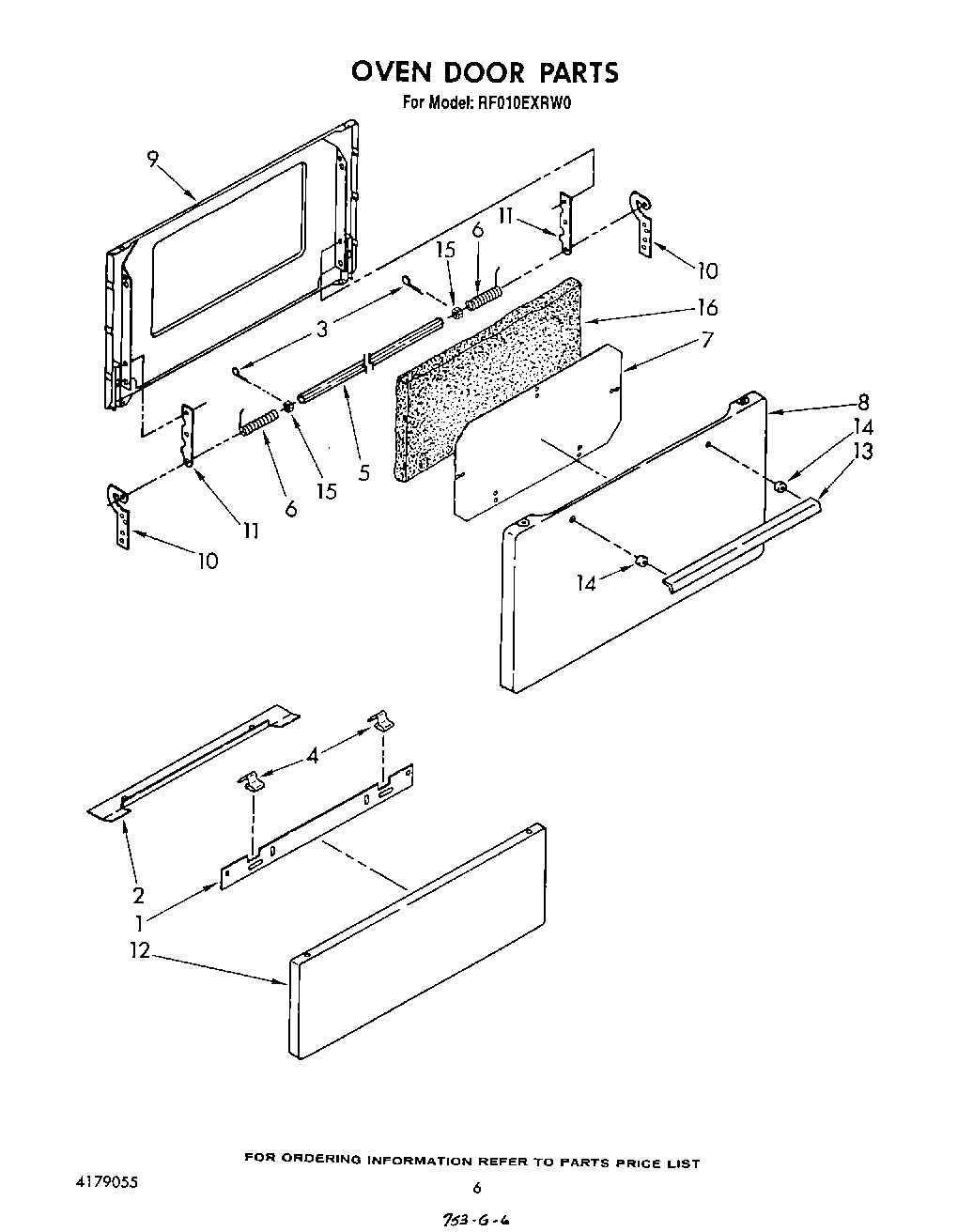

RF010EXRW0 05 – OVEN DOORadmin2025-04-26T12:51:04+00:00RF010EXRW0 05 – OVEN DOOR
Products
| Position | Product |
|---|
| 1 | Support, Clip |
| 2 | Bracket |
| 3 | Pin |
| 4 | Clip, Broiler |
| 5 | Rod |
| 6 | Spring (Left) |
| 6 | Spring (Right) |
| 7 | Baffle |
| 8 | Panel, Door (Toast) |
| 8 | Panel, Door (Platinum) |
| 8 | Panel, Door (Almond) |
| 8 | Panel, Door (White) |
| 9 | Liner, Door |
| 10 | Arm, Hinge (Left) |
| 10 | Arm, Hinge (Right) |
| 11 | Hinge (2) |
| 12 | Panel (Almond) |
| 12 | Panel (White) |
| 12 | Panel (Platinum) |
| 12 | Panel (Toast) |
| 13 | Handle, Broiler Door |
| 14 | Spacer (4) |
| 15 | Winder |
| 16 | Insulation |
