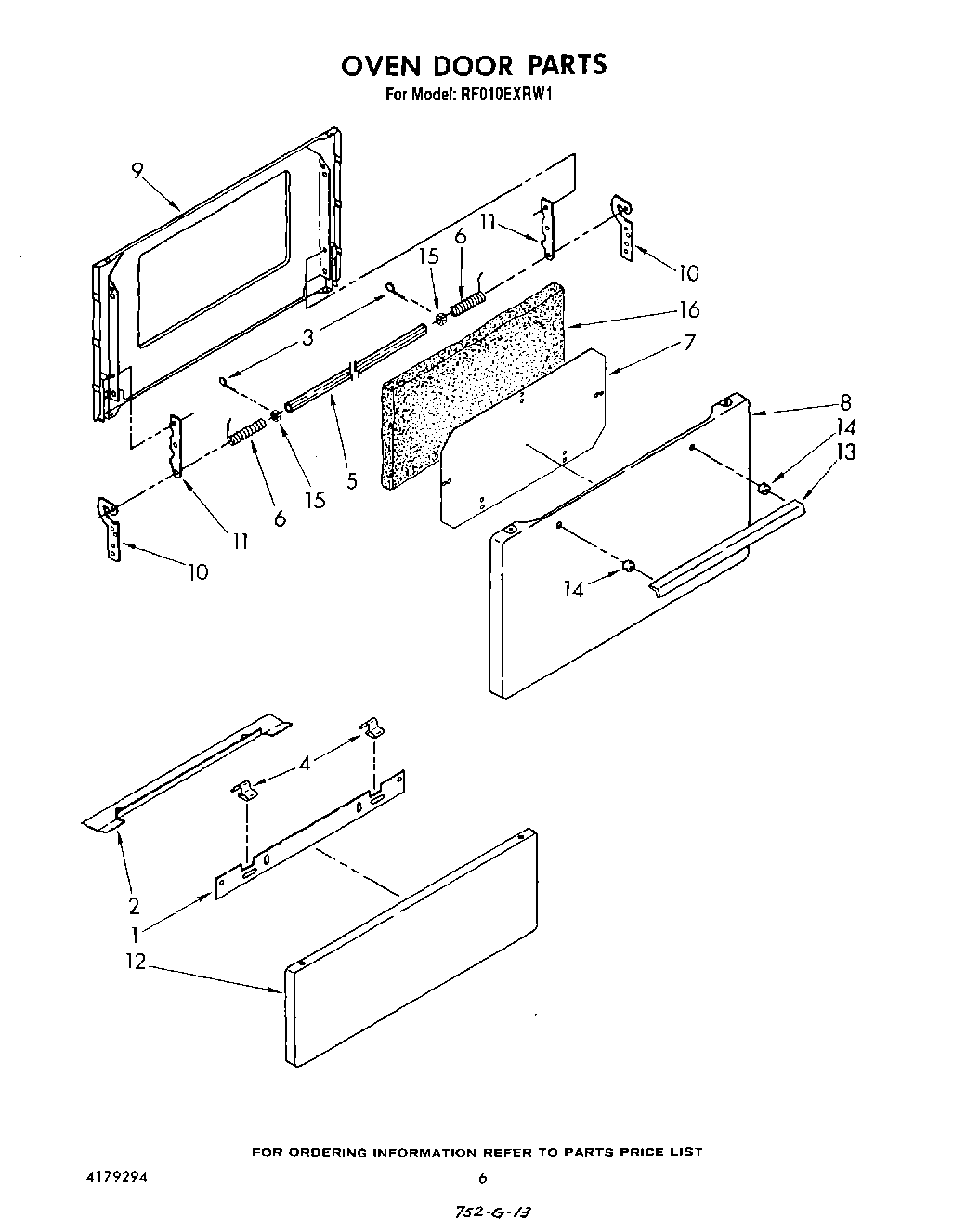

RF010EXRW1 05 – OVEN DOOR

RF010EXRW1 05 – OVEN DOOR

Written by

in

RF010EXRW1 05 – OVEN DOOR

Products

Position	Product
1	Support, Clip
2	Bracket
3	Pin
4	Clip, Broiler
5	Rod
6	Spring (Left)
6	Spring (Right)
7	Baffle
8	Panel, Door (Toast)
8	Panel, Door (Platinum)
8	Panel, Door (White)
8	Panel, Door (Almond)
9	Liner, Door
10	Arm, Hinge (Right)
10	Arm, Hinge (Left)
11	Hinge (2)
12	Panel (Platinum)
12	Panel (Toast)
12	Panel (White)
12	Panel (Almond)
13	Handle, Broiler Door
14	Spacer (4)
15	Winder
16	Insulation
