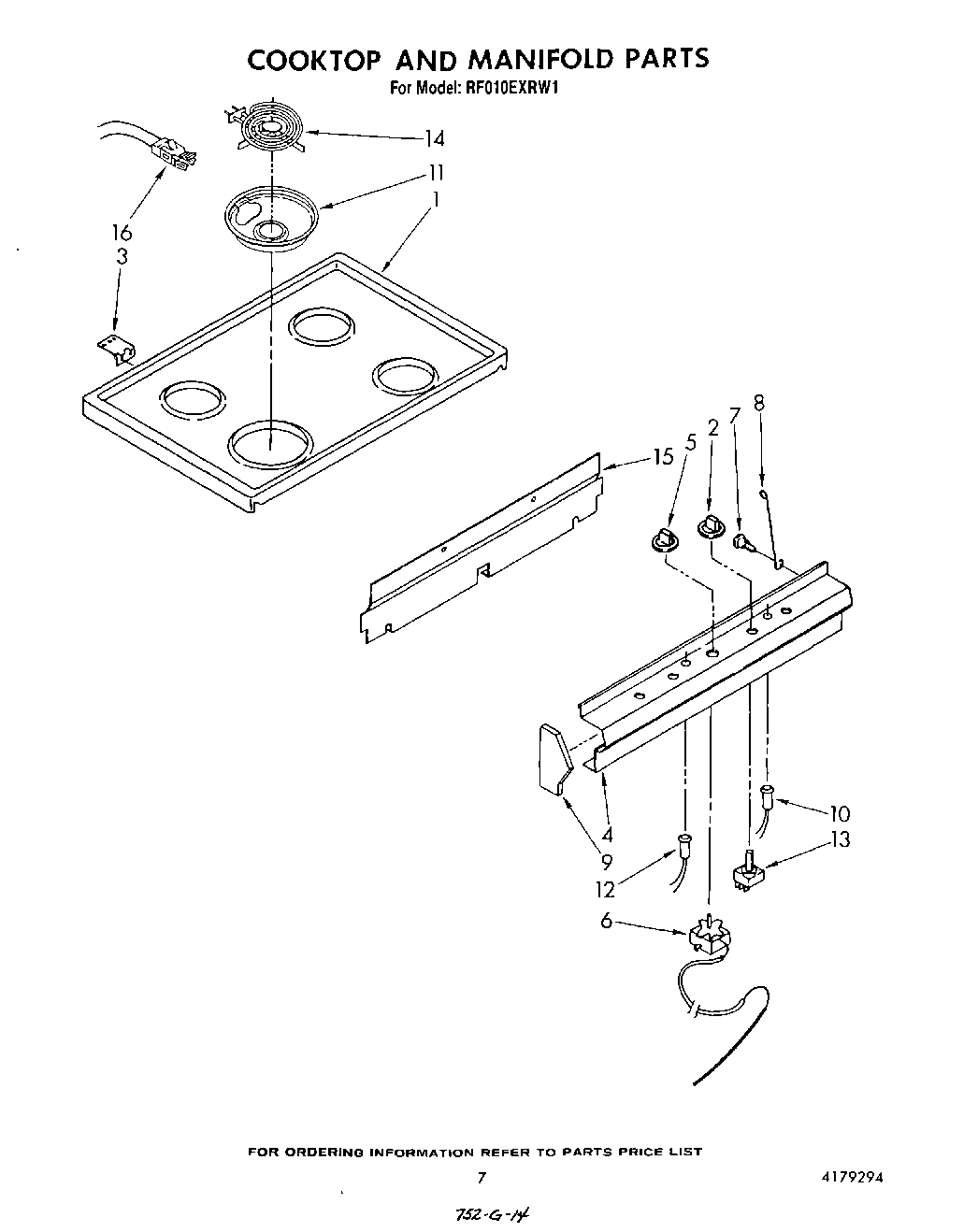

RF010EXRW1 06 – COOK TOP AND MANIFOLD

Products

PositionProduct
1Cooktop (Almond)
1Cooktop (Toast)
1Cooktop (Platinum)
1Cooktop (White)
2Knob, Burner (4)
3Speed Clip (4)
3WP308685 Whirlpool Microwave Screw
3SCREW
3Hinge, Maintop (2)
4Panel, Manifold
5Knob, Thermostat
6Thermostat
7Screw
8Rod, Support
9Endcap (R.H.)
9Endcap (L.H.)
10Light, Indicator (Oven)
11DRIP BOWL 8" W/HOLE CHROME
11WPW10196406 Whirlpool 6" Chrome Drip Bowl
12Light, Indicator (Surface Unit)
13Switch, Infinite
14WP660533 Whirlpool Oven 8" Surface Element
14WP660532 Whirlpool Oven Surface Element
15Cover, Switch
16BURNER RECEPTACLE KIT
