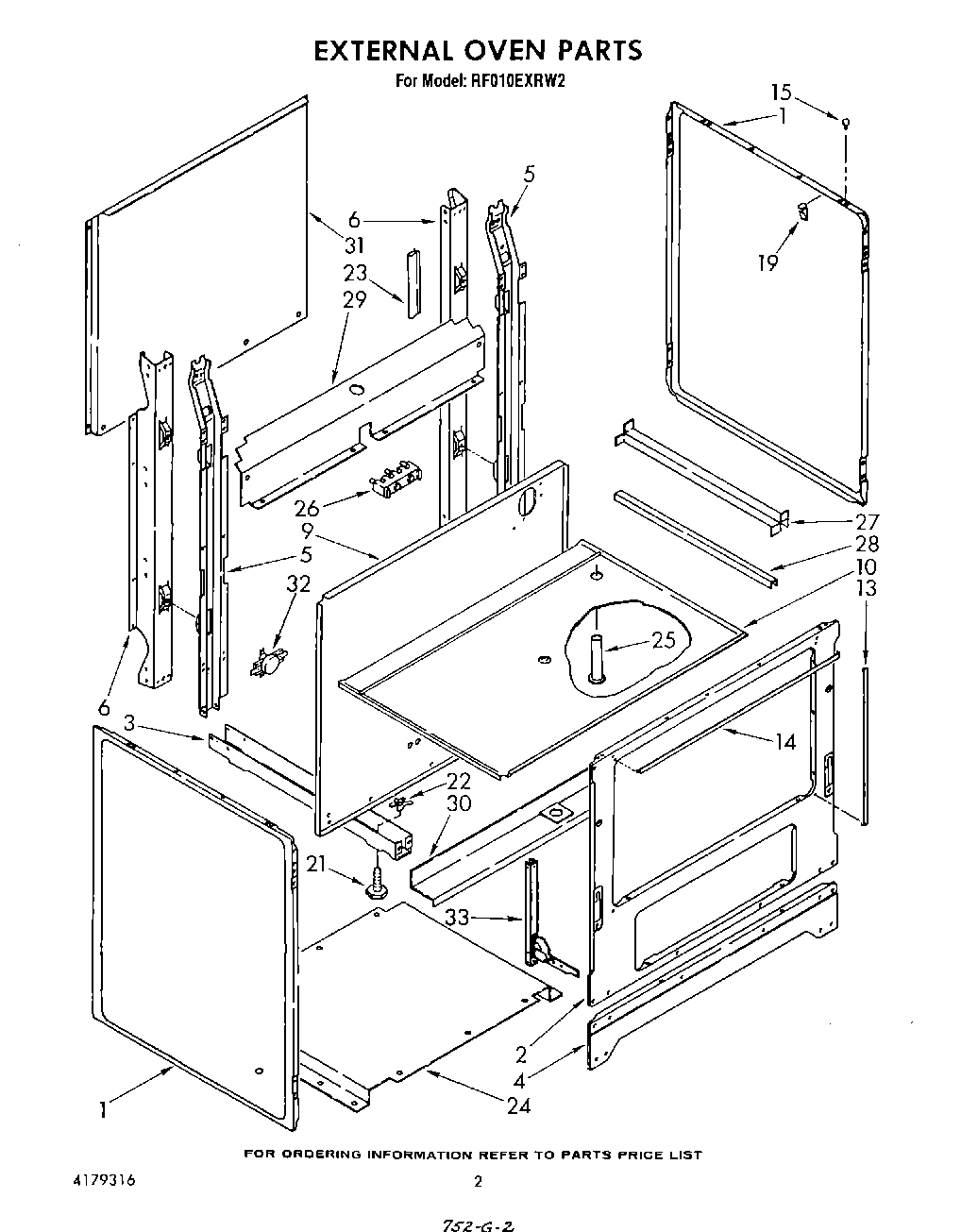

RF010EXRW2 02 – EXTERNAL OVENadmin2025-04-26T12:51:05+00:00RF010EXRW2 02 – EXTERNAL OVEN
Products
| Position | Product |
|---|
| List, Repair Parts |
| Guide, Use & Care |
| Instuctions, Installation |
| WPL LIT313358 |
| 1 | Panel, Side (2) (Toast) |
| 1 | Panel, Side (2) (Platinum) |
| 1 | Panel, Side (2) (Almond) |
| 1 | Panel, Side (2) (White) |
| 2 | Frame, Front |
| 3 | Rail, Base (2) |
| 4 | Base, Front |
| 4 | Screw, 10-12 X 1/2 (4) |
| 5 | Screw, 10-32 X 1/2 (1) |
| 5 | Support, Main (2) |
| 6 | SCREW |
| 6 | Support, Rear (2) |
| 9 | Panel, Rear |
| 10 | Panel, Rear |
| 10 | WP308685 Whirlpool Microwave Screw |
| 13 | Seal, Door (2) (Side) |
| 14 | Seal, Door (Top) (Light Gray) |
| 15 | Bumper, Cooktop (2) |
| 19 | Clip, Wire |
| 21 | Leg, Leveler (4) |
| 22 | Nut (4) |
| 23 | Safe Edge |
| 24 | Panel, Bottom |
| 25 | Tube, Vent |
| 26 | WP8203546 Whirlpool Terminal Block |
| 27 | Ignitor (R.H.) |
| 28 | Ignitor (L.H.) |
| 29 | Cover, Wire |
| 30 | Support |
| 31 | Cover, Rear |
| 32 | Disc, Thermo |
| 33 | FOIL, ALUMINUM OVEN (18`` X 25 ) |
| 33 | WPW10208653 Whirlpool Insulation |
| 33 | Hinge, Door (2) |
