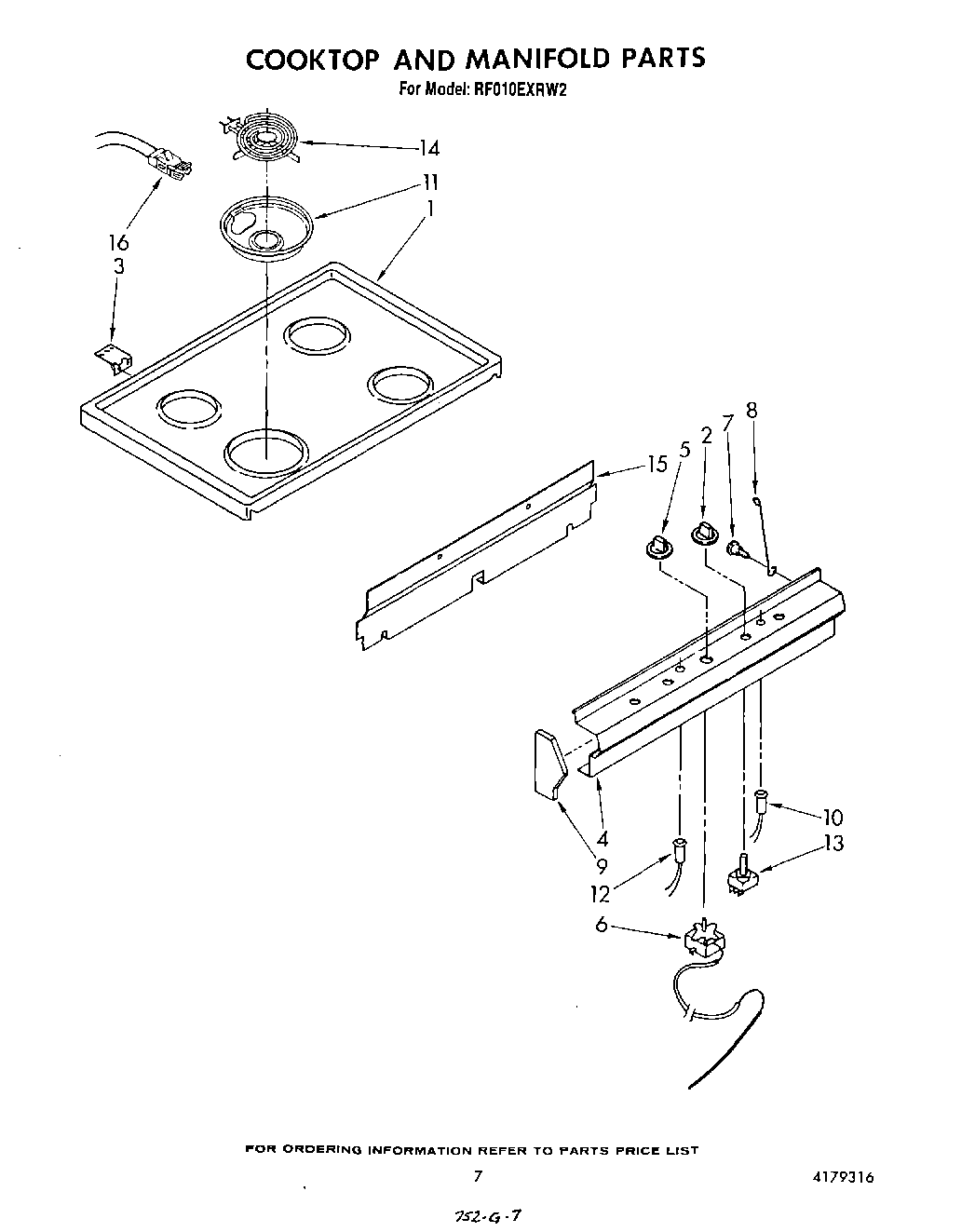

RF010EXRW2 06 – COOKTOP AND MANIFOLD

RF010EXRW2 06 – COOKTOP AND MANIFOLD

Written by

in

RF010EXRW2 06 – COOKTOP AND MANIFOLD

Products

PositionProduct
1Cooktop (Almond)
1Cooktop (Toast)
1Cooktop (Platinum)
1Cooktop (White)
2Knob, Burner (4)
3WP308685 Whirlpool Microwave Screw
3Speed Clip (4)
3SCREW
3Hinge, Maintop (2)
4Panel, Manifold
5Knob, Thermostat
6Thermostat
7Screw
8Rod, Support
9Endcap (R.H.)
9Endcap (L.H.)
10Light, Indicator (Oven)
11WPW10196406 Whirlpool 6" Chrome Drip Bowl
11DRIP BOWL 8" W/HOLE CHROME
12Light, Indicator (Surface Unit)
13W10900107 Whirlpool Oven Surface Element Switch
14Unit, Surface (8“)
14Unit, Surface (6“)
15Cover, Switch
16BURNER RECEPTACLE KIT
