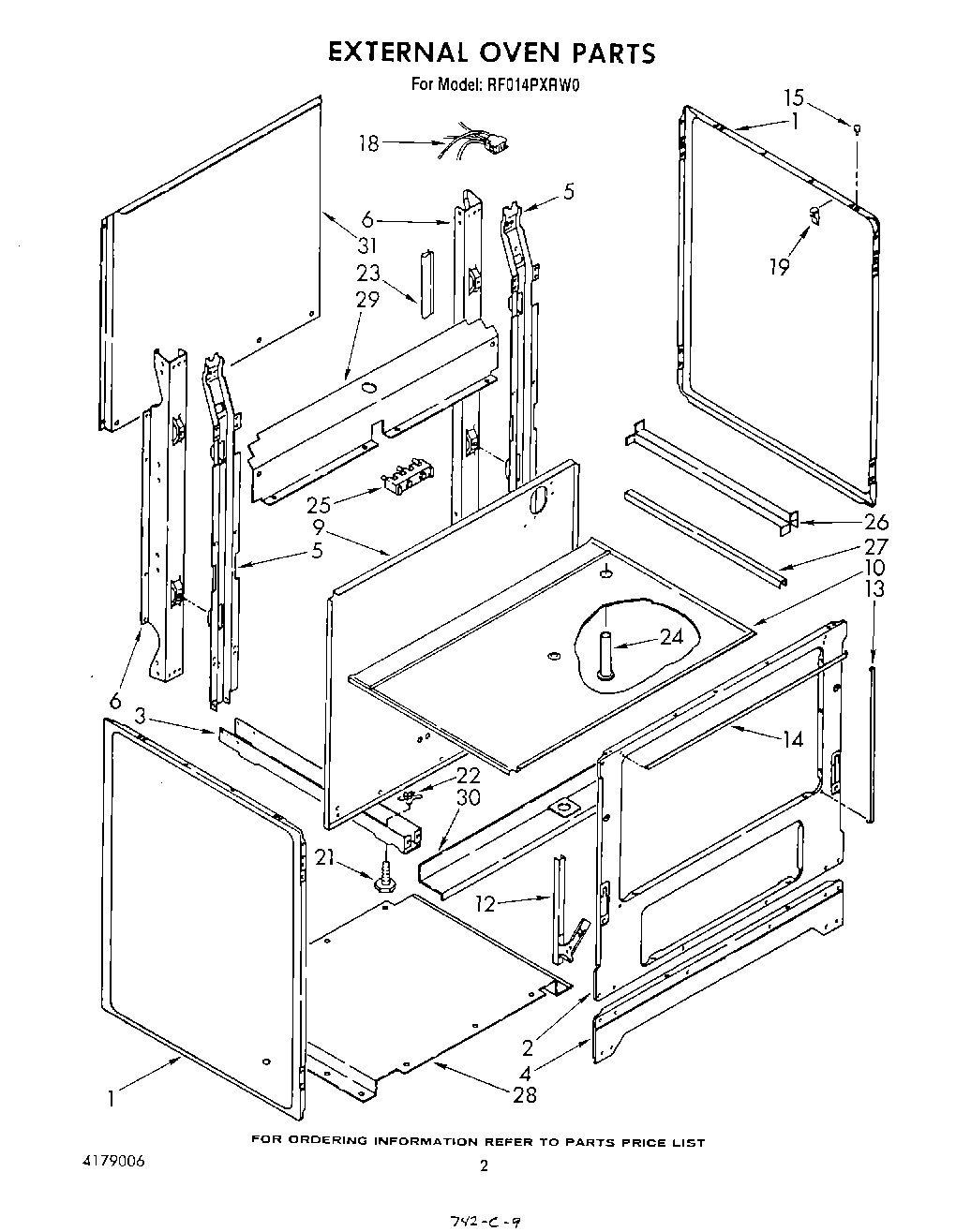

RF014PXRW0 02 – EXTERNAL OVEN , LITERATURE AND OPTIONAL

Products

PositionProduct
Guide, Use & Care
WPL LIT313358
Instuctions, Installation
List, Repair Parts
1Panel, Side (2) (Toast)
1Panel, Side (2) (Platinum)
1Panel, Side (2) (White)
1Panel, Side (2) (Almond)
2Frame, Front
3Rail, Base (2)
4Base, Front
4Screw, 10-12 X 1/2 (4)
5Screw, 10-32 X 1/2 (1)
5Support, Main (2)
6Support, Rear (2)
6SCREW
9Panel, Rear
10WP308685 Whirlpool Microwave Screw
10Burner Box
12Screw, 10-24 X 3/8 (2)
12Hinge, Door (2)
13Seal, Door (2) (Side)
14Seal, Door (Top)
15Bumper, Cooktop (2)
18Block, Disconnect
19Clip, Wire
21Leg, Leveler (4)
22Nut (4)
23Safe Edge
24Tube, Vent
25WP8203546 Whirlpool Terminal Block
26Ignitor (R.H.)
27Ignitor (L.H.)
28Panel, Bottom
29Cover, Rear
30Cover, Wire
31WPW10208653 Whirlpool Insulation
31FOIL, ALUMINUM OVEN (18“ X 25 )
31Cover, Rear
