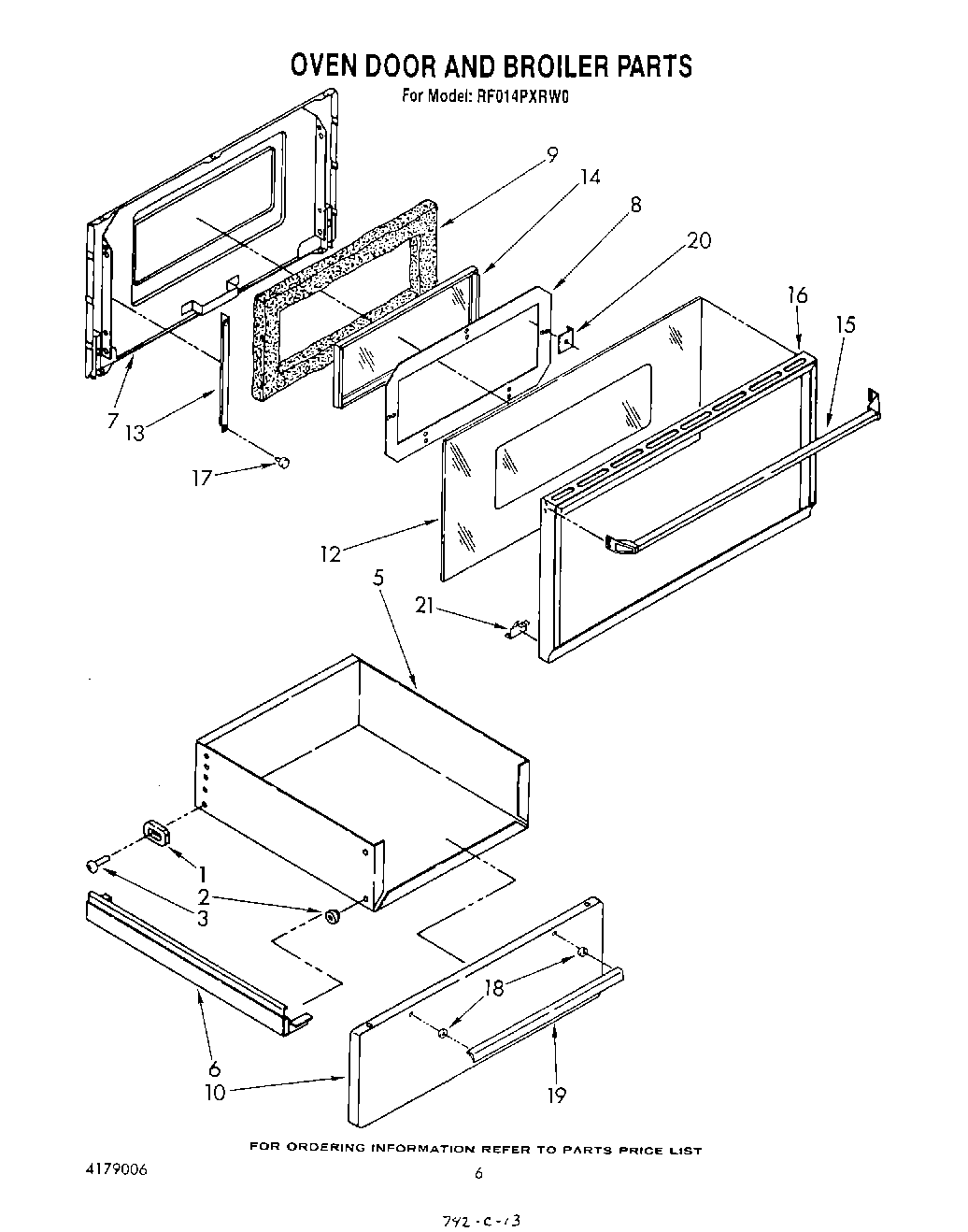

RF014PXRW0 05 – OVEN DOOR AND BROILER

Products

Position	Product
1	Slide (2)
2	Roller (2)
3	Rivet
5	Liner
6	Track (Right)
6	Track (Left)
7	Liner, Door
8	SCREW
8	Baffle
9	Insulation
10	WP308685 Whirlpool Microwave Screw
10	Panel, Drawer (White)
10	Panel, Drawer (Almond)
10	Panel, Drawer (Toast)
10	Panel, Drawer (Platinum)
12	Glass
13	Support, Glass (2)
14	Window Assy
15	Handle, Door
16	Frame, Door
17	Bumper, Rubber (6)
18	Spacer (4)
19	Handle, Broiler Door
20	Plate (2)
21	Support, Glass
21	Support, Glass (Right Hand)
