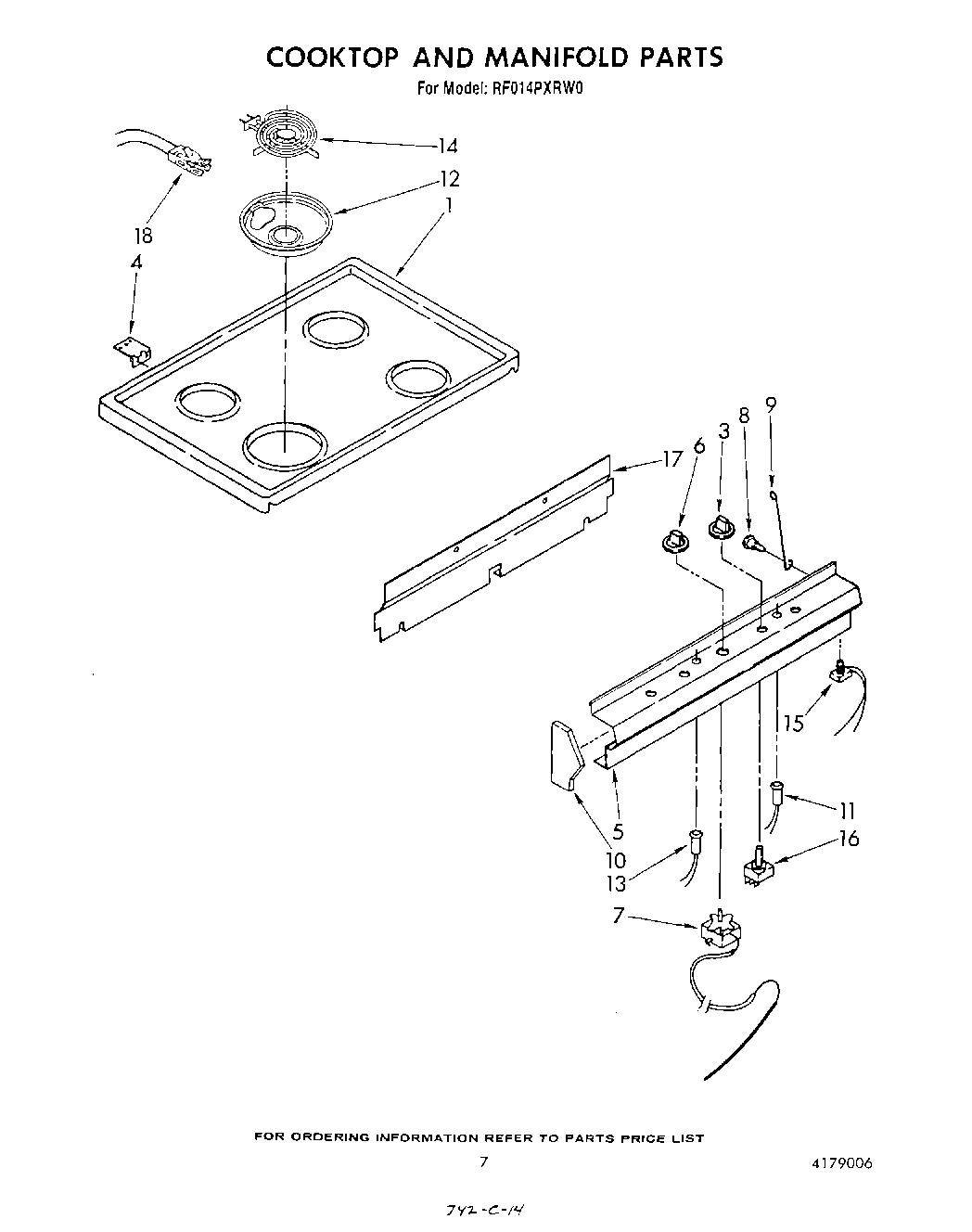

RF014PXRW0 06 – COOKTOP AND MANIFOLD

RF014PXRW0 06 – COOKTOP AND MANIFOLD

Written by

in

RF014PXRW0 06 – COOKTOP AND MANIFOLD

Products

PositionProduct
1Cooktop (White)
1Cooktop (Almond)
1Cooktop (Toast)
1Cooktop (Platinum)
3Knob, Burner (4)
4Hinge, Maintop (2)
4Speed Clip (4)
4WP308685 Whirlpool Microwave Screw
4SCREW
5Panel, Manifold
6Knob, Thermostat
7Thermostat
8Screw
9Rod, Support
10Endcap (R.H.)
10Endcap (L.H.)
11Light, Indicator (Oven)
12DRIP BOWL 8" W/HOLE CHROME
12WPW10196406 Whirlpool 6" Chrome Drip Bowl
13Light, Indicator (Surface Unit)
14Unit, Surface (8“)
14Unit, Surface (6“)
15Switch, Oven Light (2)
16Switch, Infinite
17Cover, Switch
18BURNER RECEPTACLE KIT
