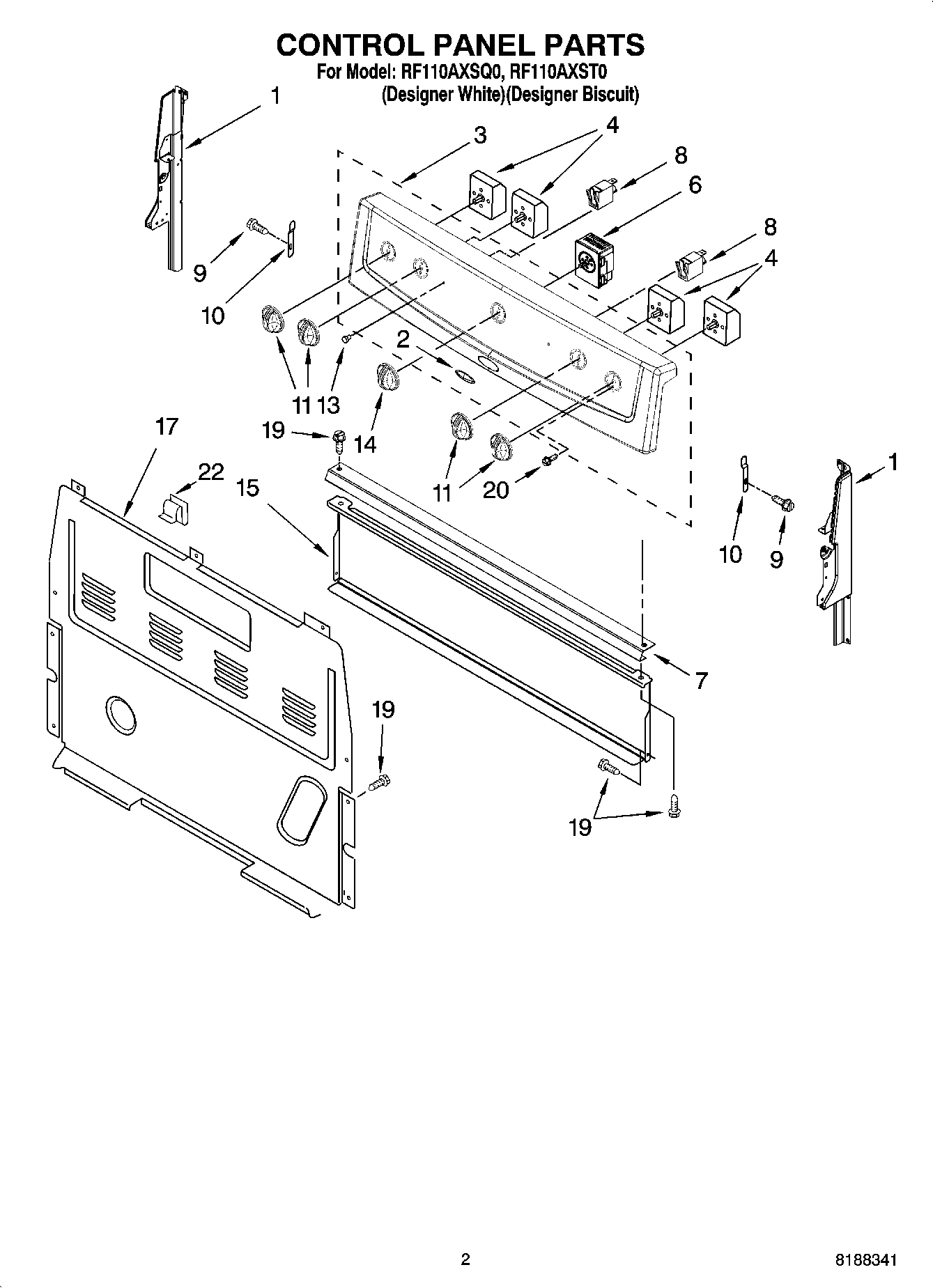

RF110AXSQ0 02 – CONTROL PANEL PARTS

Products

Position	Product
1	Endcap (Biscuit Left Hand)
1	W11230612 Whirlpool Panel End Cap
1	W11219365 Whirlpool Panel Endcap
1	W11219370 Whirlpool Endcap Panel
2	Nameplate
3	Panel, Backguard (Biscuit)
3	Panel, Backguard (White)
4	WP3149404 Whirlpool Oven Surface Element Switch
4	SWITCH-INF
6	WP9762215 Whirlpool Oven Switch
7	Bracket, Console
8	WP8523266 Whirlpool Indicator Light
9	3196166 Whirlpool Screw
10	3196200 Whirlpool Clip
11	WP9761962 Whirlpool Range Stove Burner Control Knob
11	WP9761963 Whirlpool Knob Assembly
13	WP3196068 Whirlpool Light Lens
14	Knob, Thermostat (White)
14	Knob, Thermostat (Biscuit)
15	Shield, Heat
17	WP8272473 Whirlpool Rear Cover
19	SCREW
20	WP3400882 Whirlpool Screw
22	WP8273564 Whirlpool Clip
