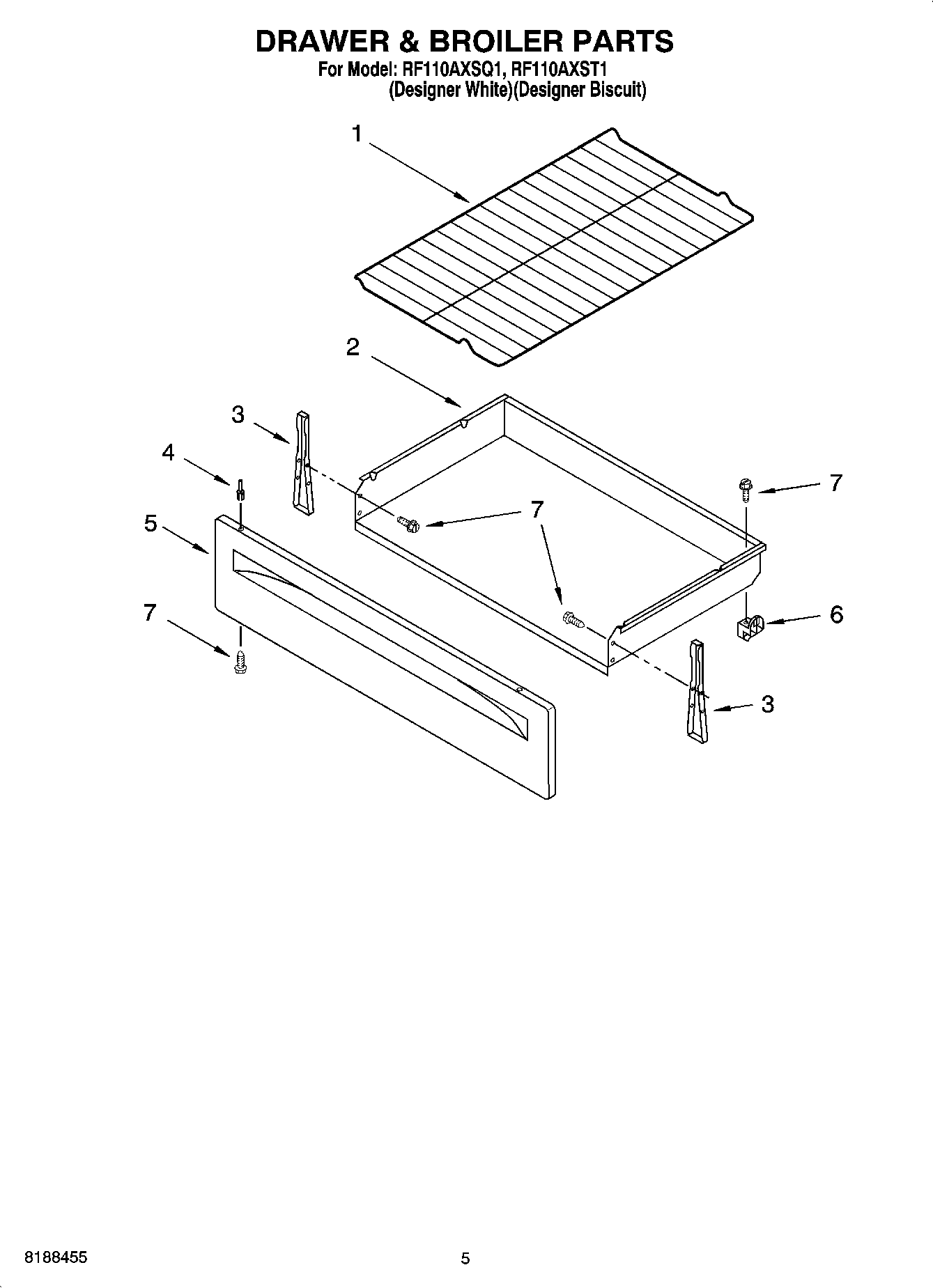

RF110AXSQ1 04 – DRAWER & BROILER PARTS

RF110AXSQ1 04 – DRAWER & BROILER PARTS

Written by

in

RF110AXSQ1 04 – DRAWER & BROILER PARTS

Products

PositionProduct
1WPW10256908 Whirlpool Oven Range Rack
2Drawer, Storage
3W10838990 Whirlpool Mounting Bracket
4WP3196814 Whirlpool Rivet
5W11219377 Whirlpool Drawer Panel
6WP8053334 Whirlpool Drawer Glide
7WP3400832 Whirlpool Screw
