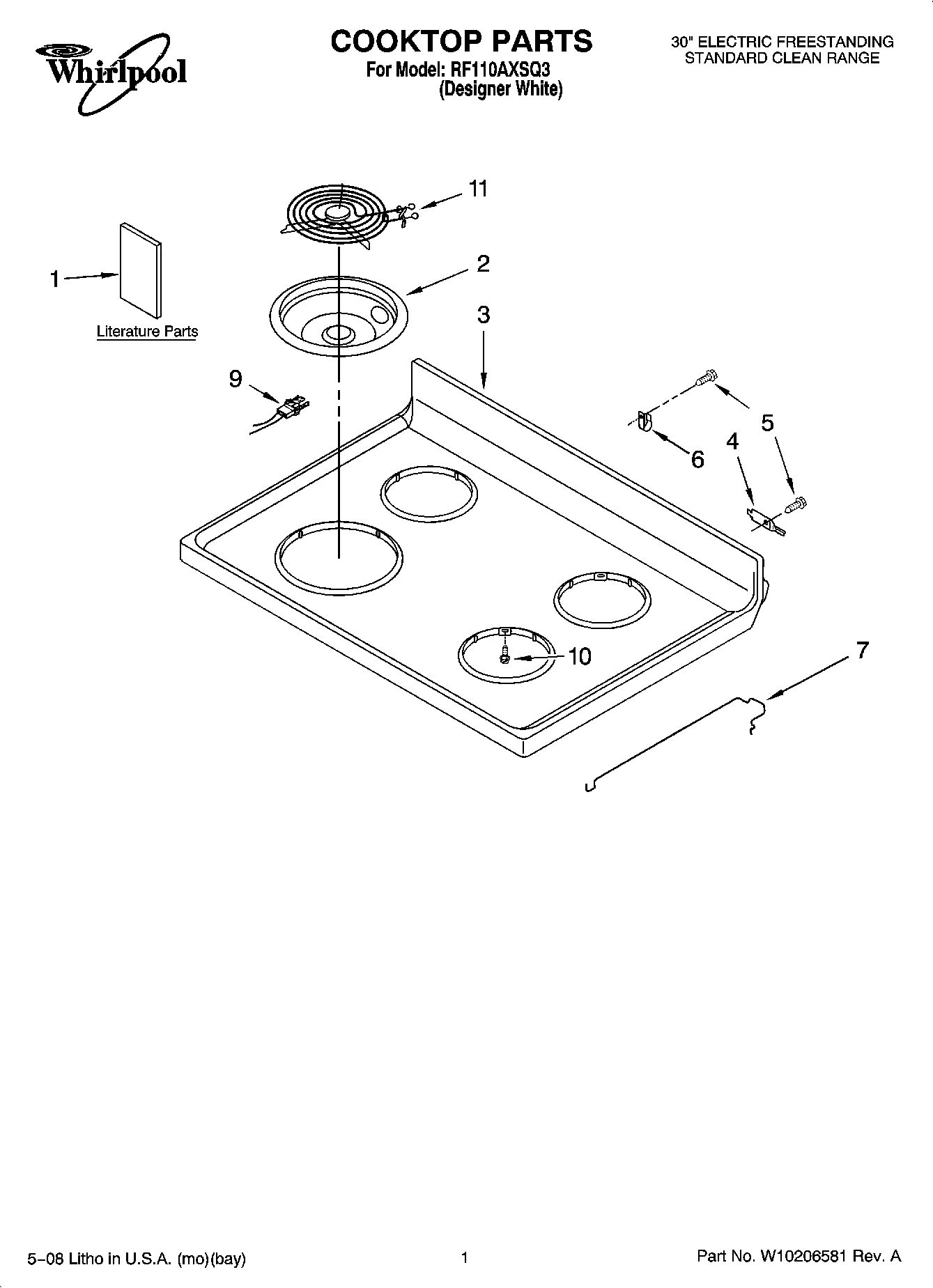

RF110AXSQ3 01 – COOKTOP PARTS

RF110AXSQ3 01 – COOKTOP PARTS

Written by

in

RF110AXSQ3 01 – COOKTOP PARTS

Products

PositionProduct
1Owners Manual
1Sheet, Tech
1Installation Instructions
1Anti-Tip Template (English/French)
1Anti-Tip Template (English/Spanish)
1SAFER COOKING TIPS (ENGLISH
2WPW10196406 Whirlpool 6" Chrome Drip Bowl
2DRIP BOWL 8" W/HOLE CHROME
3Cooktop (White)
4WP3195060 Whirlpool Cooktop Pin
5SCREW
6WP308605 Whirlpool Refrigerator Clamp
7WP3195812 Whirlpool Cooktop Rod
9814399 Whirlpool Receptacle Kit
10WP3196154 Whirlpool Screw Assembly
11WPW10345407 Whirlpool Surface Element
11WP9761346 Whirlpool Stove Surface Burner Element
