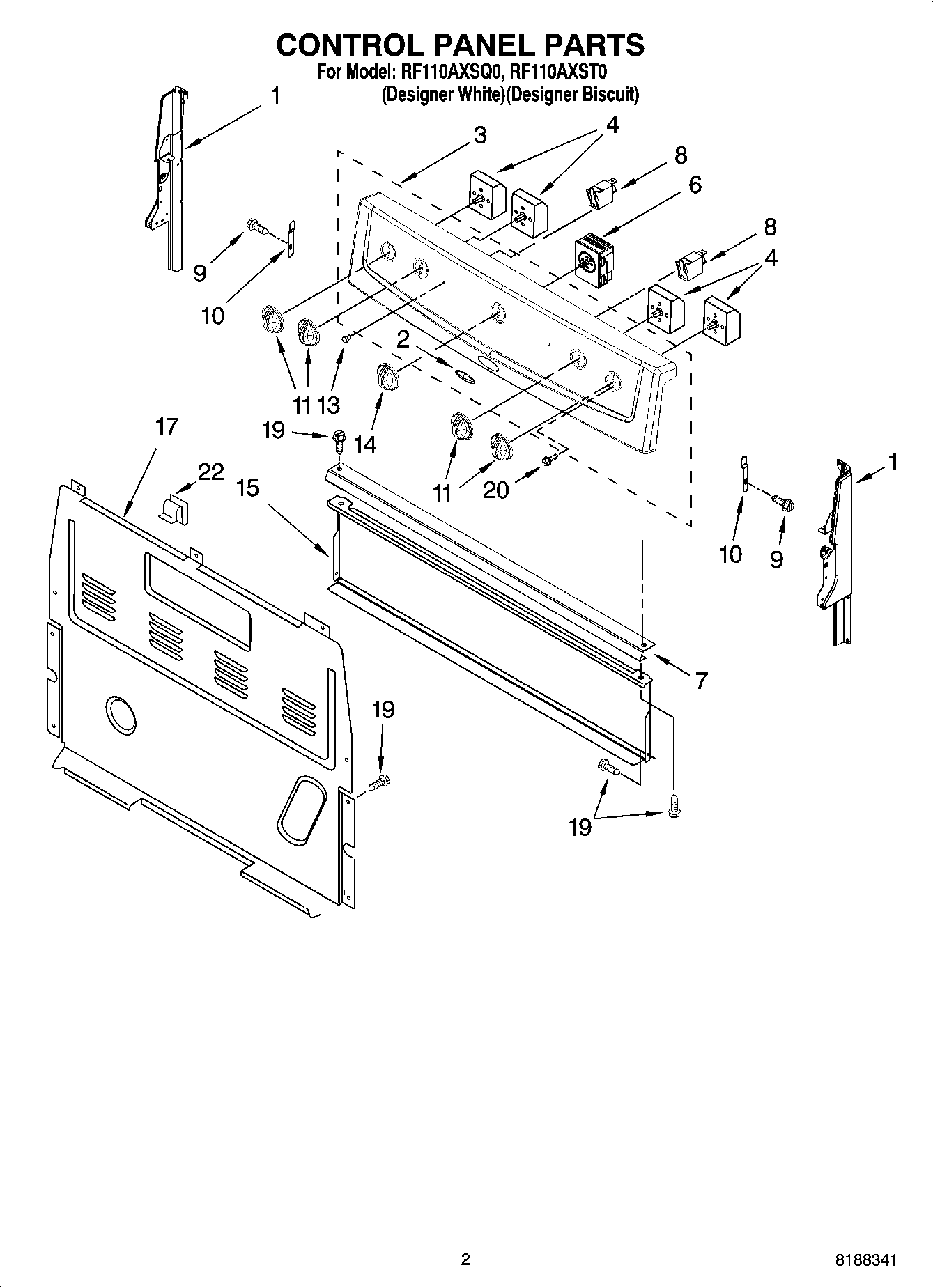

RF110AXST0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Endcap (Biscuit Left Hand)
1W11230612 Whirlpool Panel End Cap
1W11219365 Whirlpool Panel Endcap
1W11219370 Whirlpool Endcap Panel
2Nameplate
3Panel, Backguard (Biscuit)
3Panel, Backguard (White)
4WP3149404 Whirlpool Oven Surface Element Switch
4SWITCH-INF
6WP9762215 Whirlpool Oven Switch
7Bracket, Console
8WP8523266 Whirlpool Indicator Light
93196166 Whirlpool Screw
103196200 Whirlpool Clip
11WP9761962 Whirlpool Range Stove Burner Control Knob
11WP9761963 Whirlpool Knob Assembly
13WP3196068 Whirlpool Light Lens
14Knob, Thermostat (White)
14Knob, Thermostat (Biscuit)
15Shield, Heat
17WP8272473 Whirlpool Rear Cover
19SCREW
20WP3400882 Whirlpool Screw
22WP8273564 Whirlpool Clip
