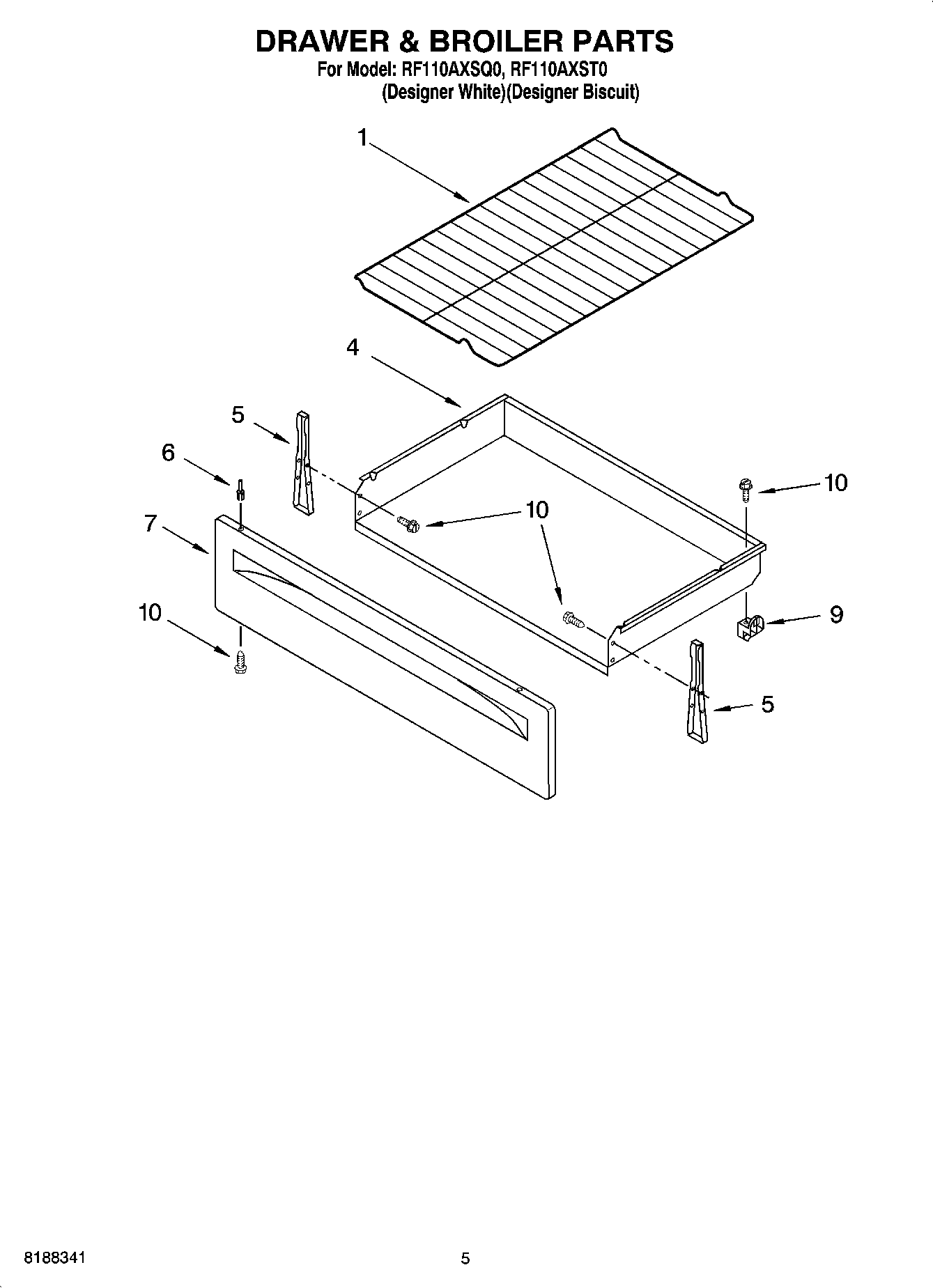

RF110AXST0 04 – DRAWER & BROILER PARTS

Written by

Products

Position	Product
1	WPW10256908 Whirlpool Oven Range Rack
4	Drawer, Storage
5	W10838990 Whirlpool Mounting Bracket
6	3196815 Whirlpool Oven Rivet
6	WP3196814 Whirlpool Rivet
7	W11219377 Whirlpool Drawer Panel
7	W11230476 Whirlpool Drawer Panel
9	WP8053334 Whirlpool Drawer Glide
10	WP3400832 Whirlpool Screw
