RF110AXST1 02 – CONTROL PANEL PARTS
Written by
in

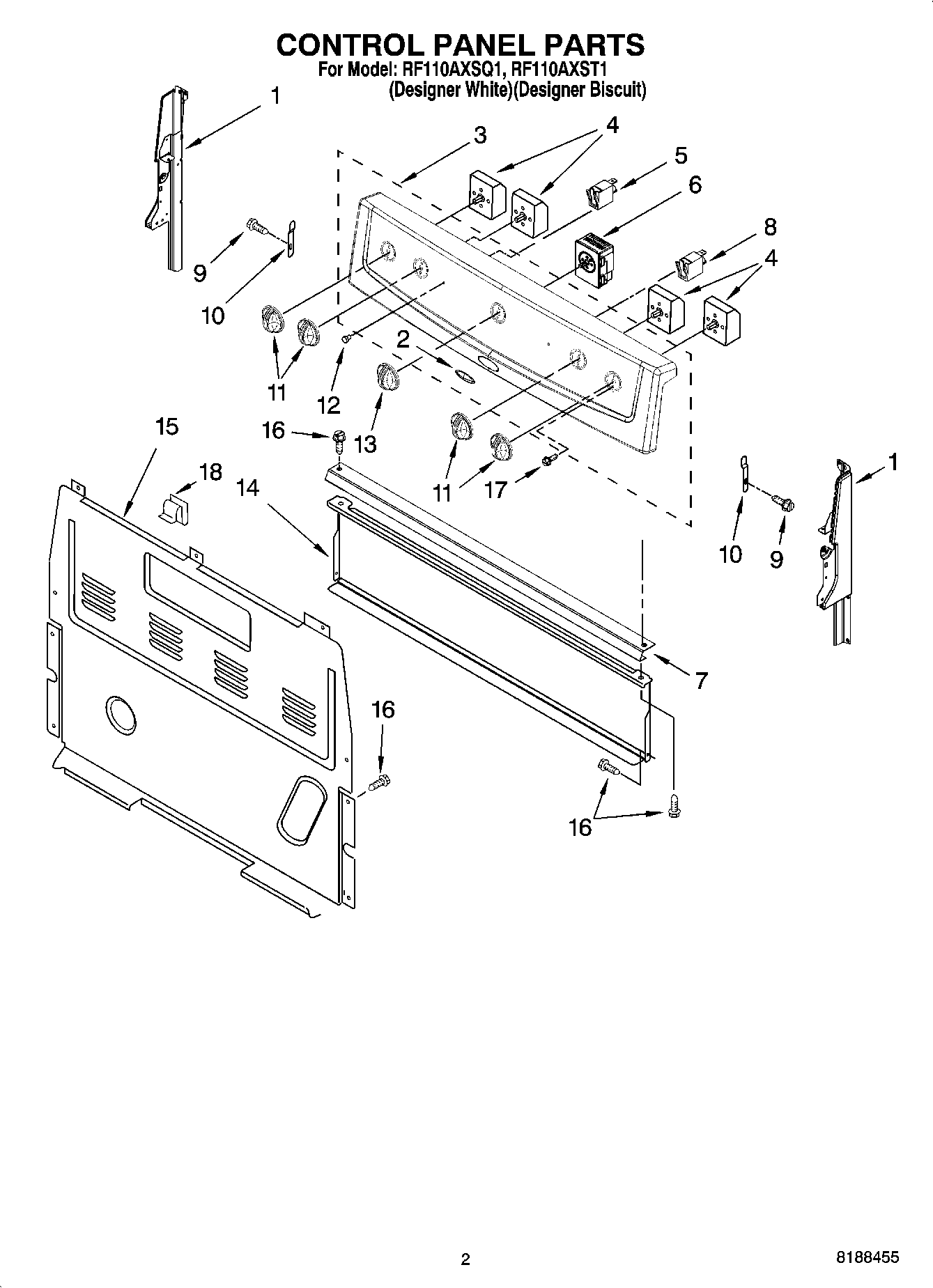

RF110AXST1 02 – CONTROL PANEL PARTS
Products
Position
Product
1
W11219370 Whirlpool Endcap Panel
1
W11219365 Whirlpool Panel Endcap
2
Nameplate
3
Panel, Backguard (White)
4
SWITCH-INF
4
WP3149404 Whirlpool Oven Surface Element Switch
5
WP8523265 Whirlpool Indicator Light
6
WP9762215 Whirlpool Oven Switch
7
Bracket, Console
8
WP8523266 Whirlpool Indicator Light
9
3196166 Whirlpool Screw
10
3196200 Whirlpool Clip
11
WP9761962 Whirlpool Range Stove Burner Control Knob
12
WP3196068 Whirlpool Light Lens
13
Knob, Thermostat (White)
14
Shield, Heat
15
WP8272473 Whirlpool Rear Cover
16
SCREW
17
WP3400882 Whirlpool Screw
18
WP8273564 Whirlpool Clip
←
