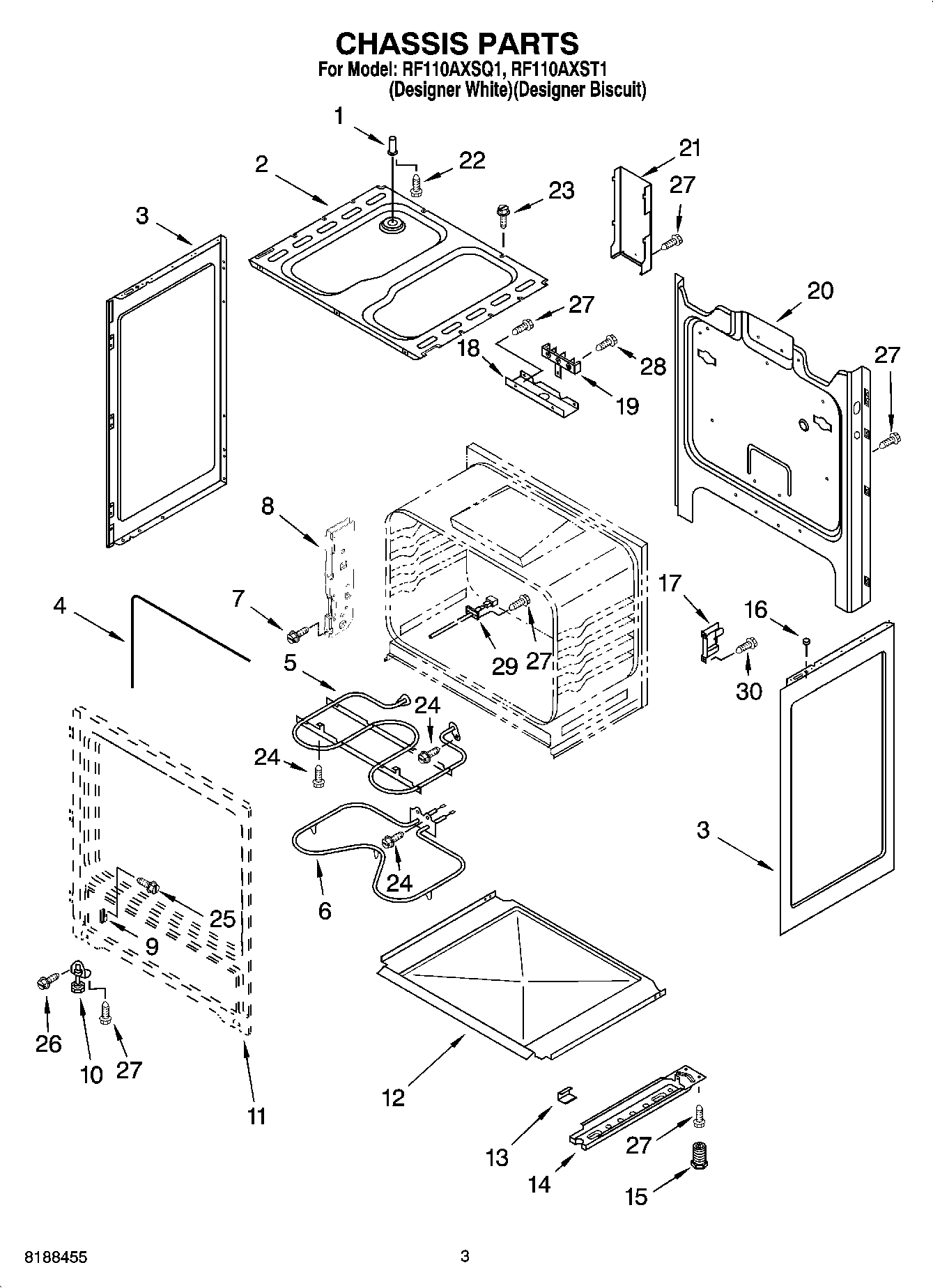

RF110AXST1 03 – CHASSIS PARTS
Written by
in
RF110AXST1 03 – CHASSIS PARTS
Products
Position
Product
1
9755804 Whirlpool Oven Vent Tube
2
W11699791 Whirlpool Burner Box
3
WPW10575396 Whirlpool Side Panel
4
W11542153 Whirlpool Door Gasket
5
W10856603 Whirlpool Broil Element
6
WPW10308477 Whirlpool Bake Element
7
W10777162 Whirlpool Screw
8
W10647259 Whirlpool Hinge Receiver
9
WPW10114344 Whirlpool Drawer Glide
10
WP3196037 Whirlpool Leveling Foot
11
Frame, Front Not Serviced
12
WP8054068 Whirlpool Retainer
13
Clip, Panel (6)
14
WPW10306546 Whirlpool Base Rail
15
WPW10058460 Whirlpool Appliance Levelling Leg
16
238614 Whirlpool Bumper Hinge
17
W10404688 Whirlpool Bracket Support
18
W11728255 Whirlpool Service Bracket
19
WP9761958 Whirlpool Range Terminal Block
19
WP112432 Whirlpool Nut Assembly
20
Back, Main
21
WPW10326122 Whirlpool Black Cover
22
WP3196567 Whirlpool Screw
23
WP3400832 Whirlpool Screw
24
WP3196174 Whirlpool Screw
25
WP3196175 Whirlpool Screw
26
Screw
27
SCREW
28
WP3400016 Whirlpool Screw Assembly
29
WPW10181986 Whirlpool Oven Sensor
30
WP3196557 Whirlpool Screw
30
W11311894 Whirlpool Insulation
30
WPW10208653 Whirlpool Insulation
30
Insulation
←
