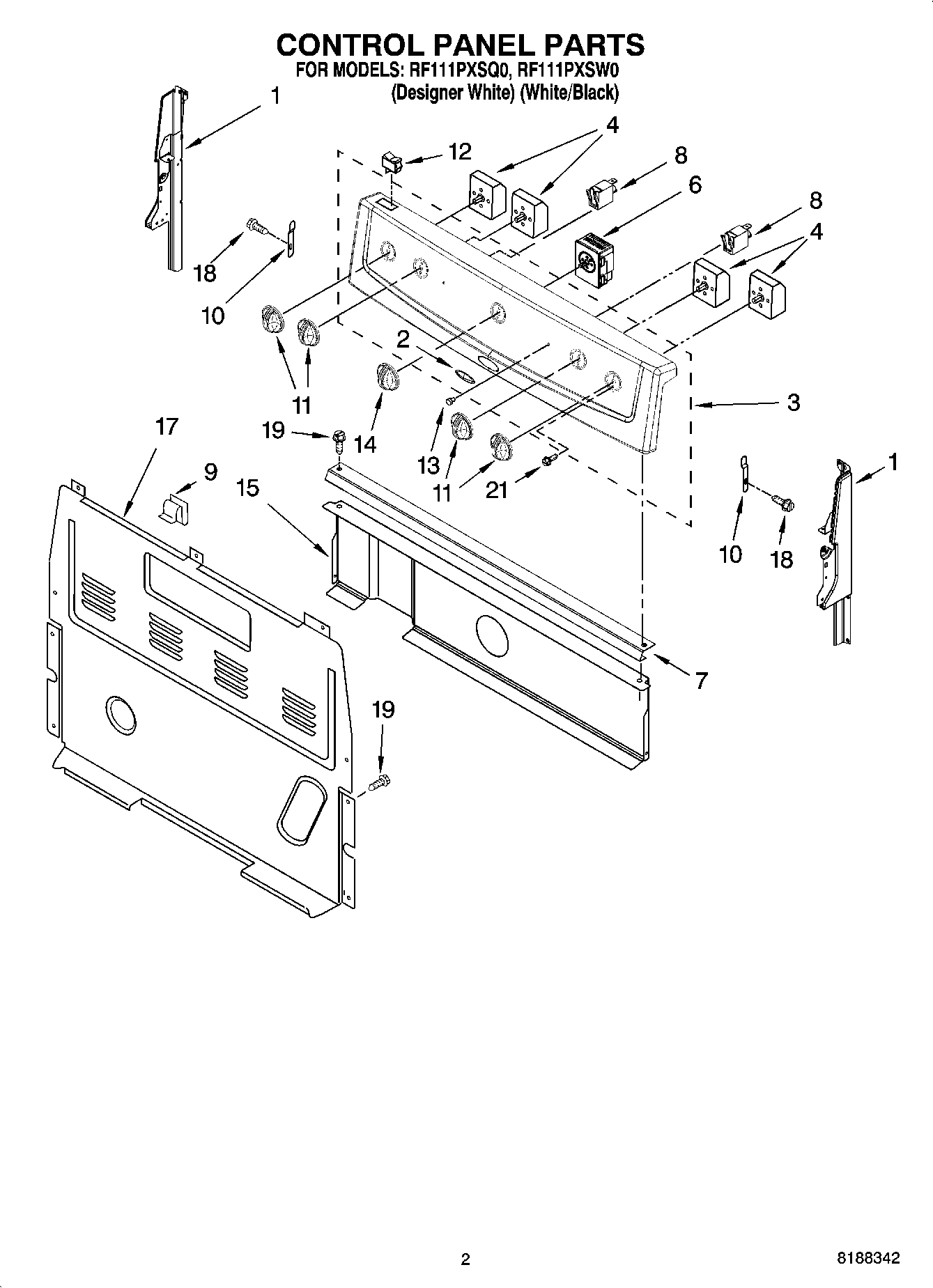

RF111PXSQ0 02 – CONTROL PANEL PARTS

RF111PXSQ0 02 – CONTROL PANEL PARTS

Written by

in

RF111PXSQ0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1W11219370 Whirlpool Endcap Panel
1W11219365 Whirlpool Panel Endcap
1W11219664 Whirlpool Endcap Panel
1W11219665 Whirlpool Panel Endcap
2Nameplate
3Panel, Backguard (Black)
3Panel, Backguard (White)
4SWITCH-INF
4WP3149404 Whirlpool Oven Surface Element Switch
6WP9762215 Whirlpool Oven Switch
7Bracket, Console
8WP8523266 Whirlpool Indicator Light
9WP8273564 Whirlpool Clip
103196200 Whirlpool Clip
11WP9761962 Whirlpool Range Stove Burner Control Knob
11WP9761964 Whirlpool Knob
123149360 Whirlpool Light Switch
13WP3196068 Whirlpool Light Lens
14Knob, Thermostat (Black)
14Knob, Thermostat (White)
15Shield, Heat
17WP8272473 Whirlpool Rear Cover
183196166 Whirlpool Screw
19SCREW
21WP3400882 Whirlpool Screw
