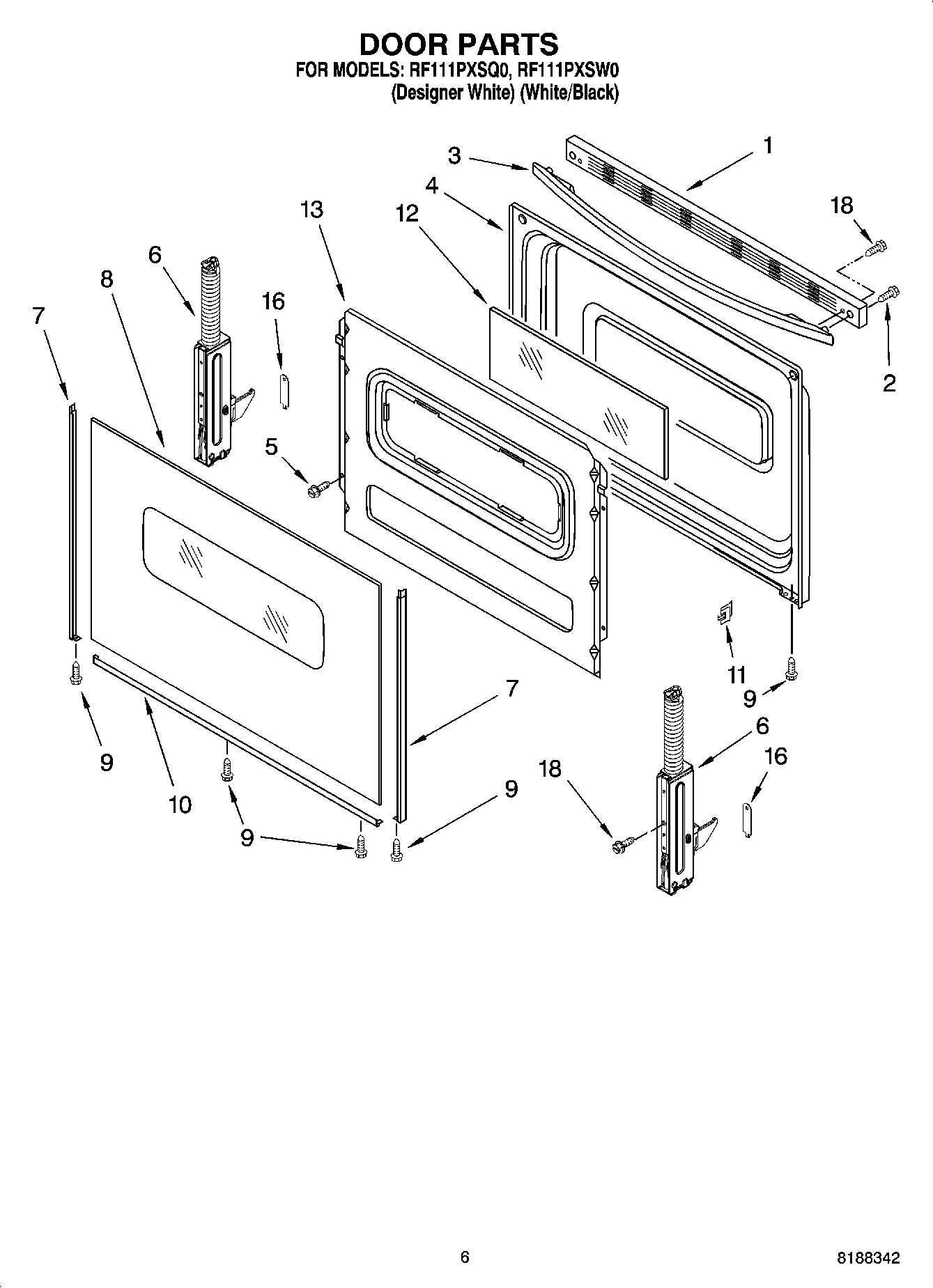

RF111PXSQ0 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

RF111PXSQ0 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

RF111PXSQ0 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
WPL ARI121519A
WP3196174 Whirlpool Screw
Wire (14 Ga. 200 c Brown)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
242831 Whirlpool Oven Wire
Clip, Ground Wire
8212471 Whirlpool Oven Paint
3184020 Whirlpool Oven Wire
Grease
WPL ARI121518A
WPL ARI121517A
WPL ARI121516A
WPL ARI121515A
WPL ARI121514A
WPL ARI121513A
WPL ARI121512A
WPL W10036230
W11396691 Whirlpool Element Receptacle and Wire Kit
WP3196154 Whirlpool Screw Assembly
3400964 Whirlpool Oven Clip
350930 Whirlpool White Spray Paint
350942 Whirlpool Spray Paint
WP72107 Whirlpool Touchup
FOIL, ALUMINUM OVEN (18“ X 25 )
WPW10208653 Whirlpool Insulation
WPL 799832
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
511873 Whirlpool Refrigerator Paint
4392899 Whirlpool Biscuit Touch-Up Paint
Almond (Uncut)
Wire, 25` Roll (Red 14 Ga.)
350956 Whirlpool Spray Assembly
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
W11447673 Whirlpool Range Tip Anchor
814381 Whirlpool Pin
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
285006 Whirlpool Spray
4392901 Whirlpool Biscuit Spray Paint
1Trim, Top (White)
1WP9762391 Whirlpool Door Trim Assembly
2WP3196164 Whirlpool Screw
3Handle, Door (White)
3Handle, Door (Black)
49761340 Whirlpool Oven Door Liner
5WPW10031790 Whirlpool Screw
6W10347465 Whirlpool Door Hinge
7W10761014 Whirlpool Right Door Trim
7WP8523172 Whirlpool Left Door Trim
7WP8523166 Whirlpool Door Trim
7W10761018 Whirlpool Dishwasher Left Door Trim
8WP9762476 Whirlpool Door Glass
8WP9762477 Whirlpool Glass Door
9W10491985 Whirlpool Screw
10WP8523175 Whirlpool Door Trim Assembly
10WP8523177 Whirlpool Door Trim Assembly
11Clip, Glass (4)
12WP9758163 Whirlpool Door Glass Assembly
139761500 Whirlpool Oven Retainer
169761517 Whirlpool Oven Clip Assembly
18W10777162 Whirlpool Screw
