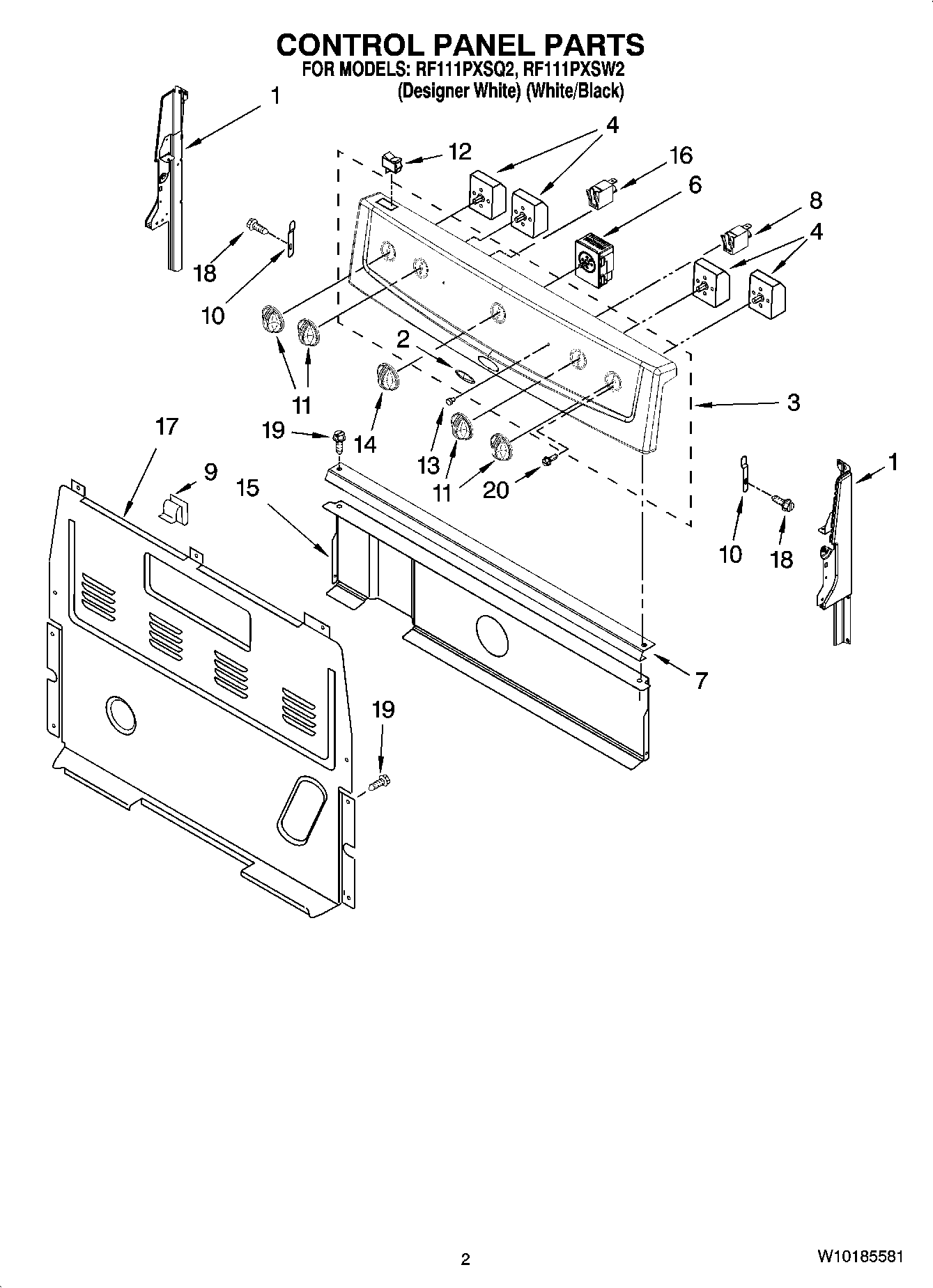

RF111PXSQ2 02 – CONTROL PANEL PARTS

Products

Position	Product
1	W11219365 Whirlpool Panel Endcap
1	W11219370 Whirlpool Endcap Panel
1	W11219665 Whirlpool Panel Endcap
1	W11219664 Whirlpool Endcap Panel
2	Nameplate
3	Panel, Backguard (Black)
3	Panel, Backguard (White)
4	WP3149404 Whirlpool Oven Surface Element Switch
4	SWITCH-INF
6	WP9762215 Whirlpool Oven Switch
7	Bracket, Console
8	WP8523266 Whirlpool Indicator Light
9	WP8273564 Whirlpool Clip
10	3196200 Whirlpool Clip
11	WP9761962 Whirlpool Range Stove Burner Control Knob
11	WP9761964 Whirlpool Knob
12	3149360 Whirlpool Light Switch
13	WP3196068 Whirlpool Light Lens
14	Knob, Thermostat (Black)
14	Knob, Thermostat (White)
15	Shield, Heat
16	WP8523265 Whirlpool Indicator Light
17	WP8272473 Whirlpool Rear Cover
18	3196166 Whirlpool Screw
19	SCREW
20	WP3400882 Whirlpool Screw
