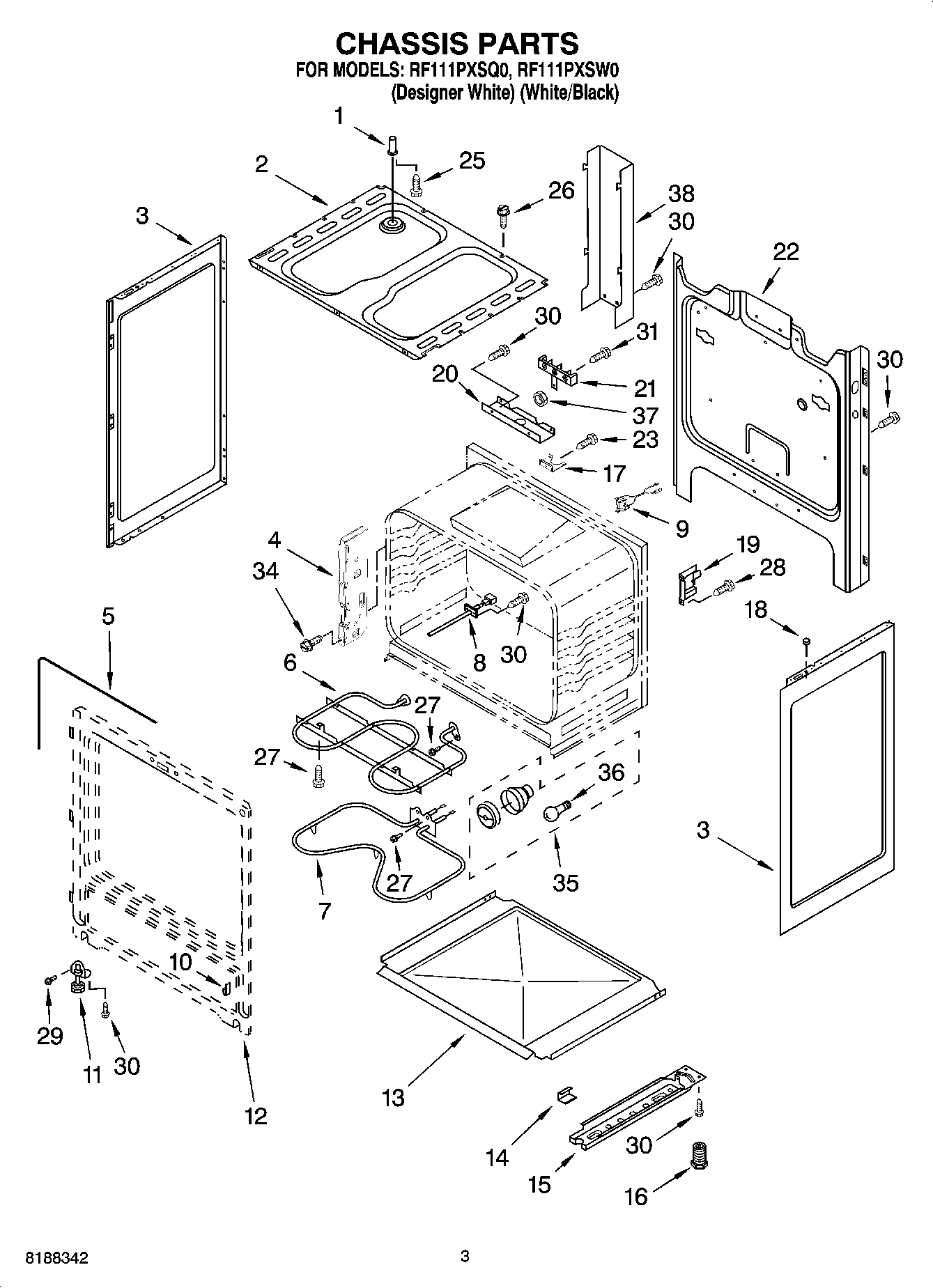

RF111PXSW0 03 – CHASSIS PARTS

Products

Position	Product
1	9755804 Whirlpool Oven Vent Tube
2	W11699791 Whirlpool Burner Box
3	WPW10575396 Whirlpool Side Panel
4	W10647259 Whirlpool Hinge Receiver
5	W11542153 Whirlpool Door Gasket
6	W10856603 Whirlpool Broil Element
7	WPW10308477 Whirlpool Bake Element
8	WPW10181986 Whirlpool Oven Sensor
9	9757158 Whirlpool Oven Thermostat
10	WPW10114344 Whirlpool Drawer Glide
11	WP3196037 Whirlpool Leveling Foot
12	Frame, Front (Non-Serviceable)
13	WP8054068 Whirlpool Retainer
14	Clip, Panel (6)
15	WPW10306546 Whirlpool Base Rail
16	WPW10058460 Whirlpool Appliance Levelling Leg
17	Brkt, Thermostat
18	238614 Whirlpool Bumper Hinge
19	W10404688 Whirlpool Bracket Support
20	W11728255 Whirlpool Service Bracket
21	WP9761958 Whirlpool Range Terminal Block
22	Back, Main
23	3196172 Whirlpool Oven Screw
25	WP3196567 Whirlpool Screw
26	WP3400832 Whirlpool Screw
27	WP3196174 Whirlpool Screw
28	WP3196557 Whirlpool Screw
29	Screw
30	SCREW
31	WP3400016 Whirlpool Screw Assembly
34	W10777162 Whirlpool Screw
35	W11594027 Whirlpool Range Oven Light Socket
36	RANGE ONLY 40W 120V APPL BULB
37	WP112432 Whirlpool Nut Assembly
38	WPW10208653 Whirlpool Insulation
38	WPW10326122 Whirlpool Black Cover
38	W11311894 Whirlpool Insulation
38	Insulation
