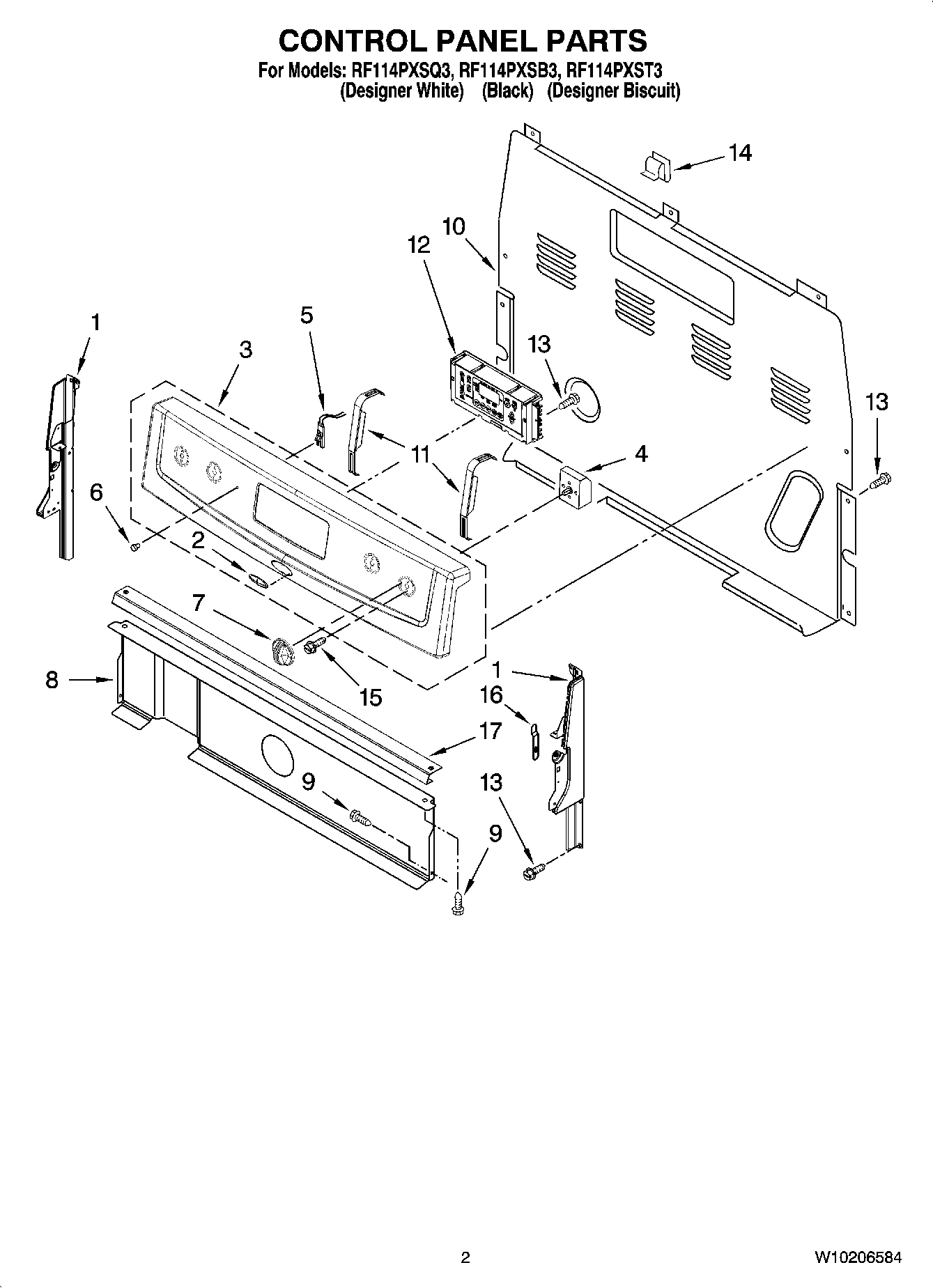

RF114PXSB3 02 – CONTROL PANEL PARTS

RF114PXSB3 02 – CONTROL PANEL PARTS

Written by

in

RF114PXSB3 02 – CONTROL PANEL PARTS

Products

PositionProduct
1W11219664 Whirlpool Endcap Panel
1Endcap (Biscuit Left Hand)
1W11230612 Whirlpool Panel End Cap
1W11219370 Whirlpool Endcap Panel
1W11219365 Whirlpool Panel Endcap
1W11219665 Whirlpool Panel Endcap
2Nameplate
3Panel, Control (White)
3Panel, Control (Biscuit)
3Panel, Console (Black)
4WP3149400 Whirlpool Oven Infinite Switch
4WP3148952 Whirlpool Oven Infinite Switch
5WP8523265 Whirlpool Indicator Light
6WP3196068 Whirlpool Light Lens
7WP9761964 Whirlpool Knob
7WP9761962 Whirlpool Range Stove Burner Control Knob
7WP9761963 Whirlpool Knob Assembly
8Shield, Heat
93196166 Whirlpool Screw
10WP8272473 Whirlpool Rear Cover
11BRACKET, MOUNTING EOC
12Control, Range (Biscuit)
12WPW10108290 Whirlpool Electronic Control Board
13SCREW
14WP8273564 Whirlpool Clip
15WP3400882 Whirlpool Screw
163196200 Whirlpool Clip
17W10525121 Whirlpool Control Bracket
