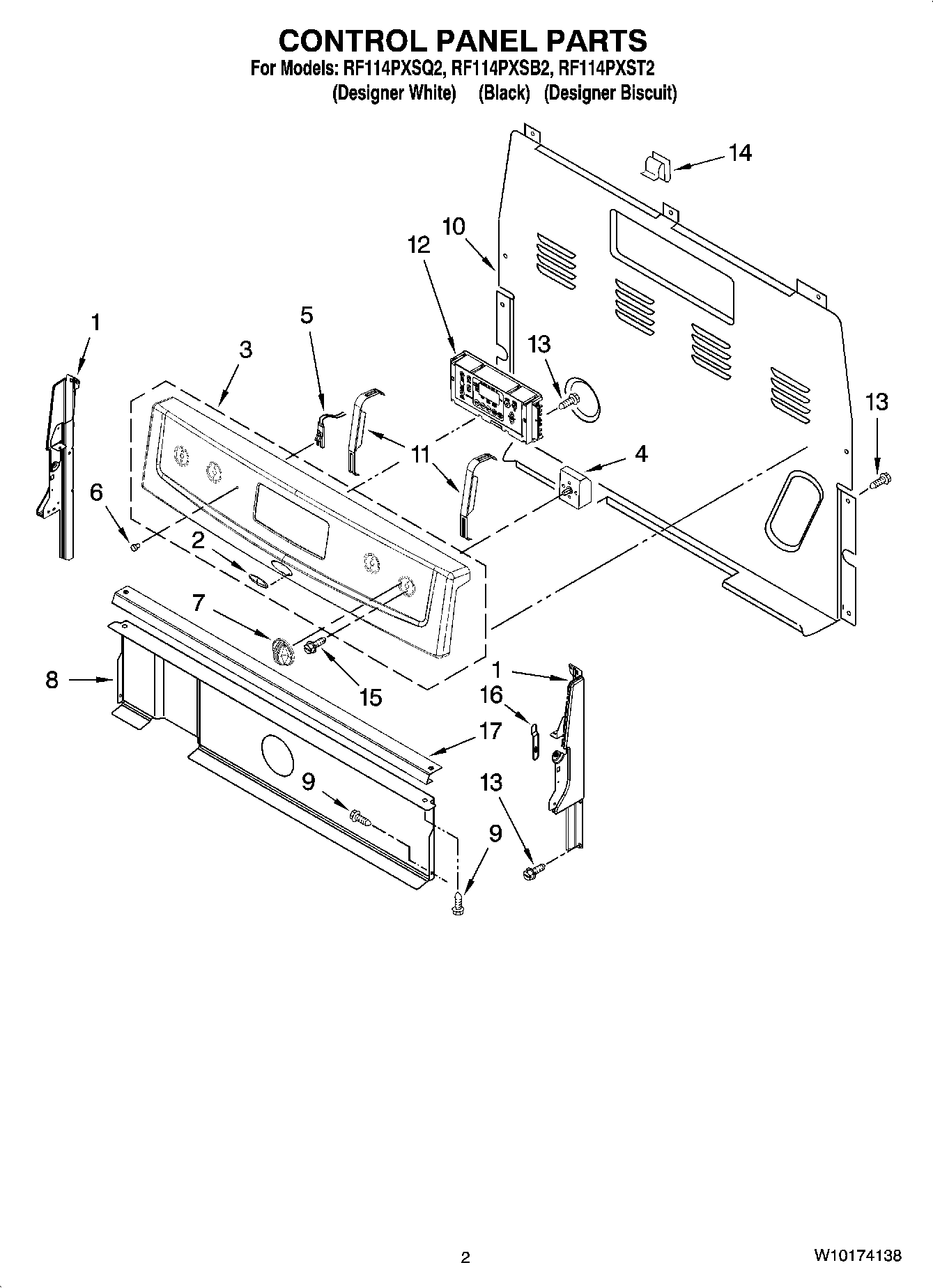

RF114PXST2 02 – CONTROL PANEL PARTS
Written by
in
RF114PXST2 02 – CONTROL PANEL PARTS
Products
Position
Product
1
W11219665 Whirlpool Panel Endcap
1
W11230612 Whirlpool Panel End Cap
1
W11219370 Whirlpool Endcap Panel
1
Endcap (Biscuit Left Hand)
1
W11219664 Whirlpool Endcap Panel
1
W11219365 Whirlpool Panel Endcap
2
Nameplate
3
Panel, Control (Biscuit)
3
Panel, Control (Black)
3
Panel, Control (White)
4
WP3149400 Whirlpool Oven Infinite Switch
4
WP3148952 Whirlpool Oven Infinite Switch
5
WP8523265 Whirlpool Indicator Light
6
WP3196068 Whirlpool Light Lens
7
WP9761963 Whirlpool Knob Assembly
7
WP9761964 Whirlpool Knob
7
WP9761962 Whirlpool Range Stove Burner Control Knob
8
Shield, Heat
9
3196166 Whirlpool Screw
10
WP8272473 Whirlpool Rear Cover
11
BRACKET, MOUNTING EOC
12
WPW10108290 Whirlpool Electronic Control Board
12
Control, Range (Biscuit)
13
SCREW
14
WP8273564 Whirlpool Clip
15
WP3400882 Whirlpool Screw
16
3196200 Whirlpool Clip
17
Bracket, Console
←
