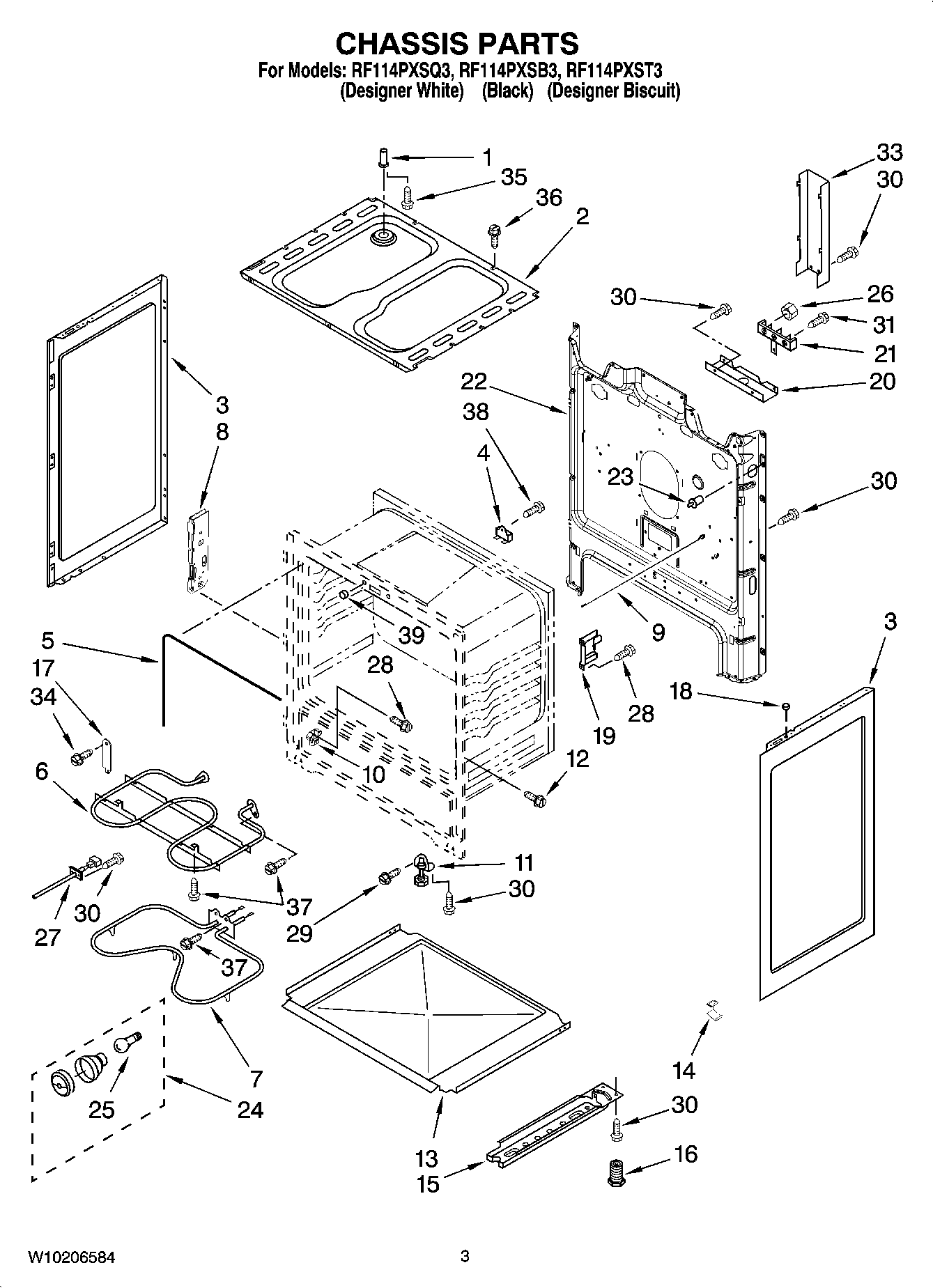

RF114PXST3 03 – CHASSIS PARTS

RF114PXST3 03 – CHASSIS PARTS

Written by

in

RF114PXST3 03 – CHASSIS PARTS

Products

PositionProduct
WPW10208653 Whirlpool Insulation
W11311894 Whirlpool Insulation
Insulation
19755804 Whirlpool Oven Vent Tube
2W11699791 Whirlpool Burner Box
3W10162246 Whirlpool Side Panel
3W11730303 Whirlpool Side Panel
3WPW10575396 Whirlpool Side Panel
4WP3196548 Whirlpool Thermal Fuse
5W11542153 Whirlpool Door Gasket
6W10856603 Whirlpool Broil Element
7WPW10308477 Whirlpool Bake Element
8W10647259 Whirlpool Hinge Receiver
99757239 Whirlpool Oven Door Rod
10WPW10114344 Whirlpool Drawer Glide
11WP3196037 Whirlpool Leveling Foot
12WPW10067840 Whirlpool Screw
13WP8054068 Whirlpool Retainer
14Clip, Panel (6)
15WPW10306546 Whirlpool Base Rail
16WPW10058460 Whirlpool Appliance Levelling Leg
179761517 Whirlpool Oven Clip Assembly
18238614 Whirlpool Bumper Hinge
19W10404688 Whirlpool Bracket Support
20W11728255 Whirlpool Service Bracket
21WP9761958 Whirlpool Range Terminal Block
22Back, Main
23WP9757262 Whirlpool Light Switch
24W11594027 Whirlpool Range Oven Light Socket
25RANGE ONLY 40W 120V APPL BULB
26WP112432 Whirlpool Nut Assembly
27WPW10181986 Whirlpool Oven Sensor
28WP3196557 Whirlpool Screw
29Screw
30SCREW
31WP3400016 Whirlpool Screw Assembly
33WPW10326122 Whirlpool Black Cover
34W10777162 Whirlpool Screw
35WP3196567 Whirlpool Screw
36WP3400832 Whirlpool Screw
37WP3196174 Whirlpool Screw
383196172 Whirlpool Oven Screw
39W10877054 Whirlpool Spacer Assembly
