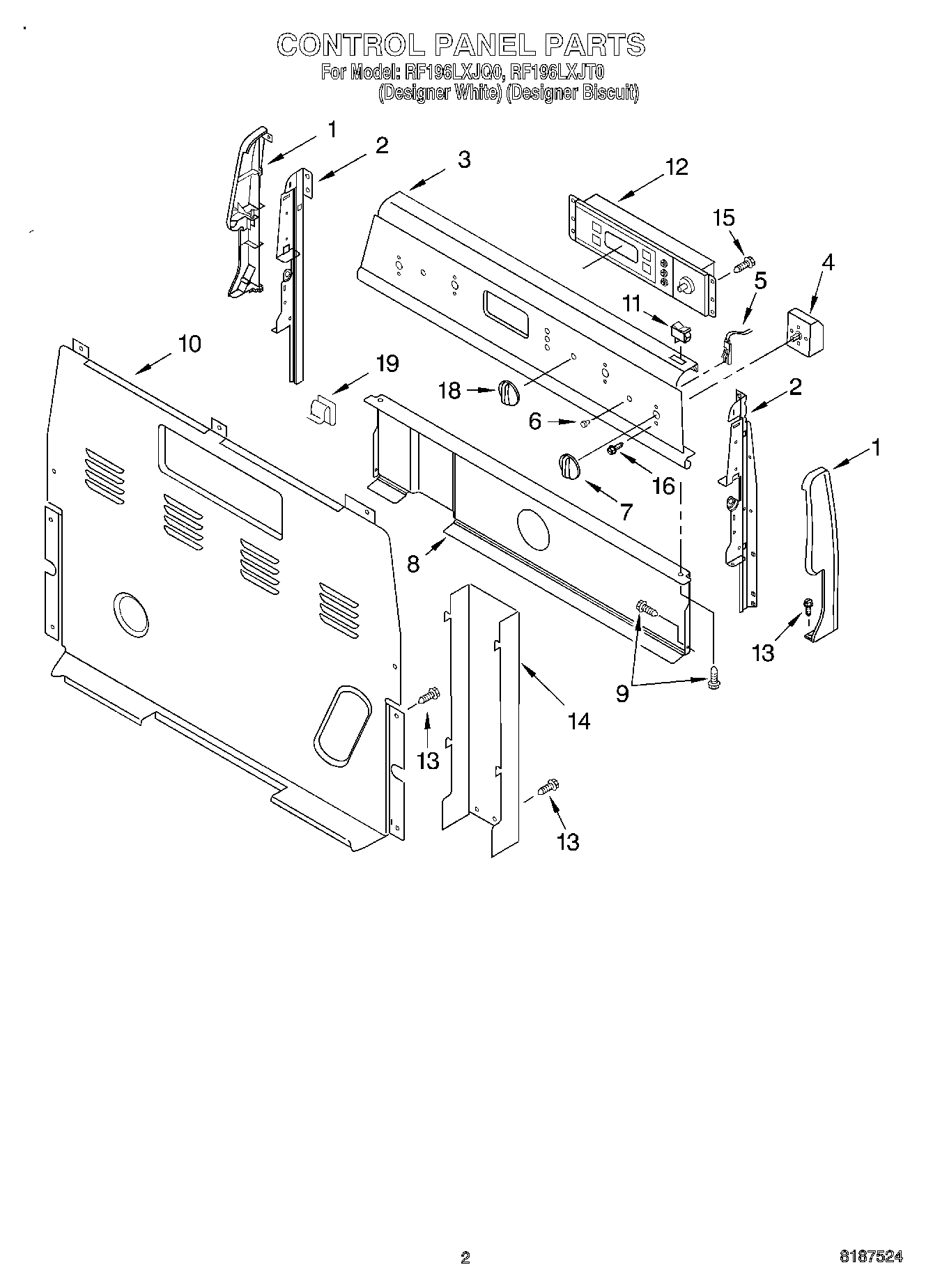

RF196LXJQ0 02 – CONTROL PANEL

RF196LXJQ0 02 – CONTROL PANEL

Written by

in

RF196LXJQ0 02 – CONTROL PANEL

Products

PositionProduct
1Endcap (Biscuit Right Hand)
1Endcap (Biscuit Left Hand)
1Endcap (White Right Hand)
1Endcap (White Left Hand)
2Support, Endcap (Right Hand)
2Support, Endcap (Left Hand)
3Panel, Backguard (White)
3Panel, Backguard (Biscuit)
4WP3149400 Whirlpool Oven Infinite Switch
4WP3148952 Whirlpool Oven Infinite Switch
4WP3149404 Whirlpool Oven Surface Element Switch
5Light, Indicator (Surface Unit (2))
6WP3196068 Whirlpool Light Lens
7WP3196231 Whirlpool Knob
7WP3196232 Whirlpool Knob
8Shield, Heat
9Screw
10WP8272473 Whirlpool Rear Cover
11Switch, Rocker (Biscuit)
113149360 Whirlpool Light Switch
12Control-Range (White)
12Control, Range (Biscuit)
13SCREW
14WPW10326122 Whirlpool Black Cover
15WP3196557 Whirlpool Screw
16WP3400882 Whirlpool Screw
18Knob, 150 Control (White)
18Knob, 150 Control (Biscuit)
19WP8273564 Whirlpool Clip
