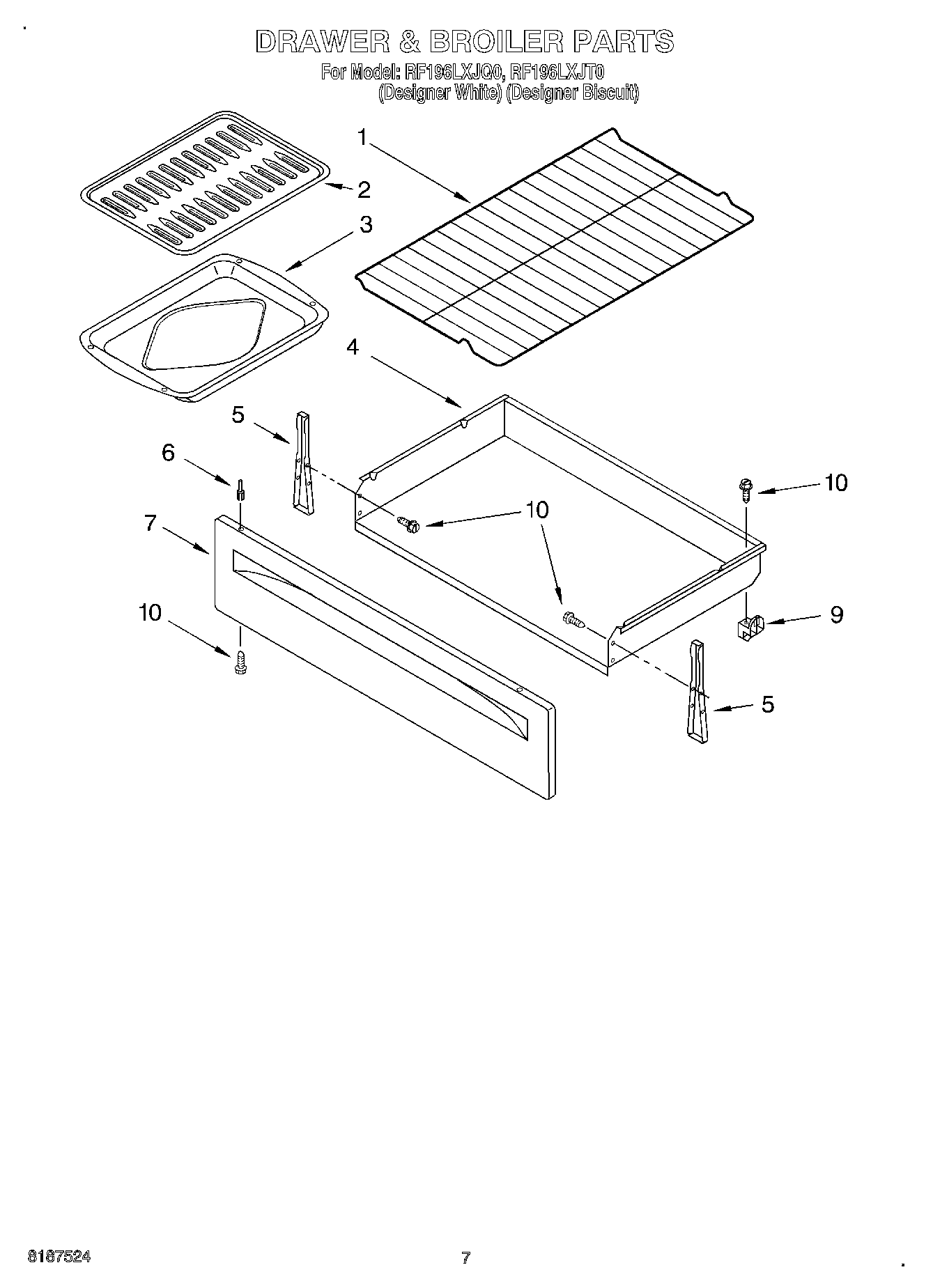

RF196LXJQ0 05 – DRAWER & BROILER, OPTIONAL

Products

Position	Product
1	WPW10256908 Whirlpool Oven Range Rack
2	WP3195996 Whirlpool Pan Grid
3	WP3196076 Whirlpool Broil Pan
4	Drawer, Storage
5	W10838990 Whirlpool Mounting Bracket
6	3196815 Whirlpool Oven Rivet
6	WP3196814 Whirlpool Rivet
7	W11219377 Whirlpool Drawer Panel
7	W11230476 Whirlpool Drawer Panel
9	WP8053334 Whirlpool Drawer Glide
10	Wire (14 Ga. 200 c Brown)
10	18 Ga. 80~c Rating (Red)
10	Wire (12 Ga. 150 c Black)
10	Wire (14 Ga. 150 c Yellow)
10	Wire (14 Ga. 150 c Orange)
10	WPL 8273304
10	1
10	WP3400832 Whirlpool Screw
10	WPL 8273305
10	WPL 8272999
10	WPL 8273266
10	WP3196154 Whirlpool Screw Assembly
10	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
10	Grease
10	3196696 Whirlpool Clip
10	3184020 Whirlpool Oven Wire
10	8212471 Whirlpool Oven Paint
10	W11244557 Whirlpool Screw
10	Wire (14 Ga. 150 c Green)
10	Wire (14 Ga. 150 c Brown)
10	FOIL, ALUMINUM OVEN (18“ X 25 )
10	WPW10208653 Whirlpool Insulation
10	WPL 799832
10	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
10	4392901 Whirlpool Biscuit Spray Paint
10	4392899 Whirlpool Biscuit Touch-Up Paint
10	350942 Whirlpool Spray Paint
10	799344 Whirlpool Refrigerator Paint
10	72017 Whirlpool Appliance Touch-Up Paint White
10	Wire, 25` Roll (Black 14 Ga.)
10	Wire, 25` Roll (Red 14 Ga.)
10	Wire (14 Ga. 150 c Blue)
10	242831 Whirlpool Oven Wire
10	511873 Whirlpool Refrigerator Paint
10	Clip, Ground Wire
10	3400964 Whirlpool Oven Clip
10	814381 Whirlpool Pin
10	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
10	285006 Whirlpool Spray
10	Wire, 25“ Roll (White 14 GA.)
10	350930 Whirlpool White Spray Paint
