RF196LXKP0 02 – CONTROL PANEL

RF196LXKP0 02 – CONTROL PANEL

Written by

in

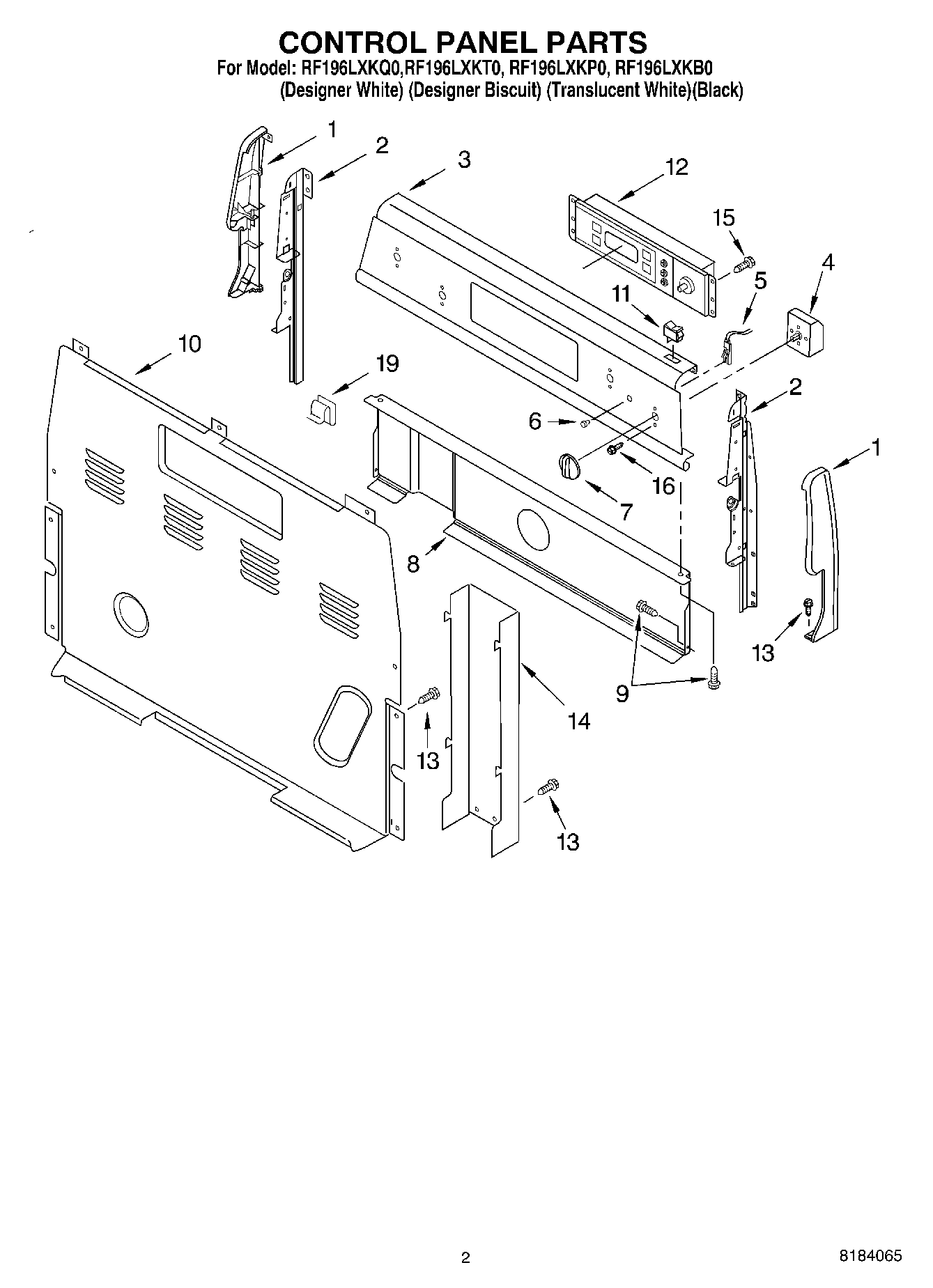

RF196LXKP0 02 – CONTROL PANEL

Products

PositionProduct
1Endcap (Biscuit Left Hand)
1Endcap (Biscuit Right Hand)
1Endcap (White Right Hand)
1Endcap (White Left Hand)
2Support, Endcap (Right Hand)
2Support, Endcap (Left Hand)
3Panel, Backguard (Black)
3Panel, Backguard (White)
3Panel, Backguard (Biscuit)
4SWITCH-INF
4WP3148952 Whirlpool Oven Infinite Switch
5Light, Indicator (Surface Unit (2))
6WP3196068 Whirlpool Light Lens
7WP8522566 Whirlpool Knob
7Knob, Control (4) (Biscuit)
7WP8522565 Whirlpool Knob
8Shield, Heat
9Screw
10WP8272473 Whirlpool Rear Cover
11WP4314961 Whirlpool Lite Switch
113149360 Whirlpool Light Switch
11Switch, Rocker (Biscuit)
12WP6610456-includeCORE Whirlpool WP6610456 Washer Electronic Control Board + Core
13SCREW
14WPW10326122 Whirlpool Black Cover
15WP3196557 Whirlpool Screw
16WP3400882 Whirlpool Screw
19WP8273564 Whirlpool Clip
