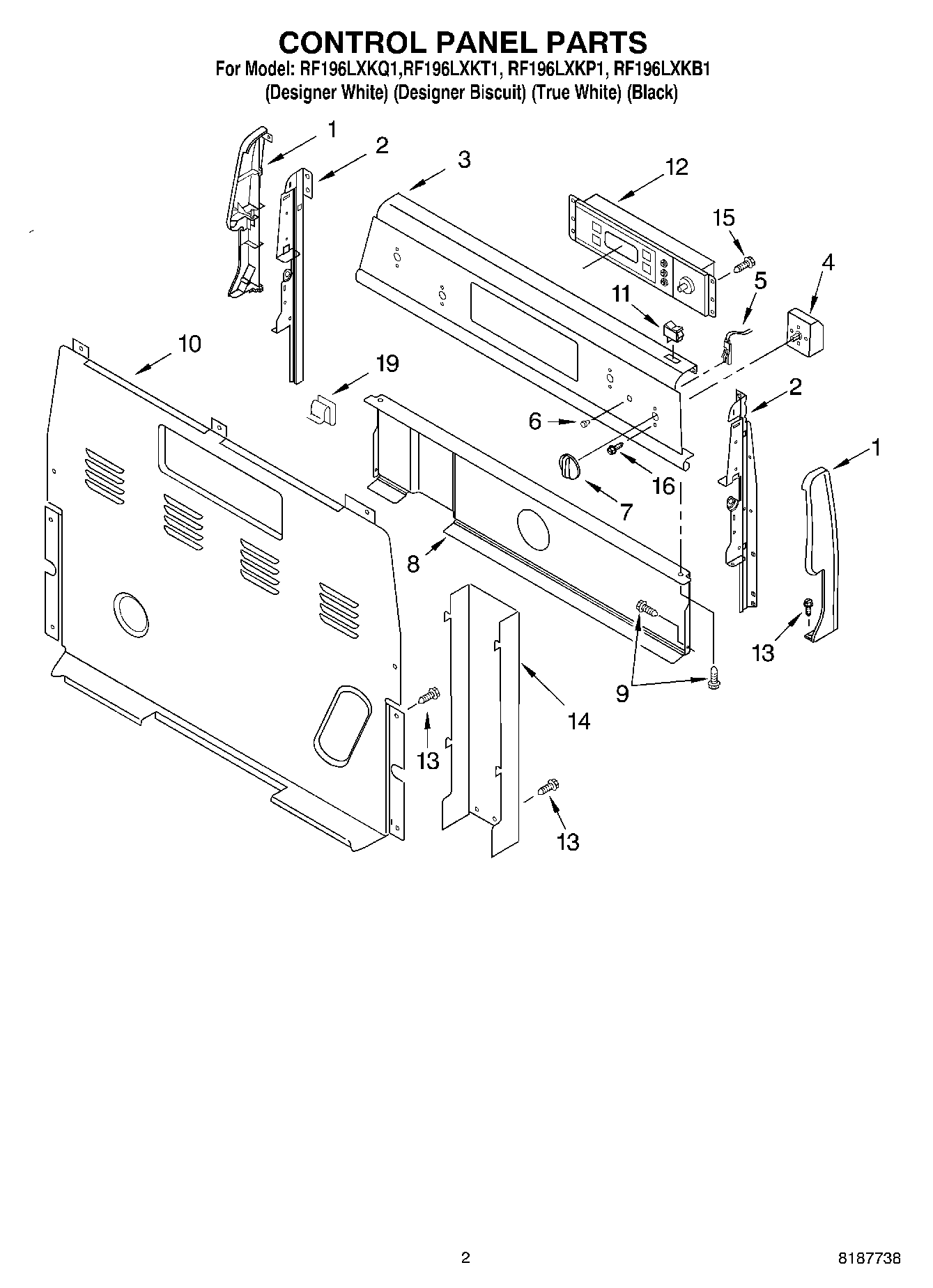

RF196LXKP1 02 – CONTROL PANEL PARTS

Products

Position	Product
1	Endcap (Biscuit Right Hand)
1	Endcap (Black Left Hand)
1	Endcap (White Right Hand)
1	Endcap (White Left Hand)
1	Endcap, Right Hand (Black)
1	Endcap (Biscuit Left Hand)
2	Support, Endcap (Right Hand)
2	Support, Endcap (Left Hand)
3	Panel, Backguard (Biscuit)
3	Panel, Backguard (White)
3	Panel, Backguard (Black)
4	SWITCH-INF
4	WP3148952 Whirlpool Oven Infinite Switch
5	WP8523265 Whirlpool Indicator Light
6	WP3196068 Whirlpool Light Lens
7	WP8522566 Whirlpool Knob
7	Knob, Control (4) (Biscuit)
7	WP8522565 Whirlpool Knob
8	Shield, Heat
9	Screw
10	WP8272473 Whirlpool Rear Cover
11	3149360 Whirlpool Light Switch
11	Switch, Rocker (Biscuit)
11	WP4314961 Whirlpool Lite Switch
12	WP6610456-includeCORE Whirlpool WP6610456 Washer Electronic Control Board + Core
13	SCREW
14	WPW10326122 Whirlpool Black Cover
15	WP3196557 Whirlpool Screw
16	WP3400882 Whirlpool Screw
19	WP8273564 Whirlpool Clip
