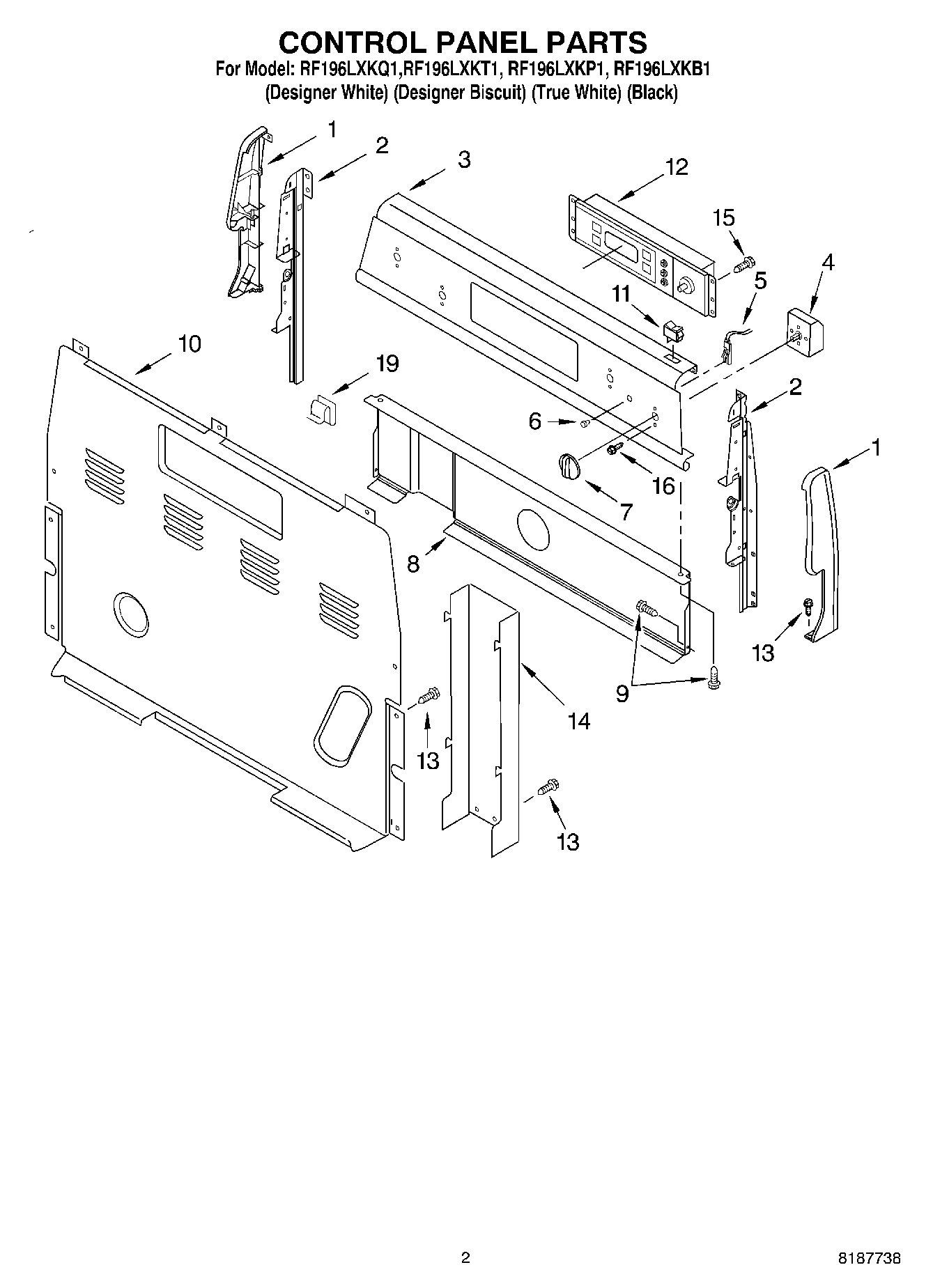

RF196LXKQ1 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Endcap (Biscuit Right Hand)
1Endcap (Black Left Hand)
1Endcap (White Right Hand)
1Endcap (White Left Hand)
1Endcap, Right Hand (Black)
1Endcap (Biscuit Left Hand)
2Support, Endcap (Right Hand)
2Support, Endcap (Left Hand)
3Panel, Backguard (Biscuit)
3Panel, Backguard (White)
3Panel, Backguard (Black)
4SWITCH-INF
4WP3148952 Whirlpool Oven Infinite Switch
5WP8523265 Whirlpool Indicator Light
6WP3196068 Whirlpool Light Lens
7WP8522566 Whirlpool Knob
7Knob, Control (4) (Biscuit)
7WP8522565 Whirlpool Knob
8Shield, Heat
9Screw
10WP8272473 Whirlpool Rear Cover
113149360 Whirlpool Light Switch
11Switch, Rocker (Biscuit)
11WP4314961 Whirlpool Lite Switch
12WP6610456-includeCORE Whirlpool WP6610456 Washer Electronic Control Board + Core
13SCREW
14WPW10326122 Whirlpool Black Cover
15WP3196557 Whirlpool Screw
16WP3400882 Whirlpool Screw
19WP8273564 Whirlpool Clip
