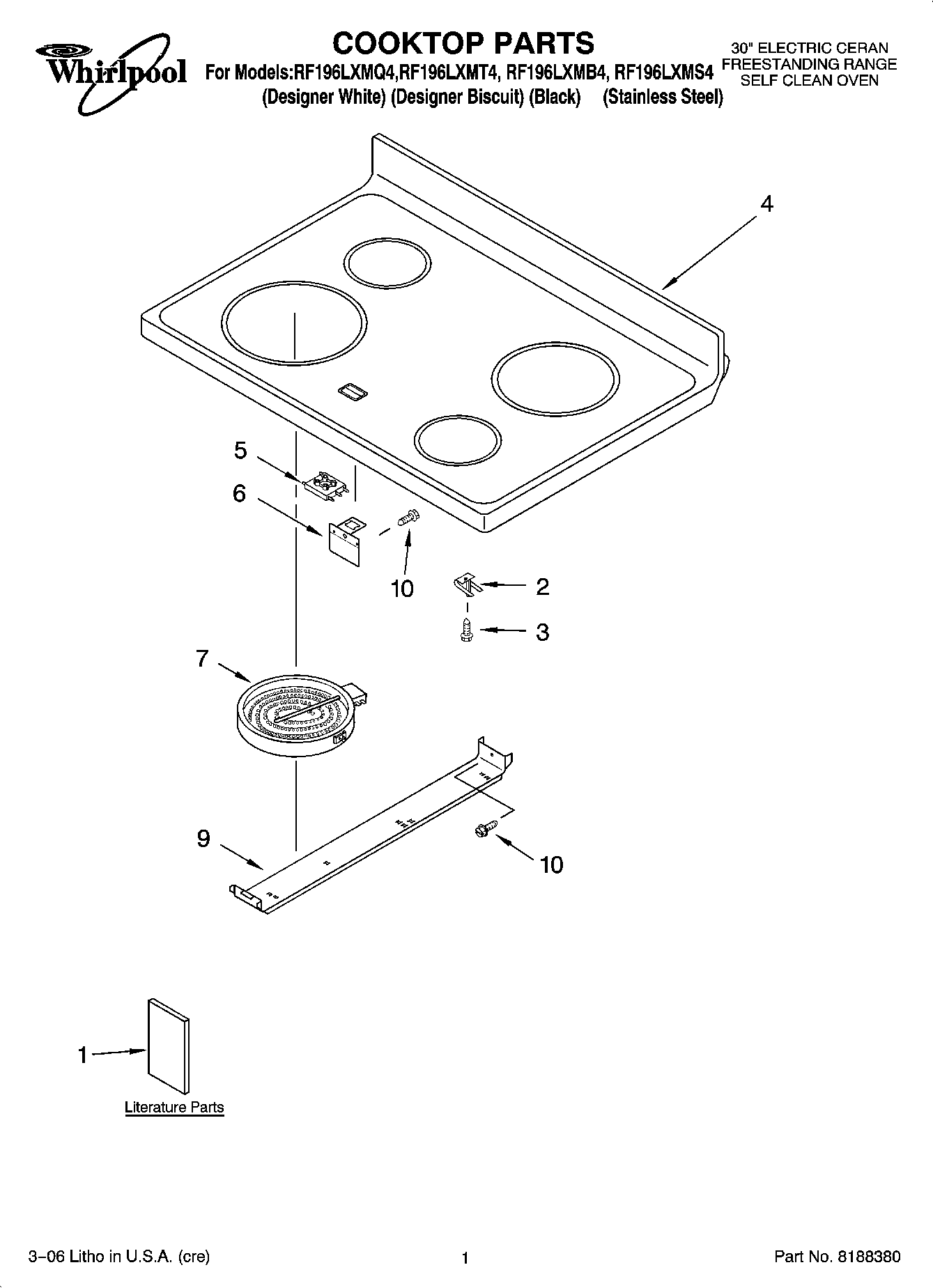

RF196LXMB4 01 – COOKTOP PARTS

Products

Position	Product
1	SAFER COOKING TIPS (ENGLISH
1	Owner`s Manual
1	Anti-Tip Template (English/French)
1	Anti-Tip Template (English/Spanish)
1	Installation Instructions Anti-Tip Template
1	Tech Sheet
2	Spring, Locator
3	WP3196170 Whirlpool Screw
4	Cooktop (White/White)
4	Cooktop (Biscuit)
4	Cooktop (Black)
5	Light, Indicator (Hot Surface)
6	Bracket, Ind Light
7	W10823699 Whirlpool Right Front Surface Element
7	WPW10242957 Whirlpool Element Surface Left Front / Right Rear 2000W
9	Bracket, Element
10	WP3196175 Whirlpool Screw
