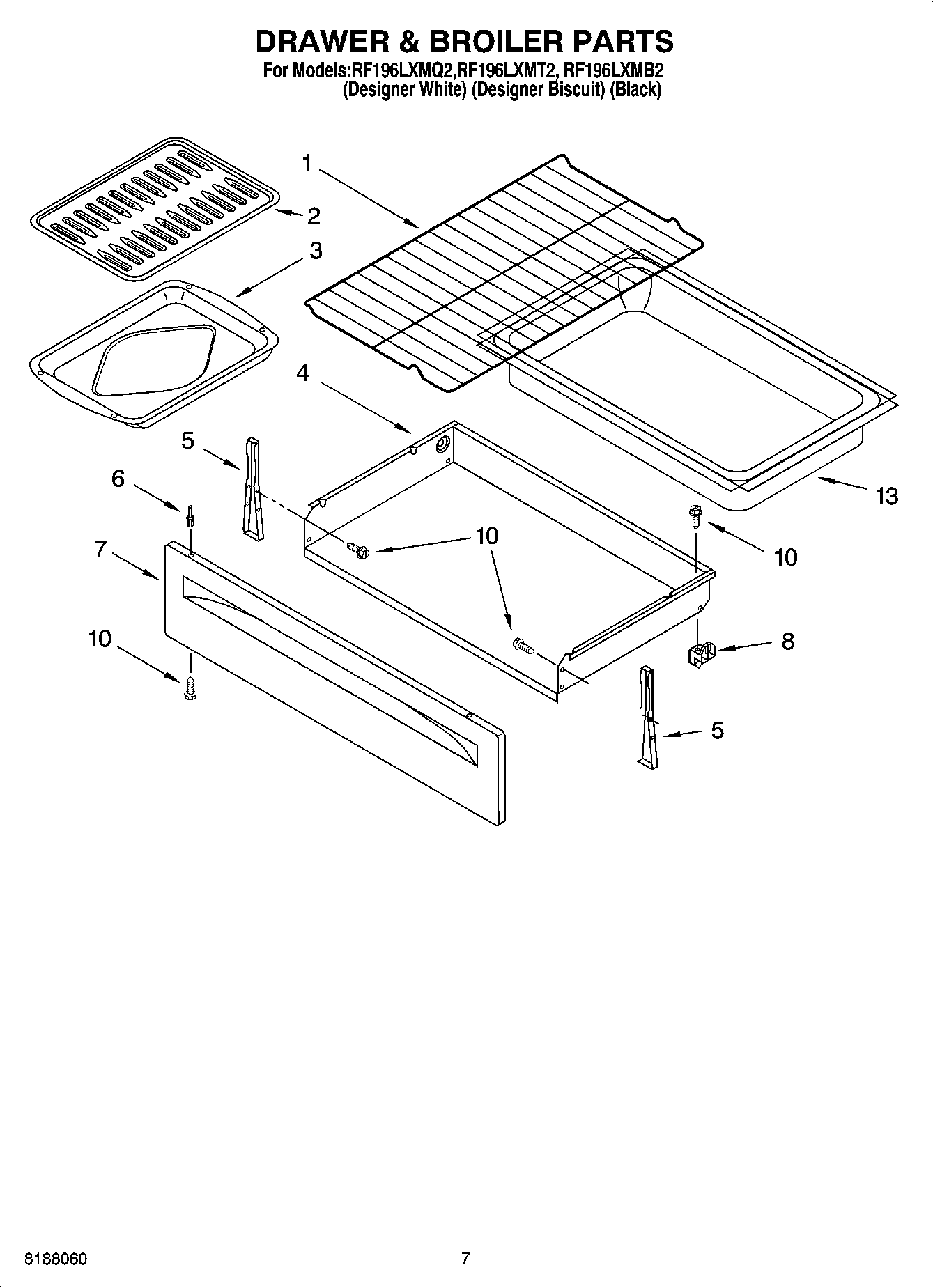

RF196LXMQ2 05 – DRAWER & BROILER PARTS, OPTIONAL PARTS

Products

Position	Product
	WPL ARI160023A
	WP3196154 Whirlpool Screw Assembly
	Grease
	8212471 Whirlpool Oven Paint
	W11244557 Whirlpool Screw
	Wire (14 Ga. 200 c Brown)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 150 c Yellow)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	WPL 8524132
	WPL ARI160024A
	WPL 8524088
	WPL ARI160022A
	WPL ARI160021A
	WPL ARI160020A
	WPL ARI160019A
	WPL ARI160018A
	WPL ARI160017A
	Harness, Wire (Oven Light)
	WPL 9759663
	WPL 9758173
	WPL 8524114
	Wire (14 Ga. 150 c Blue)
	242831 Whirlpool Oven Wire
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	285006 Whirlpool Spray
	Wire, 25` Roll (Red 14 Ga.)
	FOIL, ALUMINUM OVEN (18“ X 25 )
	WPW10208653 Whirlpool Insulation
	WPL 799832
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
	511873 Whirlpool Refrigerator Paint
	4392901 Whirlpool Biscuit Spray Paint
	4392899 Whirlpool Biscuit Touch-Up Paint
	350942 Whirlpool Spray Paint
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
	814381 Whirlpool Pin
	W11447673 Whirlpool Range Tip Anchor
	Clip, Ground Wire
	3184020 Whirlpool Oven Wire
	350930 Whirlpool White Spray Paint
1	WPW10256908 Whirlpool Oven Range Rack
2	WP3195996 Whirlpool Pan Grid
3	WP3196076 Whirlpool Broil Pan
4	Drawer, Storage
5	W10838990 Whirlpool Mounting Bracket
6	WP3196814 Whirlpool Rivet
6	3196815 Whirlpool Oven Rivet
6	WP3196813 Whirlpool Rivet
7	W11219377 Whirlpool Drawer Panel
7	W11230476 Whirlpool Drawer Panel
7	W11230488 Whirlpool Drawer Panel
8	WP8053334 Whirlpool Drawer Glide
10	WP3400832 Whirlpool Screw
13	Liner, Drawer
