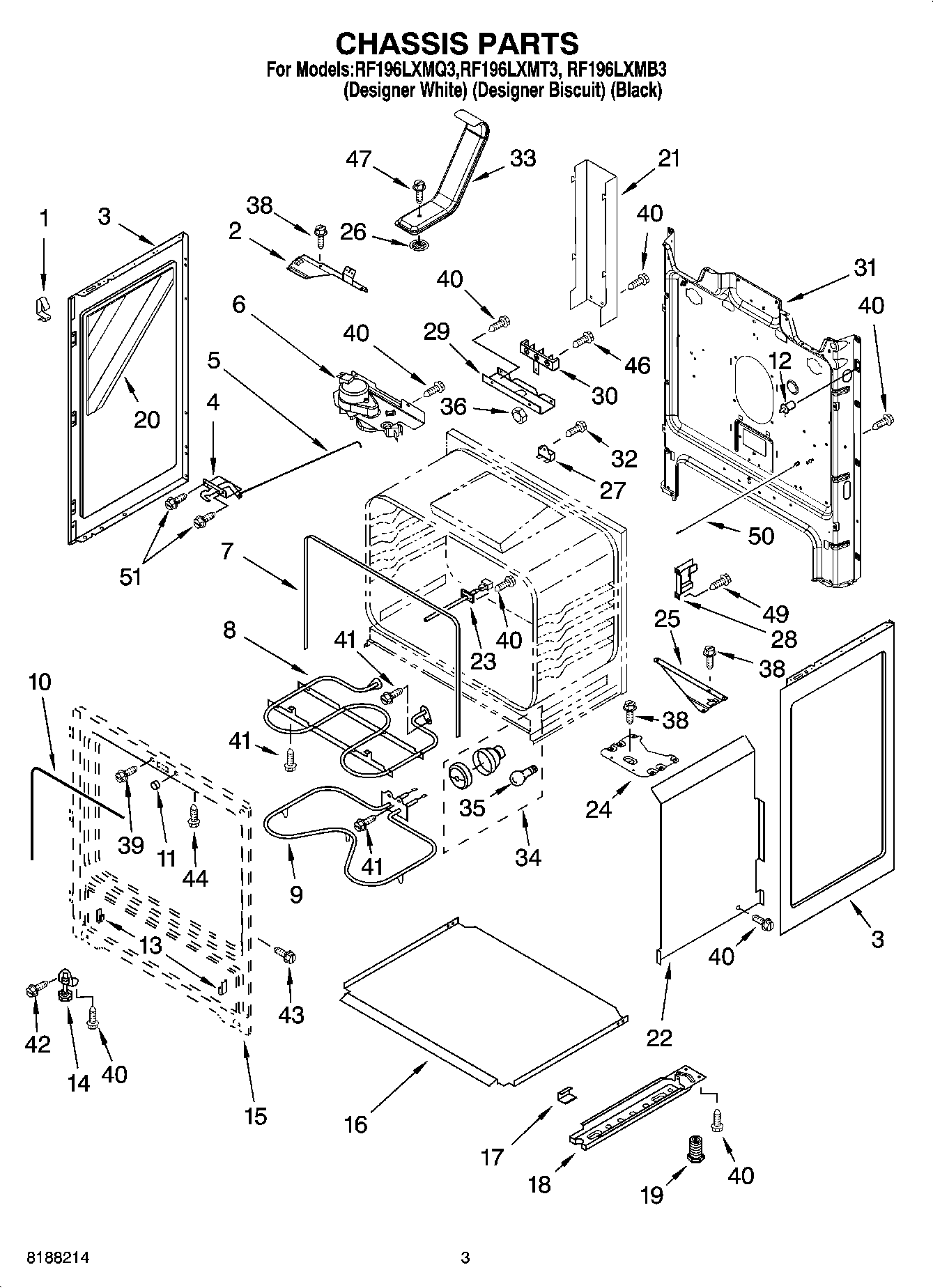

RF196LXMQ3 03 – CHASSIS PARTS

RF196LXMQ3 03 – CHASSIS PARTS

Written by

in

RF196LXMQ3 03 – CHASSIS PARTS

Products

PositionProduct
1Clip – Mounting
2Support, Corner LR
3W10162246 Whirlpool Side Panel
3WPW10575396 Whirlpool Side Panel
3W11730303 Whirlpool Side Panel
4WP9761013 Whirlpool Door Latch
5Rod, Latch
6WPW10107830 Whirlpool Stove Door Lock Latch Assembly
7Seal, Oven Flange
8W10856603 Whirlpool Broil Element
9WPW10308477 Whirlpool Bake Element
10W11542153 Whirlpool Door Gasket
11W10877054 Whirlpool Spacer Assembly
12W11243424 Whirlpool Light Switch
13WPW10114344 Whirlpool Drawer Glide
14WP3196037 Whirlpool Leveling Foot
15Frame, Front (Not Serviced)
16WP8054068 Whirlpool Retainer
17Clip, Panel (6)
18WPW10306546 Whirlpool Base Rail
19WPW10058460 Whirlpool Appliance Levelling Leg
20Insulation
21WPW10326122 Whirlpool Black Cover
22Retainer, Side (2)
23WPW10181986 Whirlpool Oven Sensor
24Support, Front (2)
25Support, Corner RR
269761301 Whirlpool Oven Screen
27WP3196548 Whirlpool Thermal Fuse
28W10404688 Whirlpool Bracket Support
29W11728255 Whirlpool Service Bracket
30WP9761958 Whirlpool Range Terminal Block
31Back, Main
323196172 Whirlpool Oven Screw
33WPW10134285 Whirlpool Vent Tube
34W11594027 Whirlpool Range Oven Light Socket
35RANGE ONLY 40W 120V APPL BULB
36WP112432 Whirlpool Nut Assembly
38WP3196175 Whirlpool Screw
39WP3400832 Whirlpool Screw
41WP3196174 Whirlpool Screw
42Screw
43WP7101P246-60 Whirlpool Screw
44SCREW
46WP3400016 Whirlpool Screw Assembly
47WP489491 Whirlpool Refrigerator Screw
49WP3196557 Whirlpool Screw
509757239 Whirlpool Oven Door Rod
518053915 Whirlpool Oven Insulation
51WP8272612 Whirlpool Insulation
51WPW10208653 Whirlpool Insulation
51Insulation
51W11169708 Whirlpool Screw
