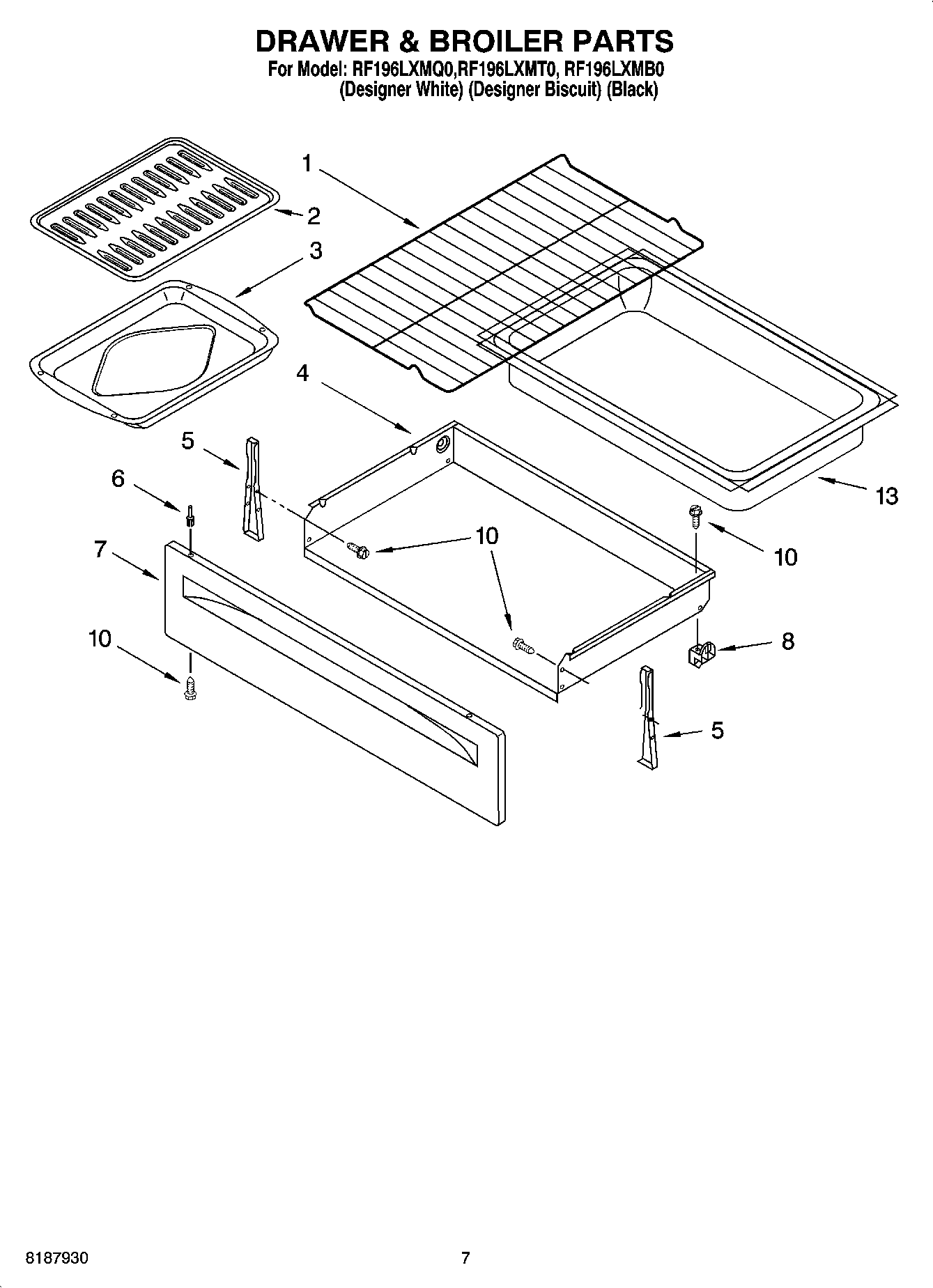

RF196LXMT0 05 – DRAWER & BROILER PARTS, MISCELLANEOUS PARTS

RF196LXMT0 05 – DRAWER & BROILER PARTS, MISCELLANEOUS PARTS

Written by

in

RF196LXMT0 05 – DRAWER & BROILER PARTS, MISCELLANEOUS PARTS

Products

PositionProduct
WPL ARI160063A
WP3196154 Whirlpool Screw Assembly
8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
Grease
3196696 Whirlpool Clip
8212471 Whirlpool Oven Paint
W11244557 Whirlpool Screw
1
Wire (14 Ga. 200 c Brown)
18 Ga. 80~c Rating (Red)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
WPL 8316781
WPL 8524132
WPL ARI160062A
WPL ARI160061A
WPL ARI160060A
WPL ARI160059A
WPL ARI160058A
WPL ARI160057A
Harness, Wire (Oven Light)
WPL 8523718
WPL 4454241
WPL 8524089
WPL 8524088
WPL ARI160064A
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
285006 Whirlpool Spray
Wire, 25“ Roll (White 14 GA.)
Wire, 25` Roll (Red 14 Ga.)
FOIL, ALUMINUM OVEN (18“ X 25 )
WPW10208653 Whirlpool Insulation
WPL 799832
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
511873 Whirlpool Refrigerator Paint
4392901 Whirlpool Biscuit Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
350942 Whirlpool Spray Paint
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
350930 Whirlpool White Spray Paint
8528351 Whirlpool Clip
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
814381 Whirlpool Pin
Wire (14 Ga. 150 c Blue)
242831 Whirlpool Oven Wire
3184020 Whirlpool Oven Wire
Clip, Ground Wire
1WPW10256908 Whirlpool Oven Range Rack
2WP3195996 Whirlpool Pan Grid
3WP3196076 Whirlpool Broil Pan
4Drawer, Storage
5W10838990 Whirlpool Mounting Bracket
63196815 Whirlpool Oven Rivet
6WP3196814 Whirlpool Rivet
7W11230476 Whirlpool Drawer Panel
7W11230488 Whirlpool Drawer Panel
7W11219377 Whirlpool Drawer Panel
8WP8053334 Whirlpool Drawer Glide
10WP3400832 Whirlpool Screw
13Liner, Drawer
