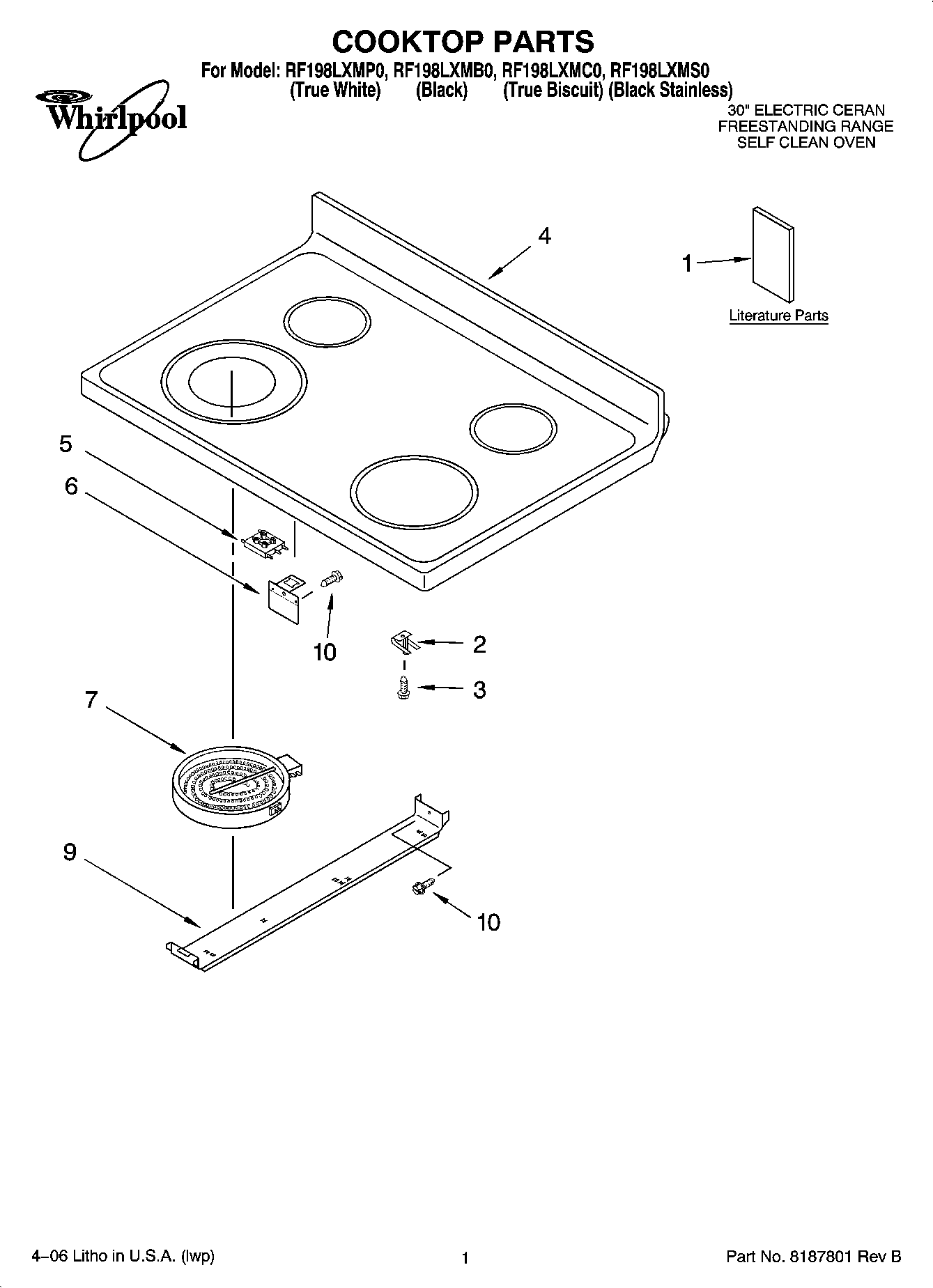

RF198LXMC0 01 – COOKTOP PARTS

RF198LXMC0 01 – COOKTOP PARTS

Written by

in

RF198LXMC0 01 – COOKTOP PARTS

Products

PositionProduct
1Safer Cooking Tips
1Literature Parts (English/Spanish)
1Literature Parts (Tech Sheet)
1Guide, Use & Care
1Literature Parts (Installation Instructions (English))
2Spring, Locator
3WP3196170 Whirlpool Screw
4Cooktop (Biscuit)
4Cooktop (Black/Black Glass)
4Cooktop (White/White Glass)
5Light, Indicator (Hot Surface)
6Bracket, Ind Light
7W10823711 Whirlpool Surface Element Left Front and Right Rear
7W10823696 Whirlpool Radiant Surface Element
7W10823692 Whirlpool Dual Radiant Element
9Bracket, Element ((2))
10WP3196557 Whirlpool Screw
