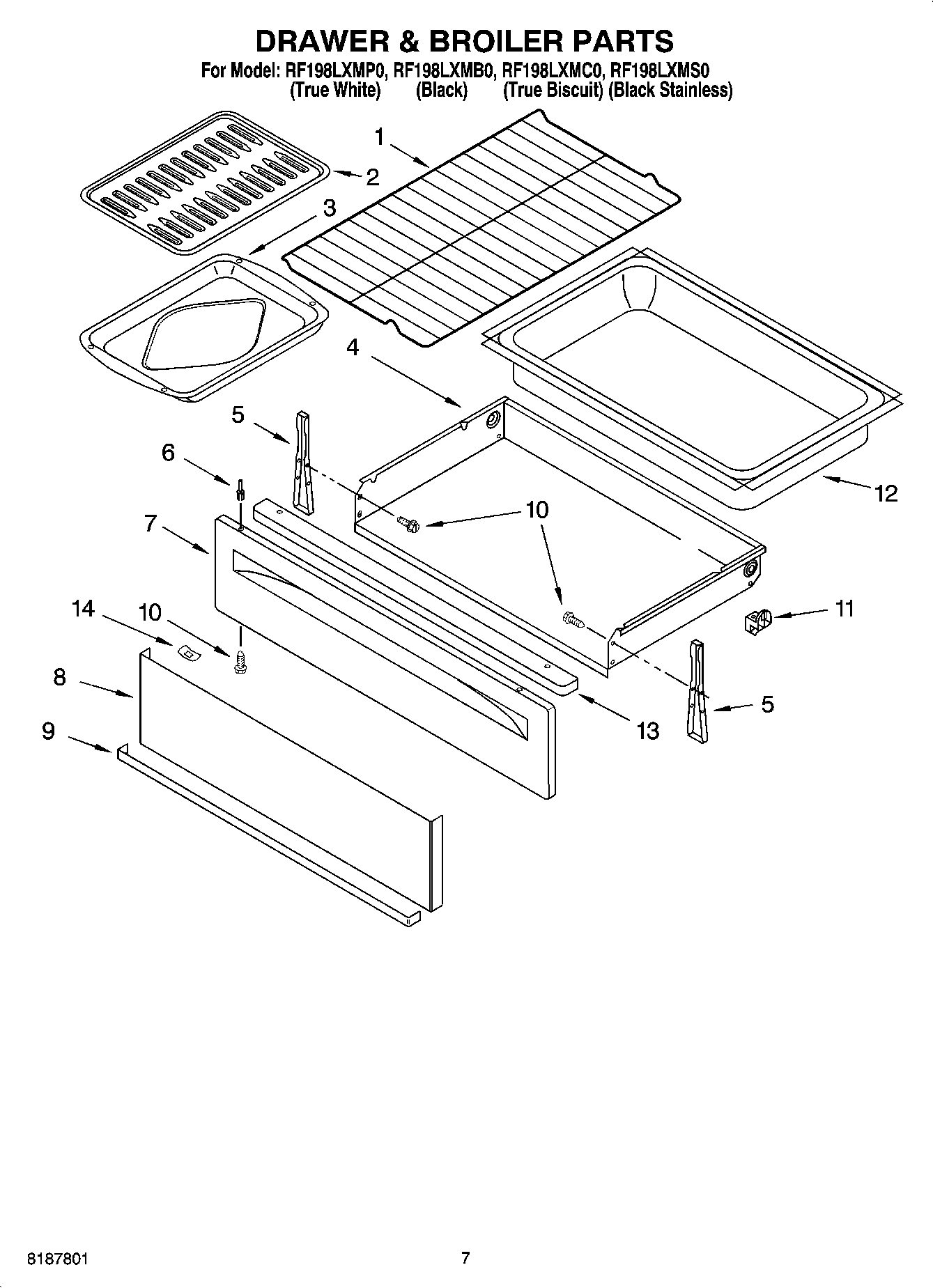

RF198LXMP0 05 – DRAWER & BROILER PARTS, OPTIONAL PARTS

Products

PositionProduct
WPL ARI160129A
WP3196154 Whirlpool Screw Assembly
Grease
3196696 Whirlpool Clip
3184020 Whirlpool Oven Wire
8212471 Whirlpool Oven Paint
W11244557 Whirlpool Screw
8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
WPL 8316781
WPL 8524132
WPL ARI160130A
WPL ARI160128A
WPL ARI160127A
WPL ARI160126A
WPL ARI160125A
WPL ARI160124A
WPL 9756486
WPL 8524112
WPL 8523718
WPL 4454241
WPL 8524070
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
285006 Whirlpool Spray
350942 Whirlpool Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
4392901 Whirlpool Biscuit Spray Paint
511873 Whirlpool Refrigerator Paint
Wire, 25` Roll (Red 14 Ga.)
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
WPL 799832
FOIL, ALUMINUM OVEN (18“ X 25 )
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
242831 Whirlpool Oven Wire
350930 Whirlpool White Spray Paint
Clip, Ground Wire
WPW10208653 Whirlpool Insulation
1WPW10256908 Whirlpool Oven Range Rack
2WP3195996 Whirlpool Pan Grid
3WP3196076 Whirlpool Broil Pan
4Drawer, Storage
5W10838990 Whirlpool Mounting Bracket
6WP3196813 Whirlpool Rivet
6WP3196814 Whirlpool Rivet
63196815 Whirlpool Oven Rivet
7W11219377 Whirlpool Drawer Panel
7W11230476 Whirlpool Drawer Panel
7W11230488 Whirlpool Drawer Panel
8Panel, Stainless
9Bottom, Drawer
10WP3400832 Whirlpool Screw
11WP8053334 Whirlpool Drawer Glide
12Liner, Drawer
13WPL 8053949
14WP9781235 Whirlpool Clip
