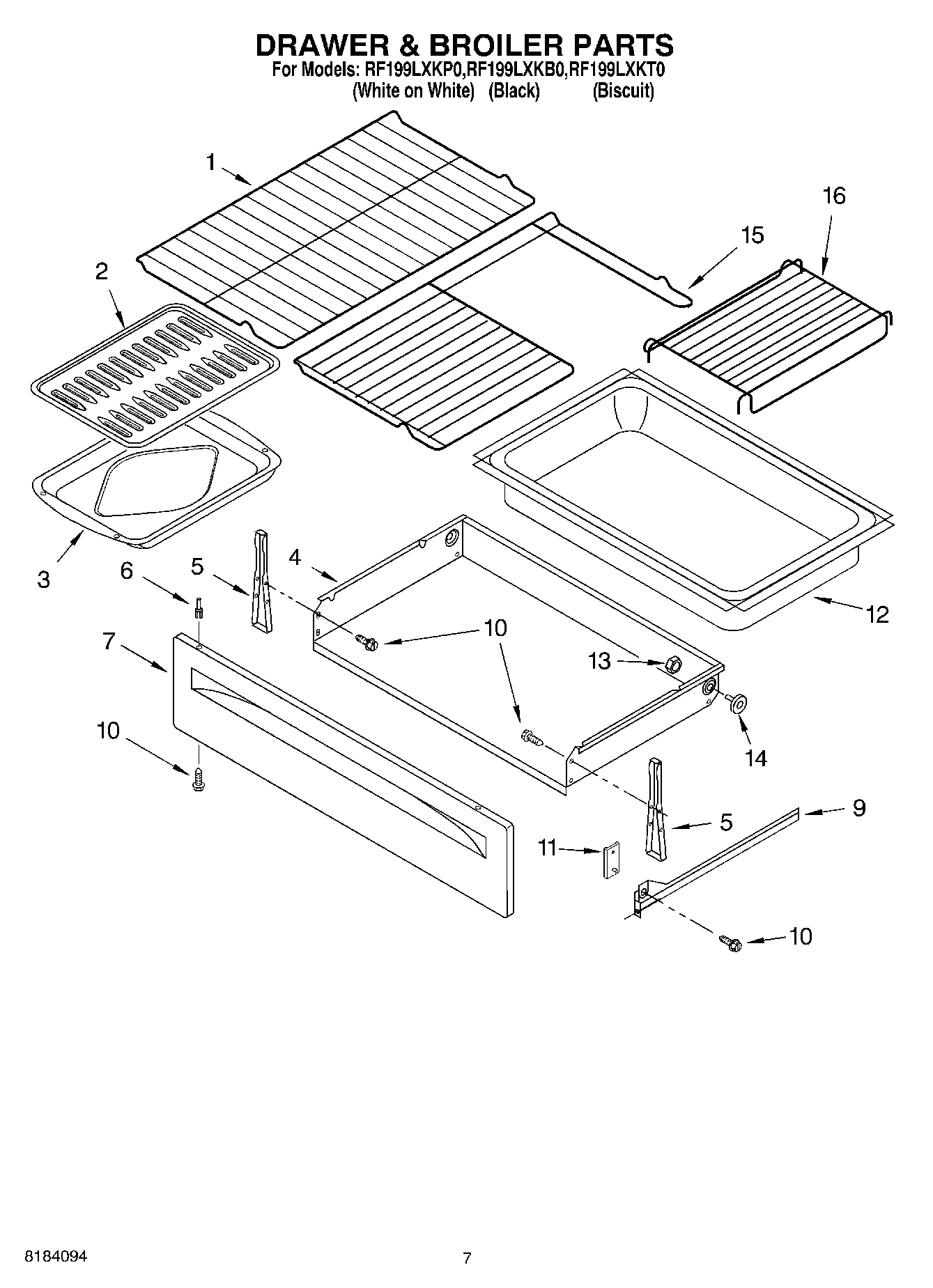

RF199LXKB0 05 – DRAWER & BROILER

RF199LXKB0 05 – DRAWER & BROILER

Written by

in

RF199LXKB0 05 – DRAWER & BROILER

Products

Position	Product
1	WPW10256908 Whirlpool Oven Range Rack
2	WP3195996 Whirlpool Pan Grid
3	WP3196076 Whirlpool Broil Pan
4	Drawer, Storage
5	W10838990 Whirlpool Mounting Bracket
6	WP3196813 Whirlpool Rivet
6	3196815 Whirlpool Oven Rivet
6	WP3196814 Whirlpool Rivet
7	W11230476 Whirlpool Drawer Panel
7	W11219377 Whirlpool Drawer Panel
7	W11230488 Whirlpool Drawer Panel
9	Rail, Drawer (Left Hand)
9	Rail, Drawer (Right Hand)
10	WP3400832 Whirlpool Screw
11	Spacer, Glide
12	Liner, Drawer
13	WP487939 Whirlpool Refrigerator Nut
14	814229 Whirlpool Primary Roller
15	WP8274021 Whirlpool Oven Rack
16	Wire (14 Ga. 150 c Orange)
16	18 Ga. 80~c Rating (Red)
16	Wire (14 Ga. 150 c Yellow)
16	Wire (12 Ga. 150 c Black)
16	Wire (14 Ga. 200 c Brown)
16	WPL 8273000
16	WP8274022 Whirlpool Oven Rack
16	WPL 8053692
16	3196696 Whirlpool Clip
16	WPL 8273266
16	WP3196154 Whirlpool Screw Assembly
16	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
16	Grease
16	3184020 Whirlpool Oven Wire
16	8212471 Whirlpool Oven Paint
16	WPL 8522955
16	1
16	Wire (14 Ga. 150 c Green)
16	Wire (14 Ga. 150 c Brown)
16	Wire (14 Ga. 150 c Blue)
16	WPL 799832
16	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
16	511873 Whirlpool Refrigerator Paint
16	4392901 Whirlpool Biscuit Spray Paint
16	350942 Whirlpool Spray Paint
16	Almond (Uncut)
16	WP72107 Whirlpool Touchup
16	799344 Whirlpool Refrigerator Paint
16	72017 Whirlpool Appliance Touch-Up Paint White
16	350956 Whirlpool Spray Assembly
16	WPW10208653 Whirlpool Insulation
16	FOIL, ALUMINUM OVEN (18“ X 25 )
16	WP3196175 Whirlpool Screw
16	242831 Whirlpool Oven Wire
16	4392899 Whirlpool Biscuit Touch-Up Paint
16	Clip, Ground Wire
16	3400964 Whirlpool Oven Clip
16	814381 Whirlpool Pin
16	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
16	285006 Whirlpool Spray
16	Wire, 25“ Roll (White 14 GA.)
16	Wire, 25` Roll (Red 14 Ga.)
16	Wire, 25` Roll (Black 14 Ga.)
16	350930 Whirlpool White Spray Paint
