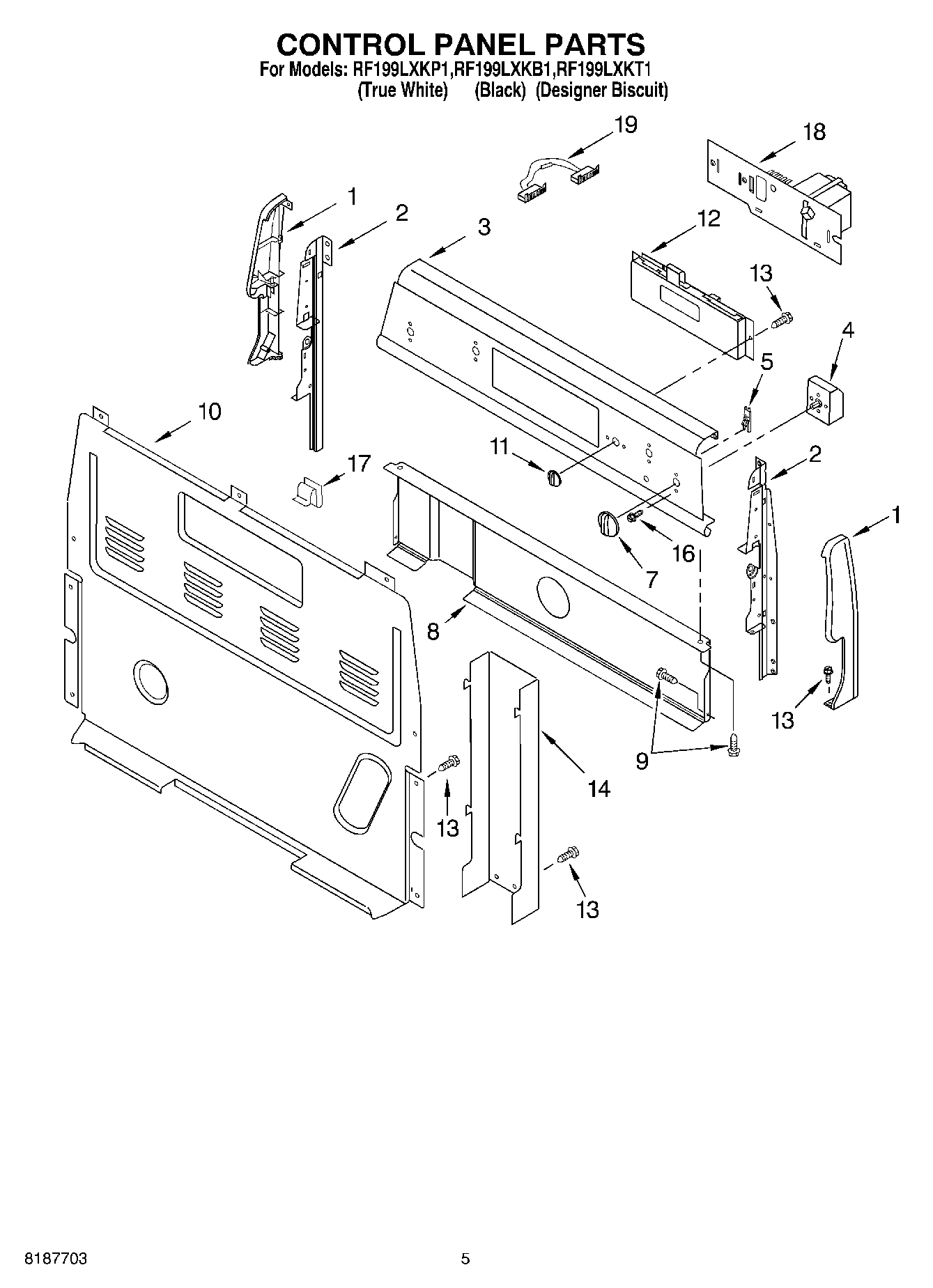

RF199LXKT1 04 – CONTROL PANEL PARTS

Products

PositionProduct
1Endcap (Biscuit Right Hand)
1Endcap (Black Left Hand)
1Endcap (White Left Hand)
1Endcap (White Right Hand)
1Endcap, Right Hand (Black)
1Endcap (Biscuit Left Hand)
2Support, Endcap (Right Hand)
2Support, Endcap (Left Hand)
3Panel, Backguard (White)
3Panel, Backguard (Black)
3Panel, Backguard (Biscuit)
4WP3149404 Whirlpool Oven Surface Element Switch
4Switch, Infinite (Center Rear)
4WP3149400 Whirlpool Oven Infinite Switch
4WP3148952 Whirlpool Oven Infinite Switch
5WP8523265 Whirlpool Indicator Light
7Knob, Control (4) (Biscuit)
7WP8522566 Whirlpool Knob
7WP8522565 Whirlpool Knob
8Shield, Heat
9Screw
10WP8272473 Whirlpool Rear Cover
11Knob, Accusimer (Black)
11Knob, Accusimer (Biscuit)
11Knob, Accusimer (White)
12Control, Range (Biscuit)
12Control, Range (White)
12Control, Range (Black)
13SCREW
14WPW10326122 Whirlpool Black Cover
16WP3400882 Whirlpool Screw
17WP8273564 Whirlpool Clip
18Power Supply, PCA
19Jumper w/ Fuse
