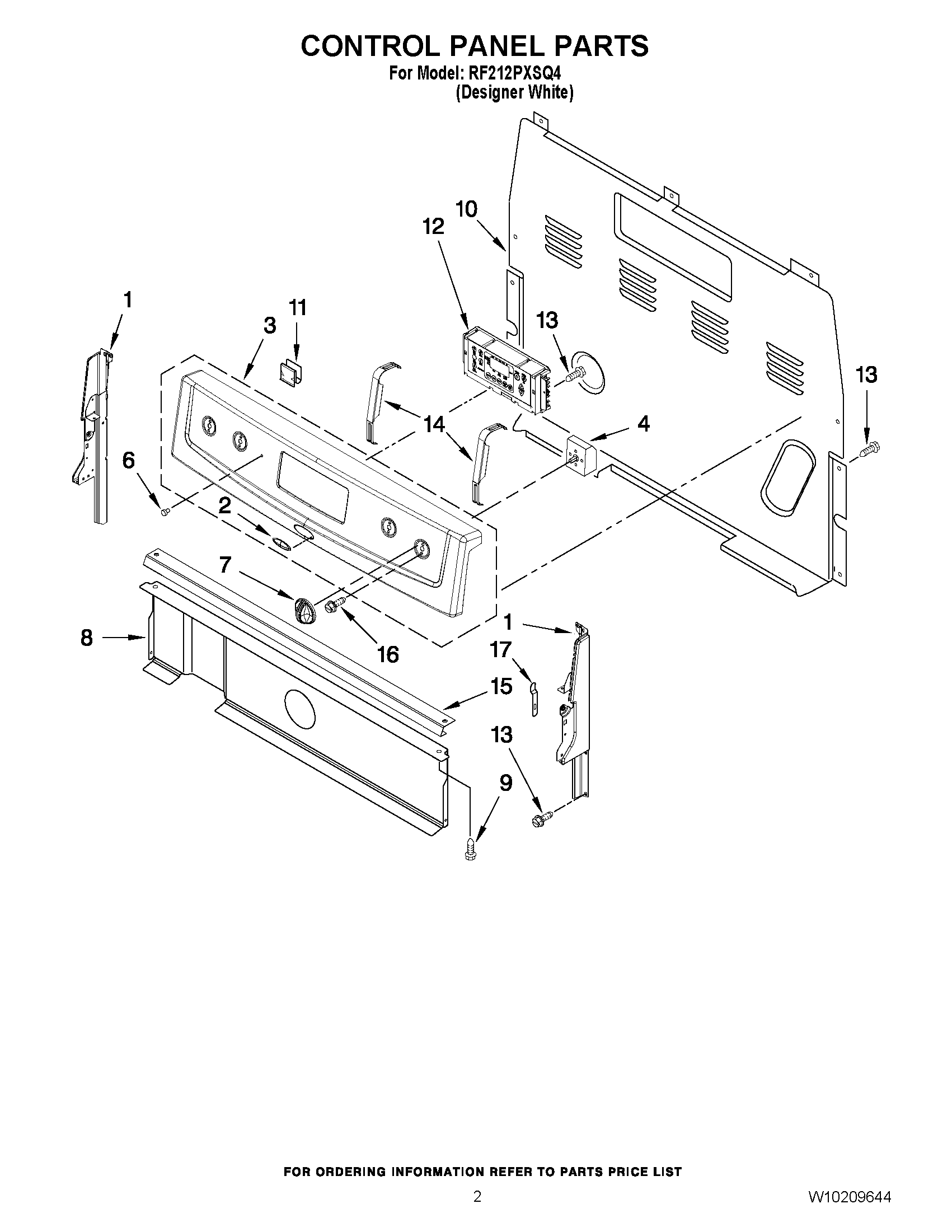

RF212PXSQ4 02 – CONTROL PANEL PARTS

RF212PXSQ4 02 – CONTROL PANEL PARTS

Written by

in

RF212PXSQ4 02 – CONTROL PANEL PARTS

Products

PositionProduct
1W11219365 Whirlpool Panel Endcap
1W11219370 Whirlpool Endcap Panel
2Nameplate
3Panel, Backguard (White)
4WP3148952 Whirlpool Oven Infinite Switch
4SWITCH-INF
6WP3196068 Whirlpool Light Lens
7WP9761962 Whirlpool Range Stove Burner Control Knob
8W10134247 Whirlpool Heat Shield
93196166 Whirlpool Screw
10WP8272473 Whirlpool Rear Cover
11WP8273564 Whirlpool Clip
12WPW10476684 Whirlpool Electronic Control Board + Core
13SCREW
14BRACKET, MOUNTING EOC
15W10525121 Whirlpool Control Bracket
16WP3400882 Whirlpool Screw
173196200 Whirlpool Clip
