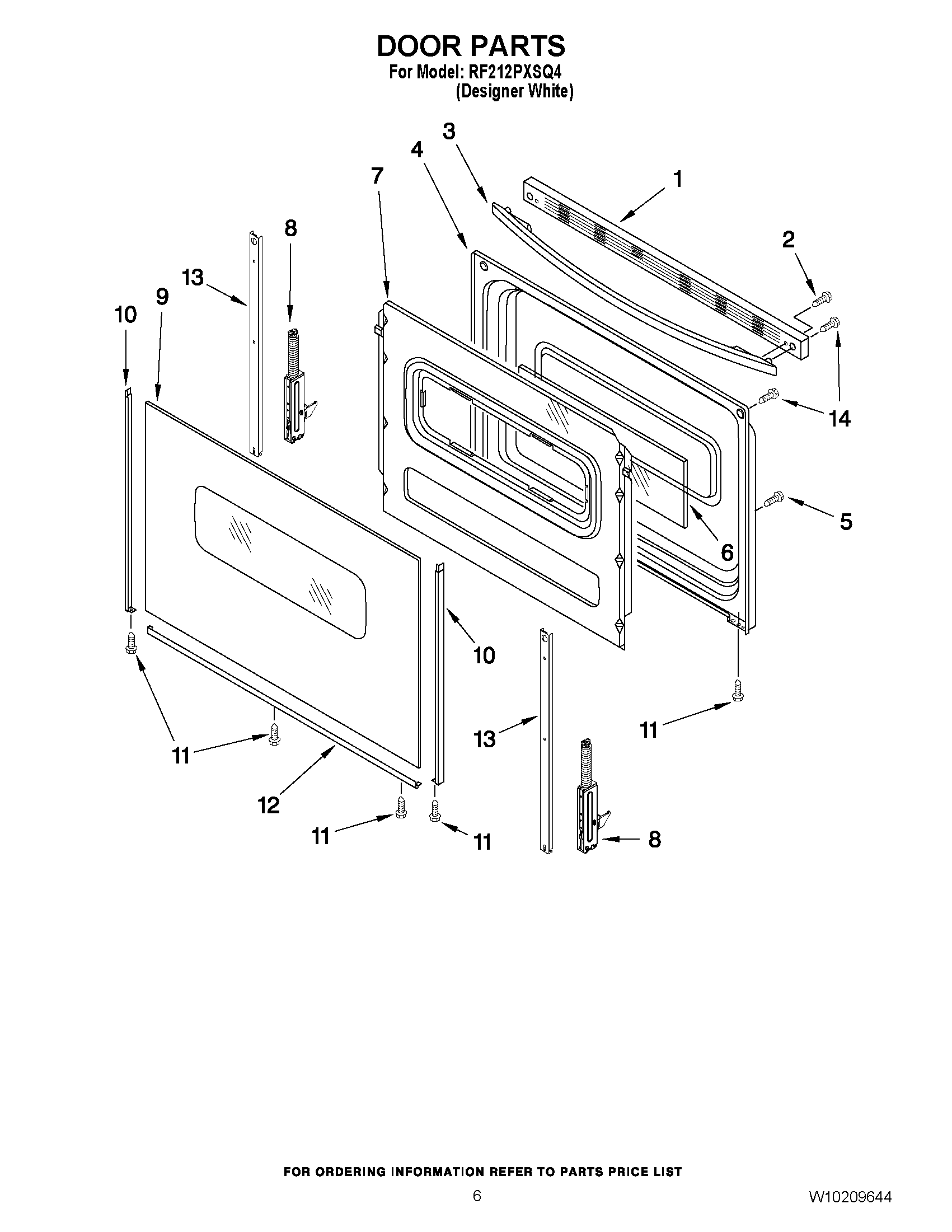

RF212PXSQ4 05 – DOOR PARTS

RF212PXSQ4 05 – DOOR PARTS

Written by

in

RF212PXSQ4 05 – DOOR PARTS

Products

PositionProduct
1W10817433 Whirlpool Vent Trim
2WPW10200660 Whirlpool Range Oven Door Handle Screw
3W10817434 Whirlpool Door Handle
49761340 Whirlpool Oven Door Liner
5W10817436 Whirlpool Screw
6WP9758163 Whirlpool Door Glass Assembly
79761500 Whirlpool Oven Retainer
8W10347465 Whirlpool Door Hinge
9WP9762476 Whirlpool Door Glass
10WP8523172 Whirlpool Left Door Trim
10WP8523166 Whirlpool Door Trim
11W10491985 Whirlpool Screw
12WP8523175 Whirlpool Door Trim Assembly
13W11502236 Whirlpool Door Trim
14W10777162 Whirlpool Screw
