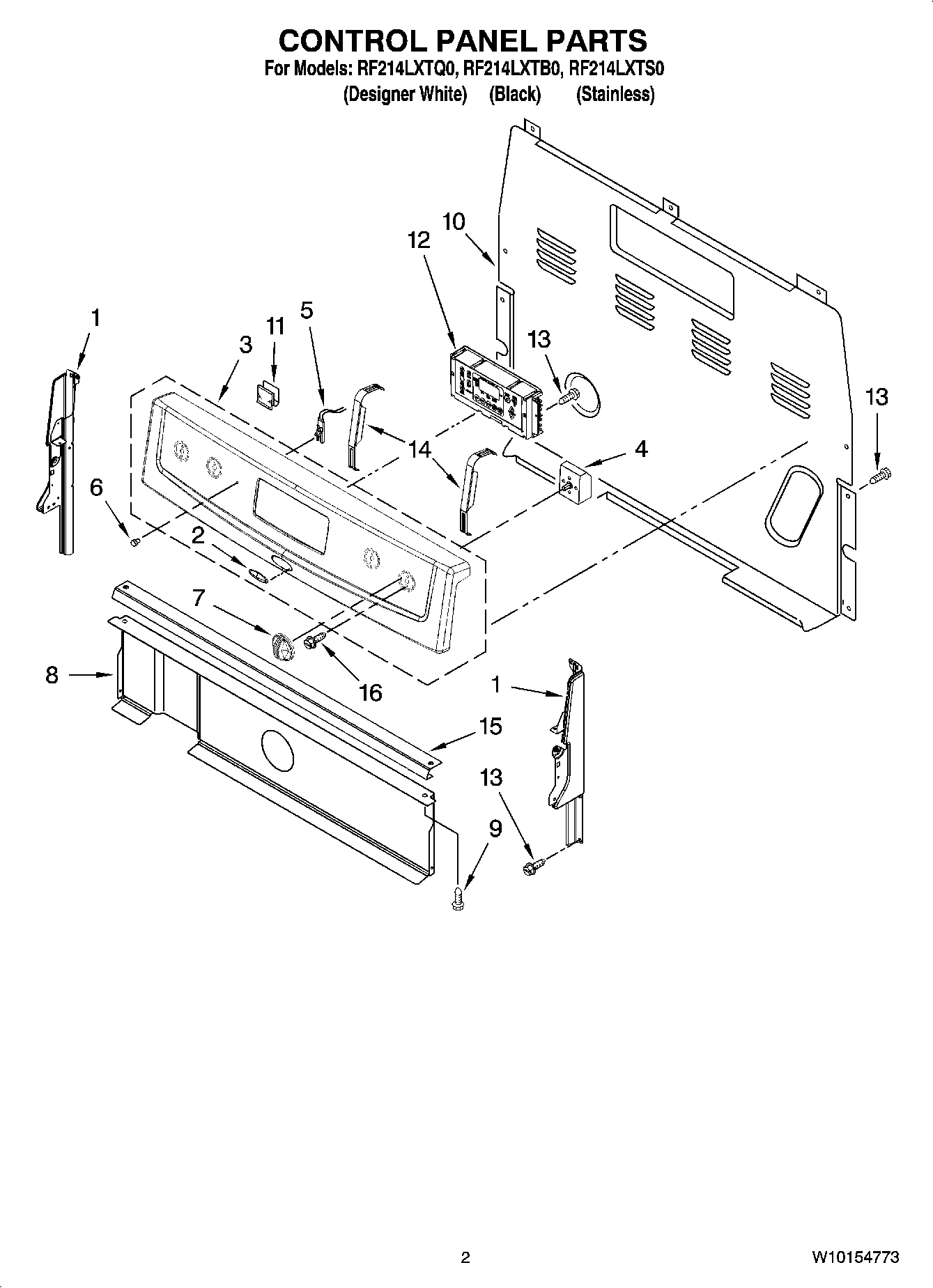

RF214LXTQ0 02 – CONTROL PANEL PARTS

RF214LXTQ0 02 – CONTROL PANEL PARTS

Written by

in

RF214LXTQ0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1W11219365 Whirlpool Panel Endcap
1W11219370 Whirlpool Endcap Panel
1W11219665 Whirlpool Panel Endcap
1W11219664 Whirlpool Endcap Panel
2Nameplate
3Panel, Console (White)
3Panel, Backguard (Black)
3Panel, Control
4WP3148952 Whirlpool Oven Infinite Switch
4SWITCH-INF
5WP8523265 Whirlpool Indicator Light
6WP3196068 Whirlpool Light Lens
7WP9761964 Whirlpool Knob
7WP9761962 Whirlpool Range Stove Burner Control Knob
8Shield, Heat
93196166 Whirlpool Screw
10WP8272473 Whirlpool Rear Cover
11WP8273564 Whirlpool Clip
12WPW10108290 Whirlpool Electronic Control Board
13SCREW
14BRACKET, MOUNTING EOC
15Bracket, Console
16WP3400882 Whirlpool Screw
