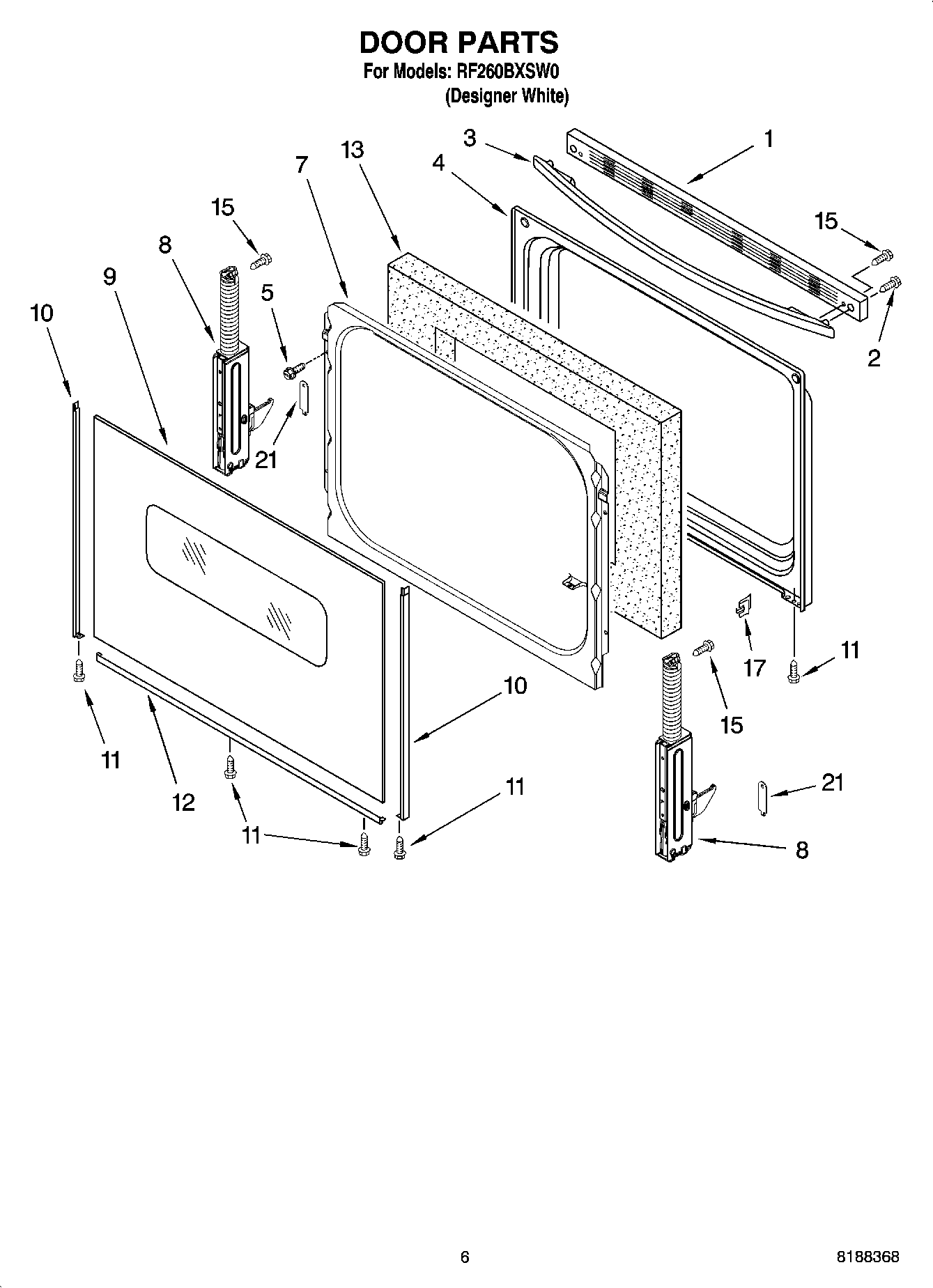

RF260BXSW0 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

RF260BXSW0 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

RF260BXSW0 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
WPL ARI121696A
3184020 Whirlpool Oven Wire
8212471 Whirlpool Oven Paint
W11244557 Whirlpool Screw
WP3196174 Whirlpool Screw
WP3196154 Whirlpool Screw Assembly
Wire (14 Ga. 200 c Brown)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Grease
WP308605 Whirlpool Refrigerator Clamp
W11396691 Whirlpool Element Receptacle and Wire Kit
WPL ARI121695A
WPL ARI121694A
WPL ARI121693A
WPL ARI121692A
WPL ARI121691A
WPL ARI121690A
WPL 9762952
WPL 9762428
WPL ARI121697A
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
Wire, 25` Roll (Red 14 Ga.)
4396923 Whirlpool Broil Pan Set Gray Porcelain
WP72107 Whirlpool Touchup
Almond (Uncut)
350942 Whirlpool Spray Paint
FOIL, ALUMINUM OVEN (18“ X 25 )
511873 Whirlpool Refrigerator Paint
WPW10208653 Whirlpool Insulation
285006 Whirlpool Spray
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
242831 Whirlpool Oven Wire
Clip, Ground Wire
350930 Whirlpool White Spray Paint
350956 Whirlpool Spray Assembly
72017 Whirlpool Appliance Touch-Up Paint White
W11447673 Whirlpool Range Tip Anchor
799344 Whirlpool Refrigerator Paint
814381 Whirlpool Pin
WPL 799832
1WP9762391 Whirlpool Door Trim Assembly
2WP3196164 Whirlpool Screw
3Handle, Door (Black)
49761342 Whirlpool Oven Door Liner
5WPW10031790 Whirlpool Screw
7W11699790 Whirlpool Retainer
8W10347465 Whirlpool Door Hinge
9Glass, Door (Black)
10W10761018 Whirlpool Dishwasher Left Door Trim
10W10761014 Whirlpool Right Door Trim
11W10491985 Whirlpool Screw
12WP8523177 Whirlpool Door Trim Assembly
13WPW10278991 Whirlpool Insulation
15W10777162 Whirlpool Screw
17Clip, Glass (4)
219761517 Whirlpool Oven Clip Assembly
