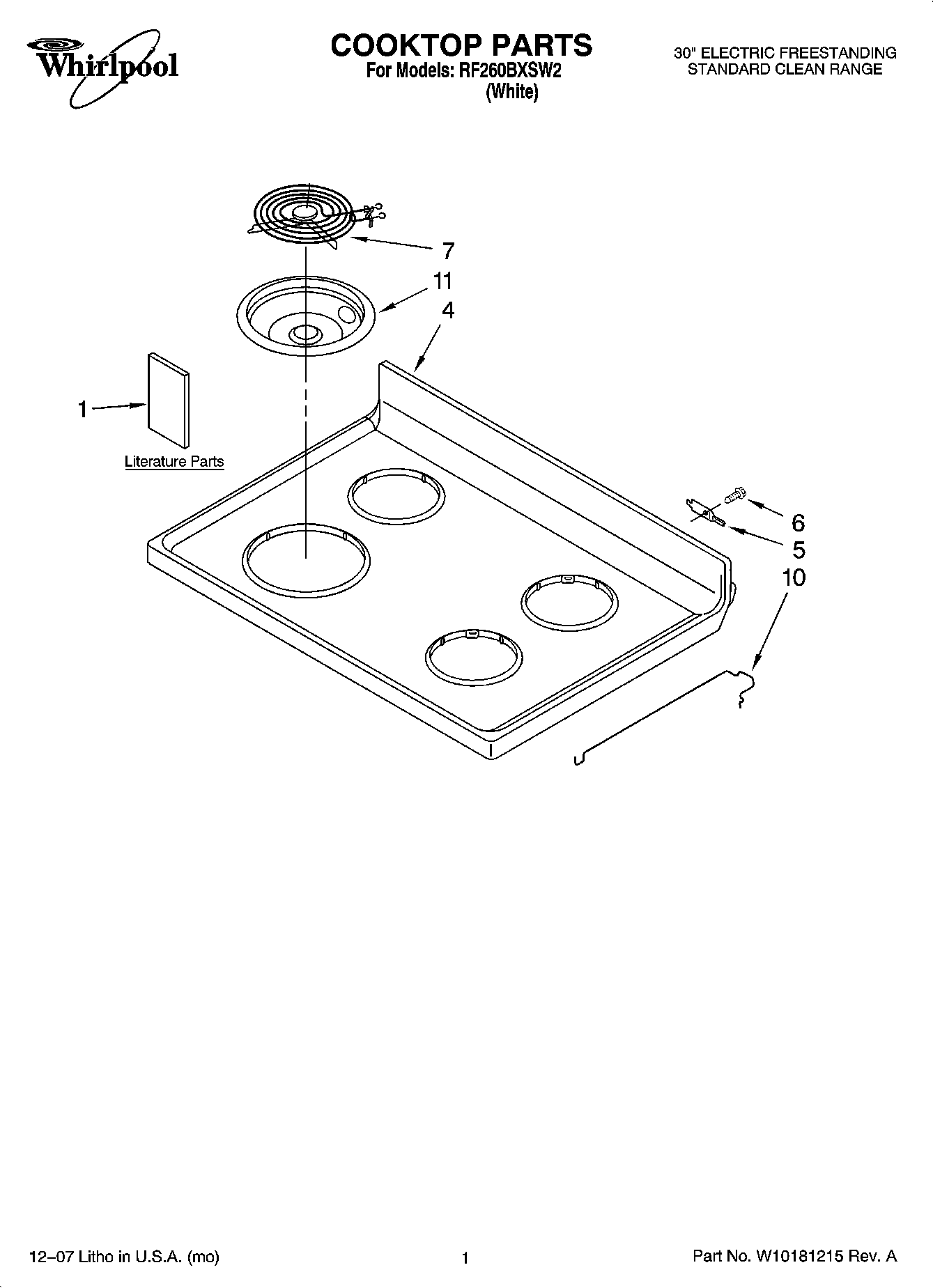

RF260BXSW2 01 – COOKTOP PARTS

RF260BXSW2 01 – COOKTOP PARTS

Written by

in

RF260BXSW2 01 – COOKTOP PARTS

Products

PositionProduct
1Tech Sheet
1Owners Manual
1SAFER COOKING TIPS (ENGLISH
1Anti-Tip Template (English/Spanish)
1Anti-Tip Template (English/French)
1Installation Instructions
4Cooktop (White)
5WP3195060 Whirlpool Cooktop Pin
6SCREW
7WPW10345407 Whirlpool Surface Element
7WP9761346 Whirlpool Stove Surface Burner Element
10WP3195812 Whirlpool Cooktop Rod
11WPW10196406 Whirlpool 6" Chrome Drip Bowl
11DRIP BOWL 8" W/HOLE CHROME
