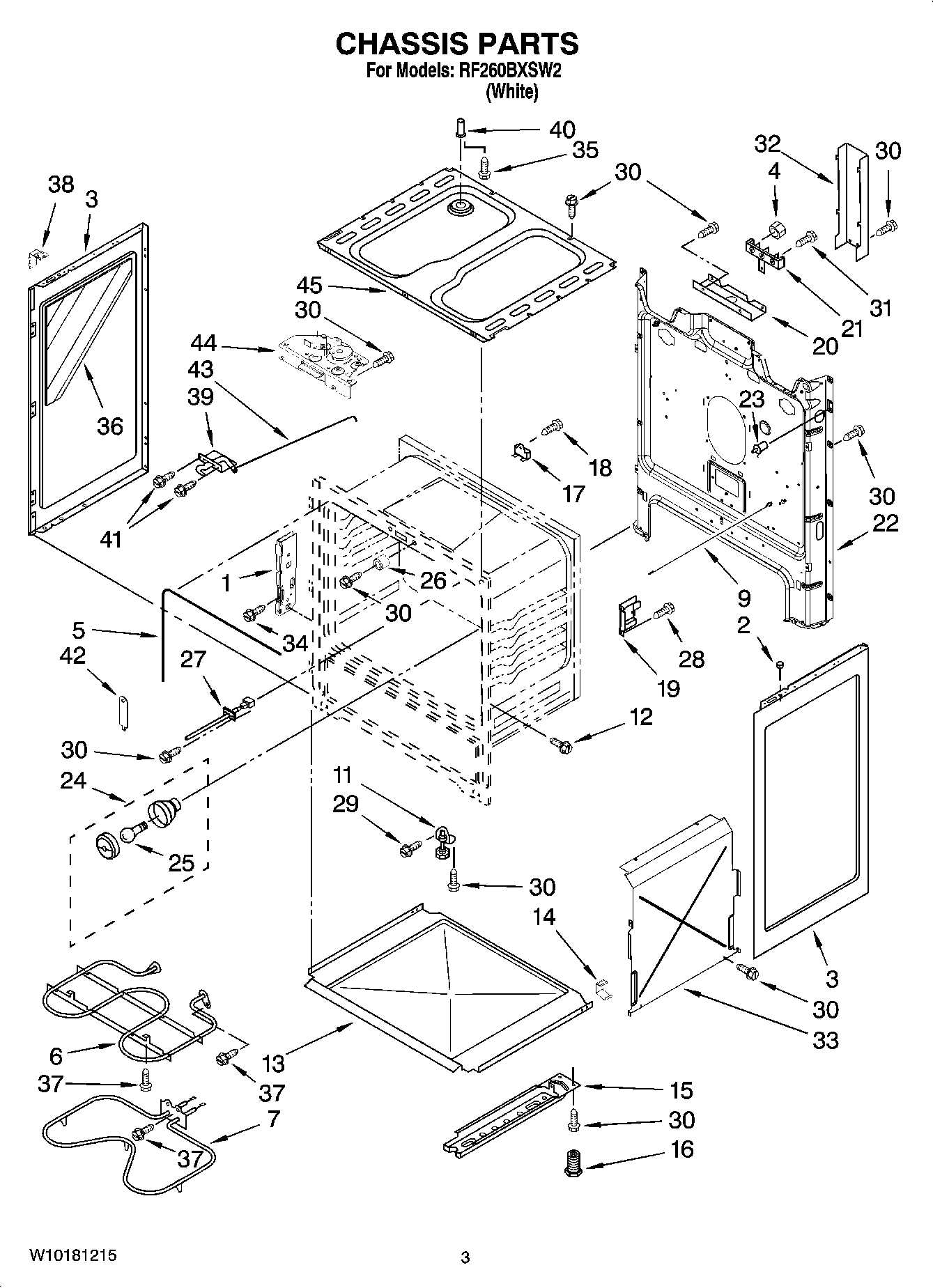

RF260BXSW2 03 – CHASSIS PARTS

Products

Position	Product
1	W10647259 Whirlpool Hinge Receiver
2	238614 Whirlpool Bumper Hinge
3	WPW10575396 Whirlpool Side Panel
4	WP112432 Whirlpool Nut Assembly
5	W11542153 Whirlpool Door Gasket
6	W10856603 Whirlpool Broil Element
7	WPW10308477 Whirlpool Bake Element
9	9757239 Whirlpool Oven Door Rod
11	WP3196037 Whirlpool Leveling Foot
12	WPW10067840 Whirlpool Screw
13	WP8054068 Whirlpool Retainer
14	Clip, Panel (6)
15	WPW10306546 Whirlpool Base Rail
16	WPW10058460 Whirlpool Appliance Levelling Leg
17	WP3196548 Whirlpool Thermal Fuse
18	3196172 Whirlpool Oven Screw
19	W10404688 Whirlpool Bracket Support
20	W11728255 Whirlpool Service Bracket
21	WP9761958 Whirlpool Range Terminal Block
22	Back, Main
23	WP9757262 Whirlpool Light Switch
24	W11594027 Whirlpool Range Oven Light Socket
25	RANGE ONLY 40W 120V APPL BULB
26	W10877054 Whirlpool Spacer Assembly
27	WPW10181986 Whirlpool Oven Sensor
28	WP3196557 Whirlpool Screw
29	Screw
30	SCREW
31	WP3400016 Whirlpool Screw Assembly
32	WPW10326122 Whirlpool Black Cover
33	W10450380 Whirlpool Retainer
34	W10777162 Whirlpool Screw
35	WP3196567 Whirlpool Screw
36	Insulation
37	WP3196174 Whirlpool Screw
38	Clip, Mounting
39	WP9761013 Whirlpool Door Latch
40	9755804 Whirlpool Oven Vent Tube
41	W11169708 Whirlpool Screw
42	9761517 Whirlpool Oven Clip Assembly
43	Rod, Latch
44	WPW10107820 Whirlpool Door Latch
45	WP8272612 Whirlpool Insulation
45	W11699791 Whirlpool Burner Box
45	WPW10208653 Whirlpool Insulation
45	Insulation
