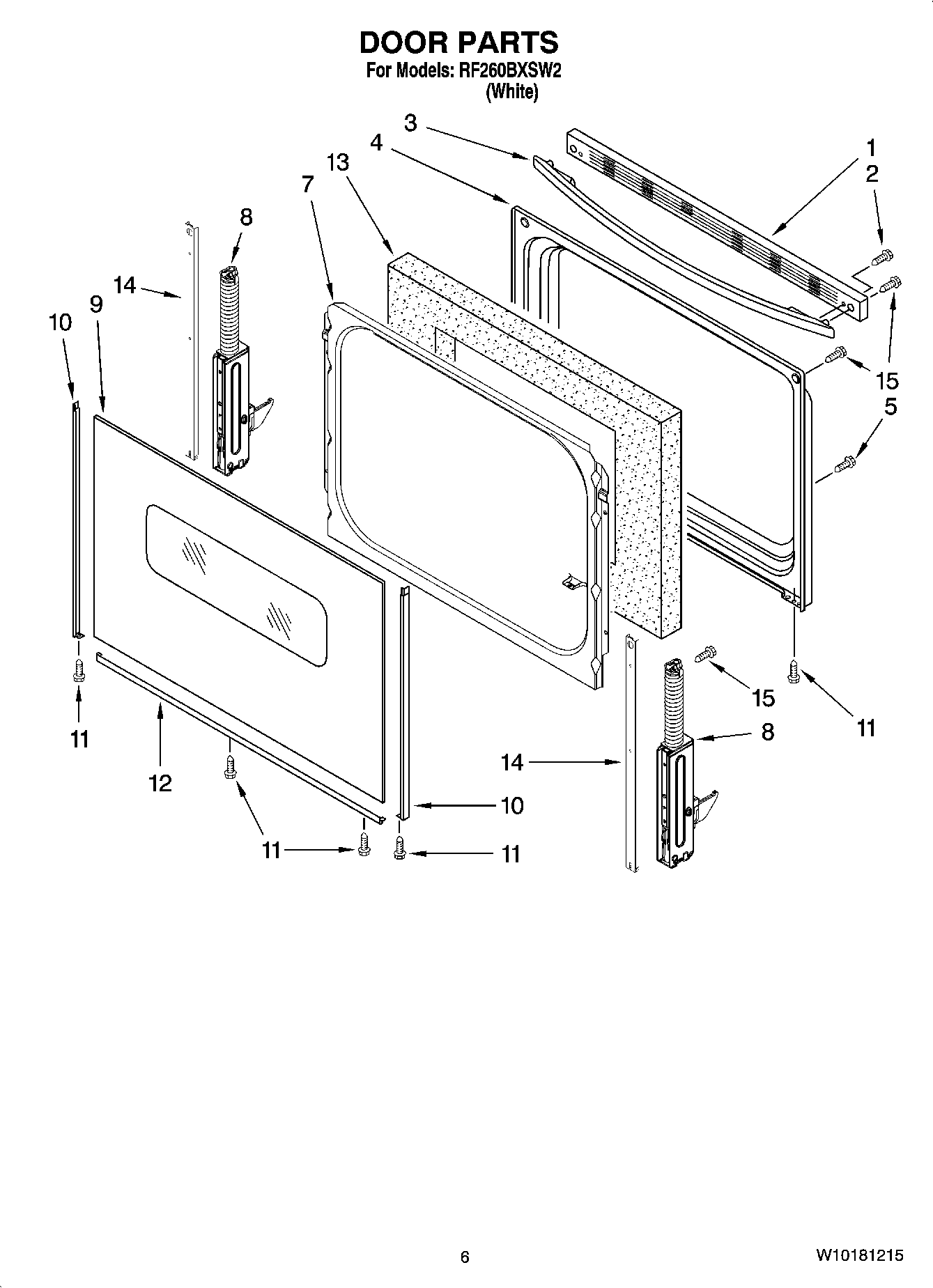

RF260BXSW2 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

RF260BXSW2 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

RF260BXSW2 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
WPL ARI121715A
WP3196174 Whirlpool Screw
WPL ARI121710A
WPL ARI121711A
Wire (14 Ga. 200 c Brown)
WPL ARI121712A
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
W11244557 Whirlpool Screw
8212471 Whirlpool Oven Paint
W11396691 Whirlpool Element Receptacle and Wire Kit
W11172524 Whirlpool Wire Harness
WP308605 Whirlpool Refrigerator Clamp
W10251772 Whirlpool Wire Harness
WPL ARI121709A
WP3196154 Whirlpool Screw Assembly
Grease
3184020 Whirlpool Oven Wire
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Blue)
242831 Whirlpool Oven Wire
350942 Whirlpool Spray Paint
Almond (Uncut)
WPL ARI121714A
WP72107 Whirlpool Touchup
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
350956 Whirlpool Spray Assembly
350930 Whirlpool White Spray Paint
511873 Whirlpool Refrigerator Paint
WPL 799832
WPW10208653 Whirlpool Insulation
Clip, Ground Wire
WPL ARI121713A
W11447673 Whirlpool Range Tip Anchor
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
285006 Whirlpool Spray
Wire, 25` Roll (Red 14 Ga.)
4396923 Whirlpool Broil Pan Set Gray Porcelain
FOIL, ALUMINUM OVEN (18“ X 25 )
1WP9762391 Whirlpool Door Trim Assembly
2WP3196164 Whirlpool Screw
3Handle, Door (Black)
49761342 Whirlpool Oven Door Liner
5WPW10031790 Whirlpool Screw
7W11699790 Whirlpool Retainer
8W10347465 Whirlpool Door Hinge
9Glass, Door (Black)
10W10761014 Whirlpool Right Door Trim
10W10761018 Whirlpool Dishwasher Left Door Trim
11W10491985 Whirlpool Screw
12WP8523177 Whirlpool Door Trim Assembly
13WPW10278991 Whirlpool Insulation
14W11502236 Whirlpool Door Trim
15W10777162 Whirlpool Screw
